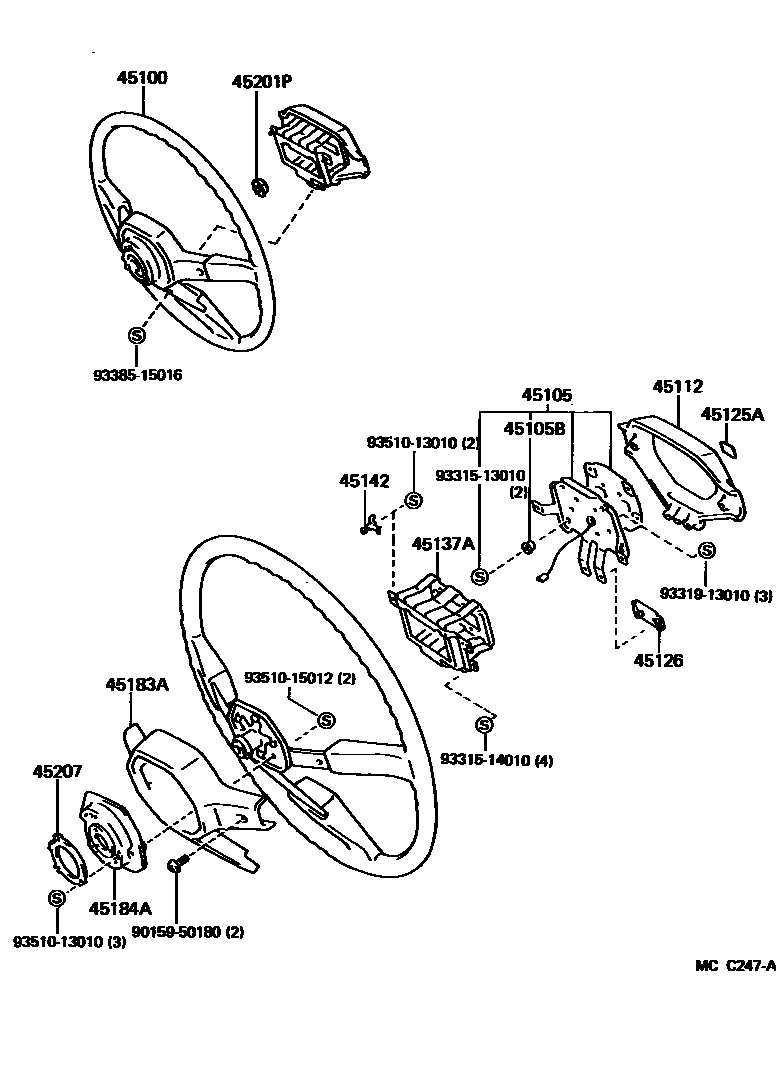

STEERING WHEEL
45100WHEEL ASSY, STEERING
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/CRUISE CONTROL,RED,RED,TRIM3#
W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY,TRIM1#
W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE,TRIM8#
W/CRUISE CONTROL,BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,W/CRUISE CONTROL,RED,TRIM3#
SHADOW GRAY,W/CRUISE CONTROL,SHADOW GRAY,TRIM1#
DEEP BLUE,W/CRUISE CONTROL,DEEP BLUE,TRIM8#
BROWN,W/CRUISE CONTROL,BROWN,TRIM4#
LEATHER,RED,RED,TRIM3#
LEATHER,SHADOW GRAY,SHADOW GRAY,TRIM1#
LEATHER,DEEP BLUE,DEEP BLUE,TRIM8#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
W/CRUISE CONTROL
W/CRUISE CONTROL
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45112PAD, STEERING WHEEL
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
45125AMARK, HORN
RED,RED,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
DEEP BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
45126PLATE, STEERING WHEEL PAD SET
45137APLATE, HORN BUTTON CONTACT, NO.2
45142SEAT, HORN BUTTON CONTACT, NO.1
45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1
RED,RED,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DEEP BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/CRUISE CONTROL,RED,RED,TRIM3#
W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY,TRIM1#
W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE,TRIM8#
W/CRUISE CONTROL,BROWN,BROWN,TRIM4#
45184ACOVER, STEERING WHEEL BOSS, LOWER NO.2
W/CRUISE CONTROL
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9015950180
main90159-50180
9331513010
main93315-13010
9331514010
main93315-14010
9331913010
main93319-13010
9338515016
main93385-15016
9351013010
main93510-13010
9351015012
main93510-15012
19 parts on this diagram · 5 diagrams in section
