DISTRIBUTOR

0001 1 0002 1 0003 1

1901

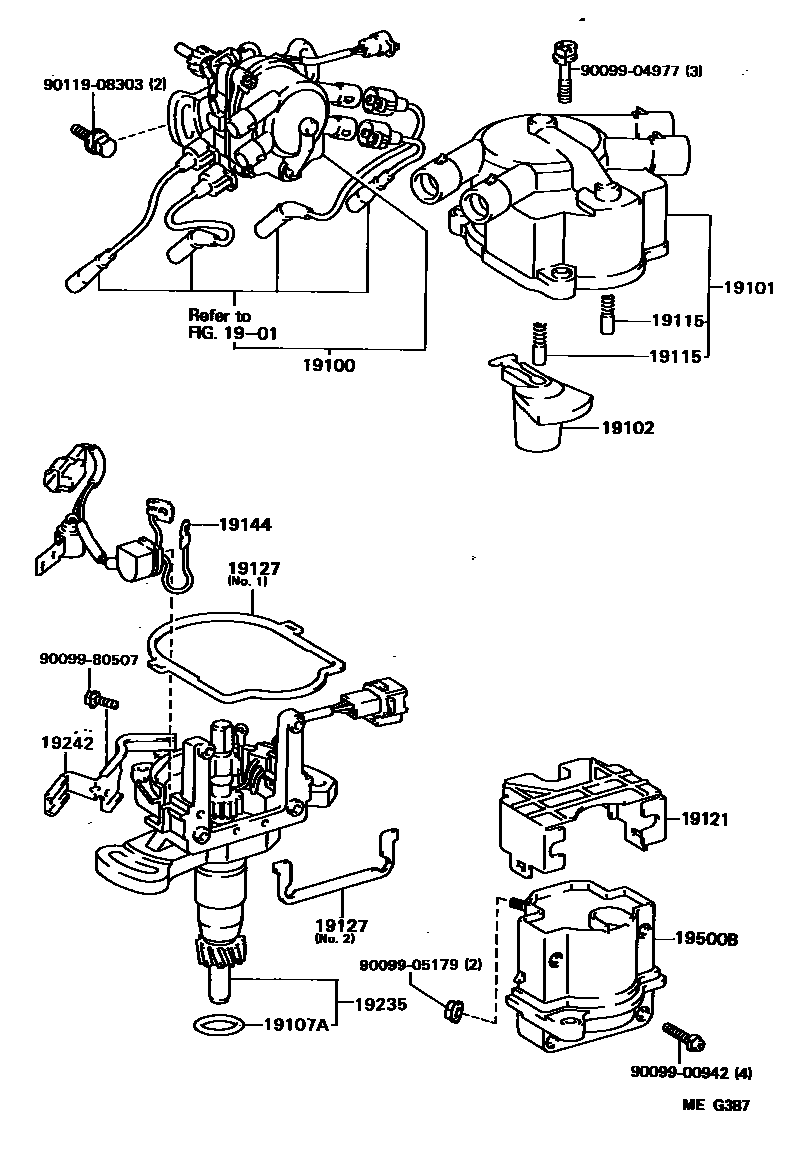

19100DISTRIBUTOR ASSY

main19040-74010i2SELC..ST161198508-198608

main19040-74030i3SFE..ST162198608-198708

sub19040-74031

main19100-88362i3SGELC..ST162198508-198708

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-63011i2SELC..ST161198508-198608

main19101-74030i3SFE..ST162198608-198708

sub19101-74031

main19101-88360i3SGELC..ST162198508-198708

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE..ST162198608-198708

sub19102-11370

main19102-16020i3SGELC..ST162198508-198601

main19102-16060i2SELC..ST161198601-198608

sub19102-73180

main19102-35160i2SELC..ST161198508-198601

main19102-73020i3SGELC..ST162198601-198607

main19102-73021i3SGELC..ST162198607-198708

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i2SELC,3SGELC..ST16#198508-198708

sub90099-14090

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i3SGELC..ST162198508-198708

main19115-63010×2i3SFE..ST162198608-198708

main19115-71010×2i2SELC..ST161198508-198608

19121COVER, DUST PROOF

main19121-16040×2i3SGELC..ST162198508-198708

main19121-63040i2SELC..ST161198508-198608

19127PACKING, DUST PROOF

main19127-15021i3SGELC..ST162198508-198708

main19127-63010i3SFE..ST162198608-198708

NO.1

main19127-63020i3SFE..ST162198608-198708

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-63070i2SELC..ST161198508-198608

main19144-74040i3SFE..ST162198608-198708

sub19144-74060

19235HOUSING, DISTRIBUTOR

main19235-63090i2SELC..ST161198508-198608

main19235-74020i3SFE..ST162198608-198708

19242CLAMP, CORD

main19242-74010i2SELC..ST161198508-198608

main19242-74020i3SFE..ST162198608-198708

NO.1

main19242-74030i3SFE..ST162198608-198708

NO.2

main19242-88361i3SGELC..ST162198508-198708

19500BCOIL ASSY, IGNITION

main90919-02135i2SELC,3SFE..ST16#198508-198708

9009900942

main90099-00942

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908303

main90119-08303

17 parts on this diagram · 3 diagrams in section
