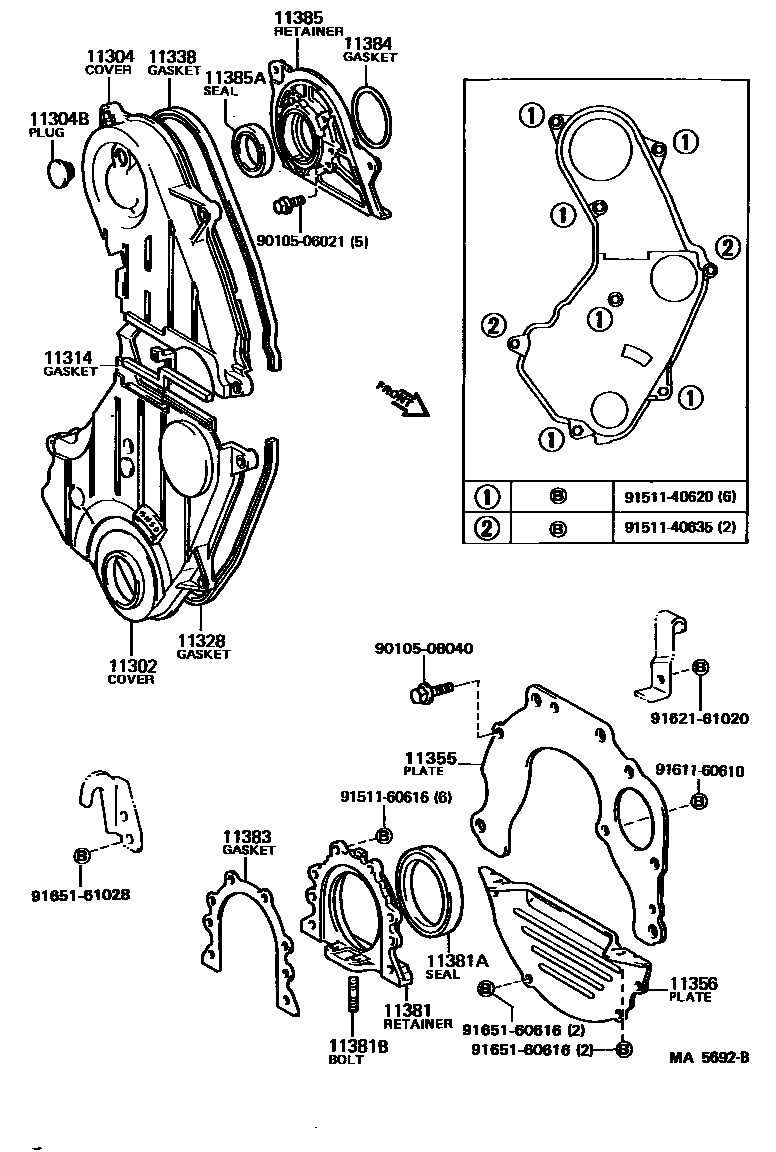

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=76
OD=33,OD=34
OD=76,OD=76
11314GASKET, TIMING CHAIN NO.2 COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11338GASKET, TIMING CHAIN COVER, NO.2
11355PLATE, REAR END
11356PLATE, REAR END, NO.2
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
11383GASKET, ENGINE REAR OIL SEAL RETAINER
11384GASKET, OIL SEAL RETAINER, NO.2
11385RETAINER, CAMSHAFT OIL SEAL
11385ASEAL, OIL(FOR CAMSHAFT)
9010506021
main90105-06021
9010508040
main90105-08040
9151140620
main91511-40620
9151140635
main91511-40635
9151160616
main91511-60616
9161160610
main91611-60610
9162161020
main91621-61020
9165160616
main91651-60616
9165161028
main91651-61028
24 parts on this diagram · 3 diagrams in section
