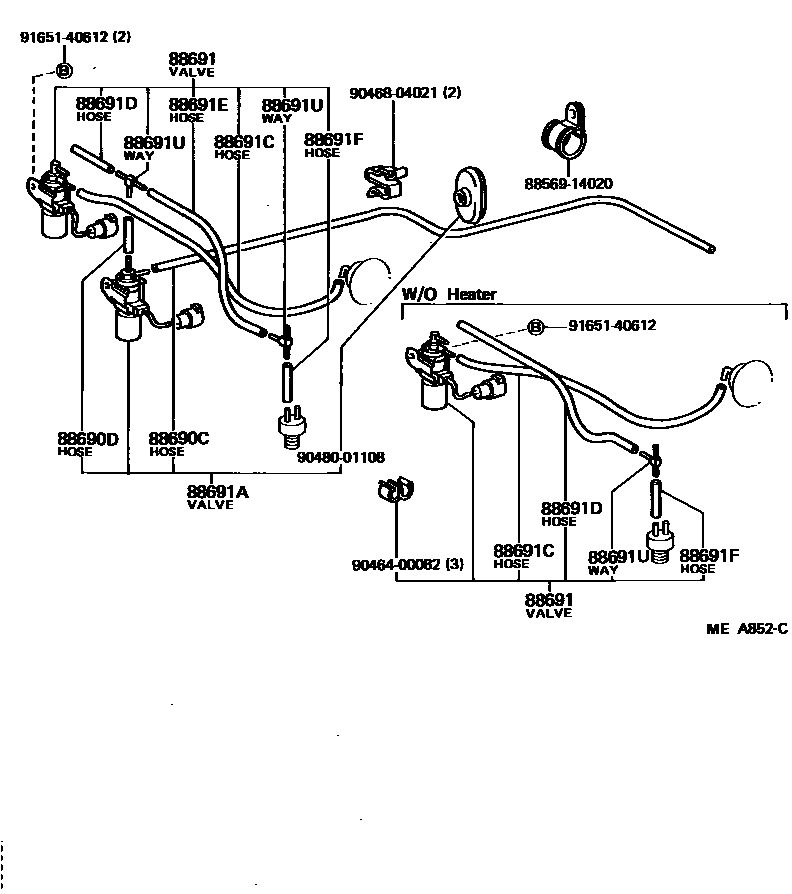

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iRA6#..EFI..USA198208-198507

*H,L=220,MARK=#1

main95411-10260iMA61198108-198512

*H,L=360,MARK=#2

main95411-19995iRA64..CBR..USA198108-198308

*H,L=950,MARK=#*

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main95411-10030iRA6#..EFI..USA198208-198507

*H,L=220,MARK=#0

main95411-10395iMA61198108-198512

*H,L=750

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-14570iRA64..CBR..USA198108-198308

main88690-14590iRA64..CBR..USA198108-198308

W/BOOST VENTILATOR

main88690-14600iMA61198108-198208

main88690-14730iRA6#..EFI..USA198208-198507

88691AVALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)

main88690-14580iRA64..CBR..USA198108-198308

main88690-14610iMA61198108-198512

main88690-14740iRA6#..EFI..USA198208-198507

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-24020iMA61198108-198111

main88689-24021iMA61198111-198208

main95411-10160iRA64..CBR..USA198108-198308

*H,L=360,MARK=#1

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main95411-10030iRA64..CBR..USA198108-198308

*H,L=120,MARK=#0

main95411-10060iMA61198108-198208

*H,L=330,MARK=#0

88691EHOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

main95411-10030iRA64..CBR..USA198108-198308

*H,L=260,MARK=#0

main95411-19960iMA61198108-198208

*H,L=390,MARK=#*

88691FHOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

main95411-10030iRA64..CBR..USA198108-198308

*H,L=50,MARK=#0

88691UWAY(FOR VACUUM HOSE)

main90413-04005×2iMA61;RA64..CBR..USA198108-198512

3-WAY

main90414-04002iMA61198108-198512

4-WAY

8856914020CLAMP (FOR COOLER RELAY)

main88569-14020

9046400082

main90464-00082

9046804021

main90468-04021

9048001108

main90480-01108

9165140612

main91651-40612

14 parts on this diagram · 3 diagrams in section
