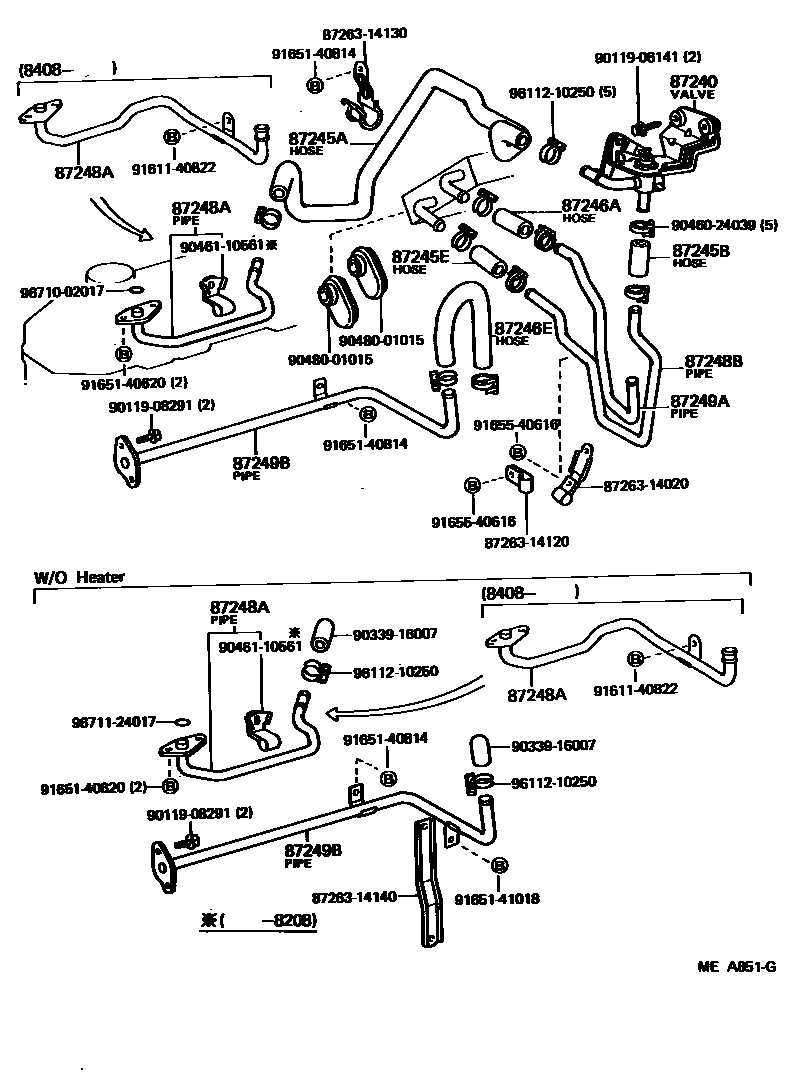

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-14120iRA6#198108-198507

main88670-14050iMA61198108-198512

87245AHOSE, HEATER WATER, INLET A

main87245-14890iRA6#198208-198507

main87245-1B010iRA64198108-198208

main87245-1B020iMA61198108-198512

87245BHOSE, HEATER WATER, INLET B

main99552-30100iRA6#198108-198507

*H,L=55

87245EHOSE, HEATER WATER, INLET E

main87245-14760iMA61198108-198512

main87245-1B060iRA6#..EFI198208-198507

main99552-30100iRA64..CBR198108-198308

*H,L=55

87246AHOSE, HEATER WATER, OUTLET A

main87245-1B030iMA61198108-198512

main99552-30100iRA6#198108-198305

*H,L=55

main99556-30055iRA6#198305-198507

*H,L=55

87246EHOSE, HEATER WATER, OUTLET E

main87245-14880iRA64..CBR198108-198308

main87245-1B070iMA61198108-198512

main87245-1B090iRA6#..EFI198208-198507

87248APIPE, HEATER WATER INLET, A

main87208-14090iRA64198108-198208

main87208-14160iRA64..CBR198208-198308

main87208-14210iRA6#..EFI198208-198408

main87208-14280iRA6#198408-198507

87248BPIPE, HEATER WATER INLET, B

main87248-14160iRA6#..EFI198208-198507

main87248-14210iRA64..CBR198108-198308

87249APIPE, HEATER WATER OUTLET, A

main87248-14200iRA64..CBR198108-198308

main87248-14220iRA6#..EFI198208-198507

87249BPIPE, HEATER WATER OUTLET, B

main87208-20062iRA6#198108-198507

8726314020BRACKET, HEATER WATER PIPE, NO.1

main87263-14020

8726314120BRACKET, HEATER WATER PIPE, NO.1

main87263-14120

8726314130BRACKET, HEATER WATER PIPE, NO.1

main87263-14130

8726314140BRACKET, HEATER WATER PIPE, NO.1

main87263-14140

9011906141

main90119-06141

9011908291

main90119-08291

9033916007

main90339-16007

9046024039

main90460-24039

9046110561

main90461-10561

9048001015

main90480-01015

9161140822

main91611-40822

9165140620

main91651-40620

9165140814

main91651-40814

9165141018

main91651-41018

9165540616

main91655-40616

9611210250

main96112-10250

9671002017

main96710-02017

9671124017

main96711-24017

28 parts on this diagram · 2 diagrams in section
