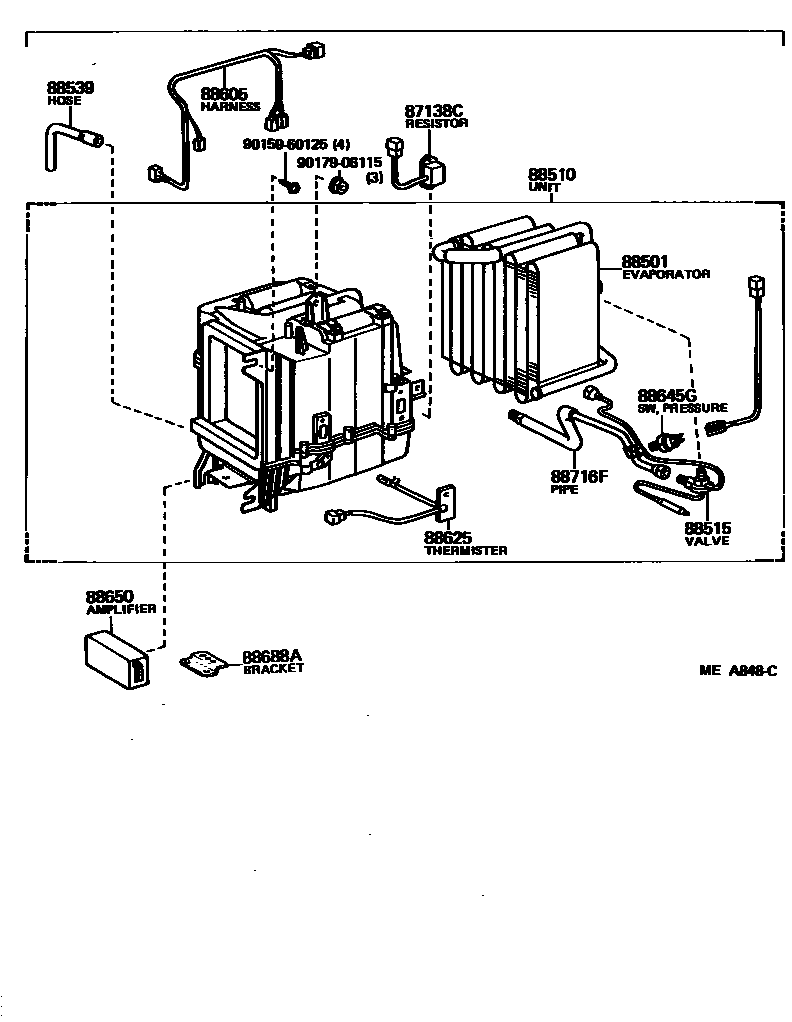

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-14060iRA6#..USA198308-198405

main87138-14061iRA6#..USA198405-198507

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-14190iRA6#198108-198302

main88501-14191iMA61,RA6#198302-198308

main88501-14200iMA61198108-198302

88510UNIT ASSY, COOLER

main88510-14330iRA6#..USA198308-198507

main88510-14340iMA61198108-198512

88515VALVE, COOLER EXPANSION

main88515-14050iMA61198108-198512

main88515-20040iRA6#198108-198308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-14060iMA61,RA6#198108-198308

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-14330iRA6#198108-198308

main88605-14360iRA6#..(CP,LB)..USA198108-198507

W/BOOST VENTILATOR ONLY

88625THERMISTOR, COOLER, NO.1

main88625-90A00iRA6#198108-198308

88645GSWITCH, PRESSURE

main88645-30250iMA61;RA6#..USA198308-198512

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14070iRA6#..USA198108-198507

main88650-14130iMA61198108-198512

main88650-14150iRA6#..CND198108-198308

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-14480iRA6#198108-198308

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-14820iMA61,RA6#198108-198308

9015960125

main90159-60125

9017906115

main90179-06115

13 parts on this diagram · 2 diagrams in section
