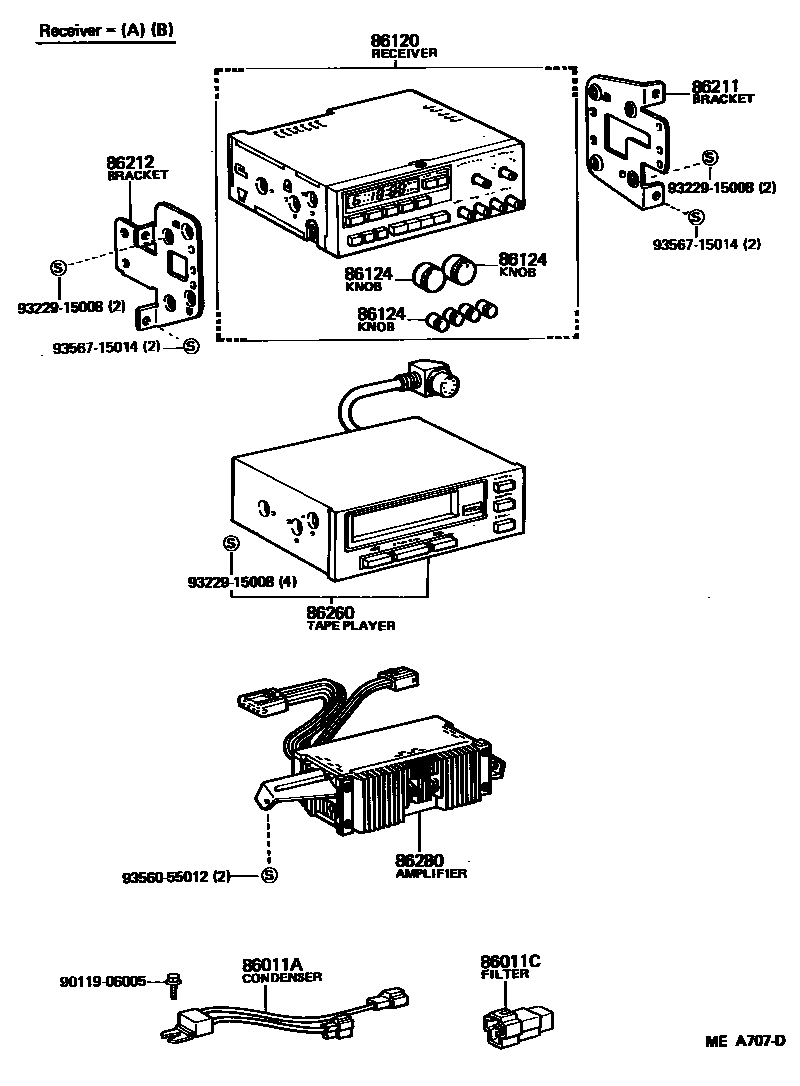

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
86011CFILTER, NOISE
86120RECEIVER ASSY, RADIO
(C)AM/FM/TAPE PLAYER,*ELT
(C)AM/FM/TAPE PLAYER,*ELT
(A)AM/FM,6-BUTTON
(B)AM/FM,*ELT
(B)AM/FM,*ELT
(B)AM/FM,*ELT
(C)AM/FM/TAPE PLAYER,*ELT
(C)AM/FM/TAPE PLAYER,*ELT
86124KNOB, RADIO RECEIVER CONTROL
(A)..(SW/VOL)
(A)..(TUNE)
(A)..(BASS)(TRE)(BAL)(FAD)
(C)..(SW/VOL)
(C)..(BASS)(FAD)
(C)..(BAL)(TRE)
(B)..(SW/VOL)
(B)..(BASS)(TRE)(BAL)(FAD)
(C)..(SW/VOL)
(C)..(FAD)(BAL)
(C)..(EQUALIZER)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86260TAPE PLAYER ASSY
W/RECORDING
86280AMPLIFIER ASSY, STEREO COMPONENT
RECEIVER=(C)
RECEIVER=(C),*GE
RECEIVER=(A)(B); RECEIVER=(B)
9011906005
main90119-06005
9322915008
main93229-15008
9356055012
main93560-55012
9356715014
main93567-15014
12 parts on this diagram · 2 diagrams in section
