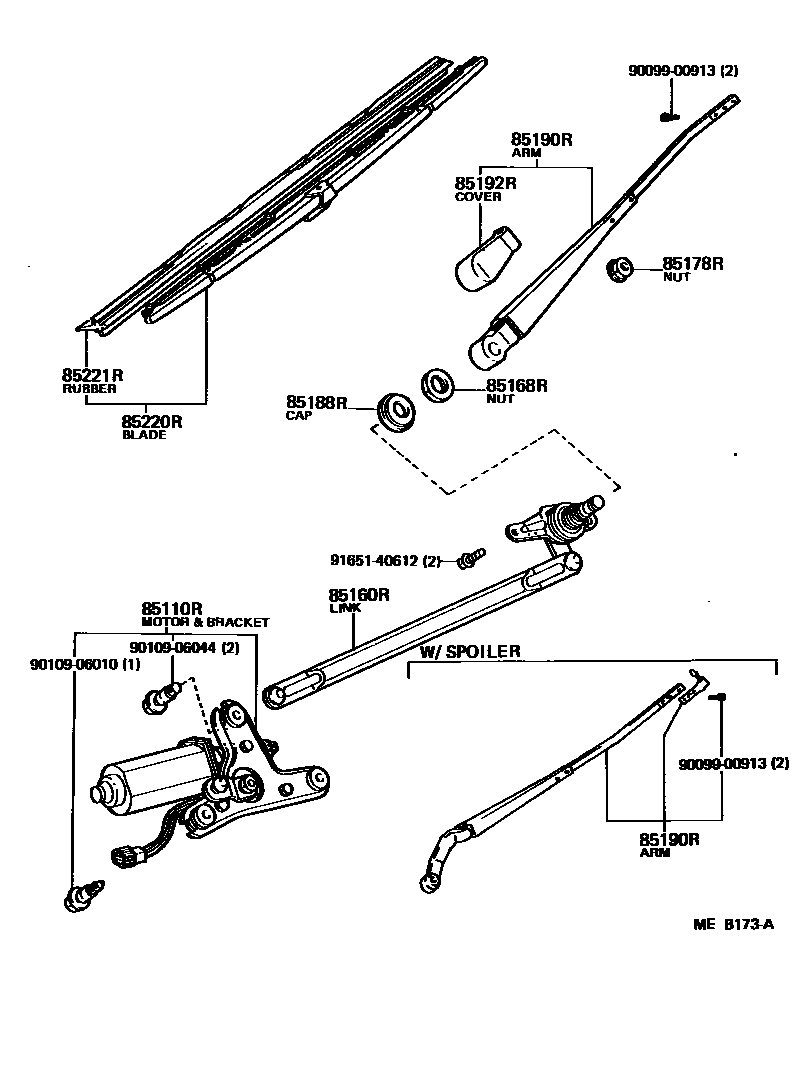

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85120-14030iMA61,RA6#..LB198108-198512

85160RLINK ASSY, REAR WIPER

main85160-14290iMA61,RA6#..LB198108-198308

main85160-14291iMA61,RA6#..LB198308-198512

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iMA61,RA6#..LB198108-198512

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06019iMA61198408-198512

W/SPOILER

main90179-06158iMA61,RA6#..LB198108-198408

85188RCAP, REAR WIPER PIVOT, NO.1

main85179-14220iMA61,RA6#..LB198108-198307

main85179-16150iMA61,RA6#..LB198307-198512

85190RARM ASSY, REAR WIPER

main85190-14390iMA61,RA6#..LB198108-198306

main85190-14580iMA61,RA6#..LB198306-198408

main85190-14600iMA61198408-198512

W/SPOILER

85192RCOVER, REAR WIPER ARM

main85192-14070iMA61,RA6#..LB198108-198306

85220RBLADE ASSY, REAR WIPER

main85220-14340iMA61,RA6#..LB198108-198512

85221RBLADE, REAR WIPER

main85221-14210iMA61,RA6#..LB198203-198512

main85221-30080iMA61,RA64..LB198108-198203

9009900913

main90099-00913

9010906010

main90109-06010

9010906044

main90109-06044

9165140612

main91651-40612

13 parts on this diagram · 1 diagram in section
