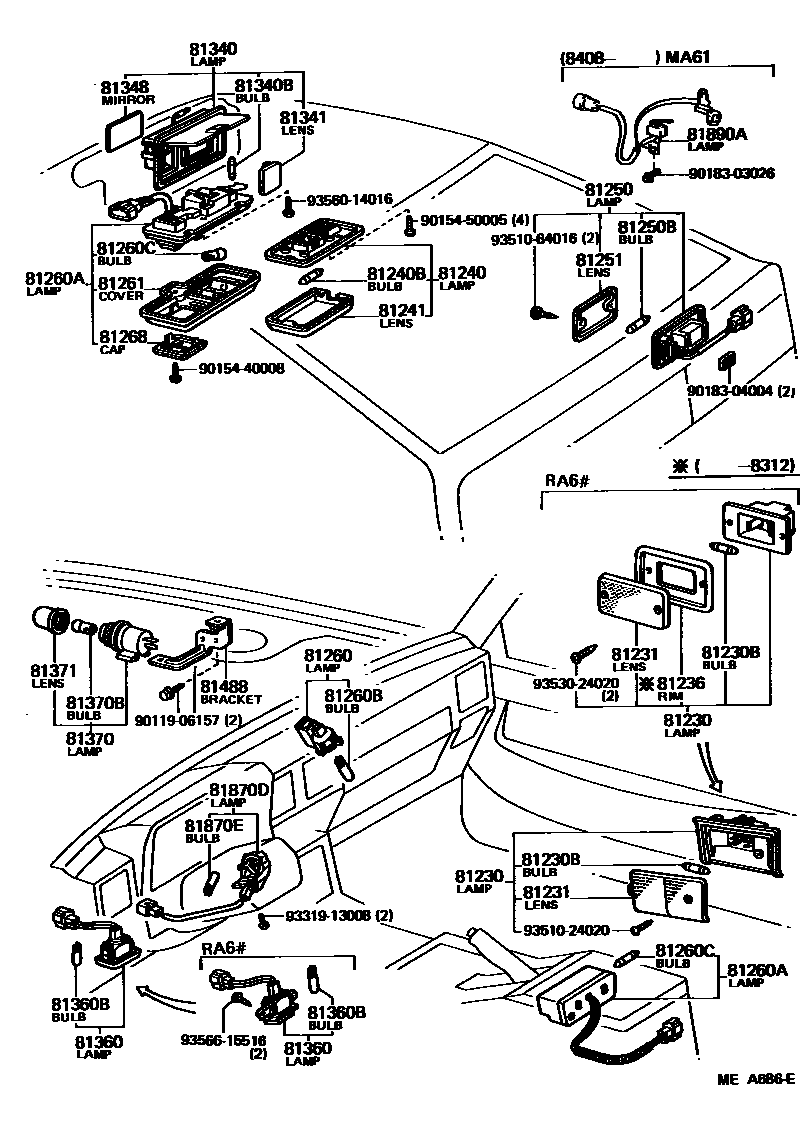

INTERIOR LAMP
81230LAMP ASSY, COURTESY
RH,BLACK,BLACK
RH,TERRACOTTA,RED/MAROON
RH,BLUE,BLUE
RH,DEEP MAROON,RED/MAROON
LH,BLACK,BLACK
LH,TERRACOTTA,RED/MAROON
LH,BLUE,BLUE
LH,DEEP MAROON,RED/MAROON
81230BBULB(FOR COURTESY LAMP)
12V 5W,12V 5W
81231LENS, COURTESY LAMP
RH
LH
81236RIM, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,IVORY
GRAY,GRAY
BLUE,BLUE
BEIGE,BEIGE
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK
TERRACOTTA,RED/MAROON
BLUE,BLUE
DARK BROWN,BROWN
DEEP MAROON,RED/MAROON
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
CONSOLE
SUN ROOF,GRAY,GRAY
SUN ROOF,BLUE,BLUE
SUN ROOF BEIGE,BEIGE
SUN ROOF,IVORY,IVORY
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET,12V 1.2W
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W,SUN ROOF
12V 3W,12V 3W,CONSOLE
81261LENS AND COVER, MAP LAMP
BLUE,BLUE
IVORY,IVORY
BLUE,BLUE
IVORY,IVORY
81268CAP MAP LAMP
BLUE,BLUE
IVORY,IVORY
81340LAMP ASSY, VANITY
IVORY,IVORY
BLUE,BLUE
81340BBULB (FOR VANITY LAMP)
12V 5W,12V 5W
81341LENS, VANITY LAMP
81348MIRROR, VANITY LAMP
81360LAMP ASSY, STEP OR SPOT
81360BBULB, STEP OR SPOT LAMP
12V 1.2W W/O SOCKET,12V 1.4W
81370LAMP ASSY, INSPECTION
81370BBULB, INSPECTION LAMP
12V 7.5W,12V 7.5W
81371LENS, INSPECTION LAMP
81488BRACKET, INSPECTION LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET,12V 1.4W
81890ALAMP ASSY, DOOR LOCK CYLINDER
9011906157
main90119-06157
9015440008
main90154-40008
9015450005
main90154-50005
9018303026
main90183-03026
9018304004
main90183-04004
9331913008
main93319-13008
9351024020
main93510-24020
9351064016
main93510-64016
9353024020
main93530-24020
9356014016
main93560-14016
9356615516
main93566-15516
40 parts on this diagram · 1 diagram in section
