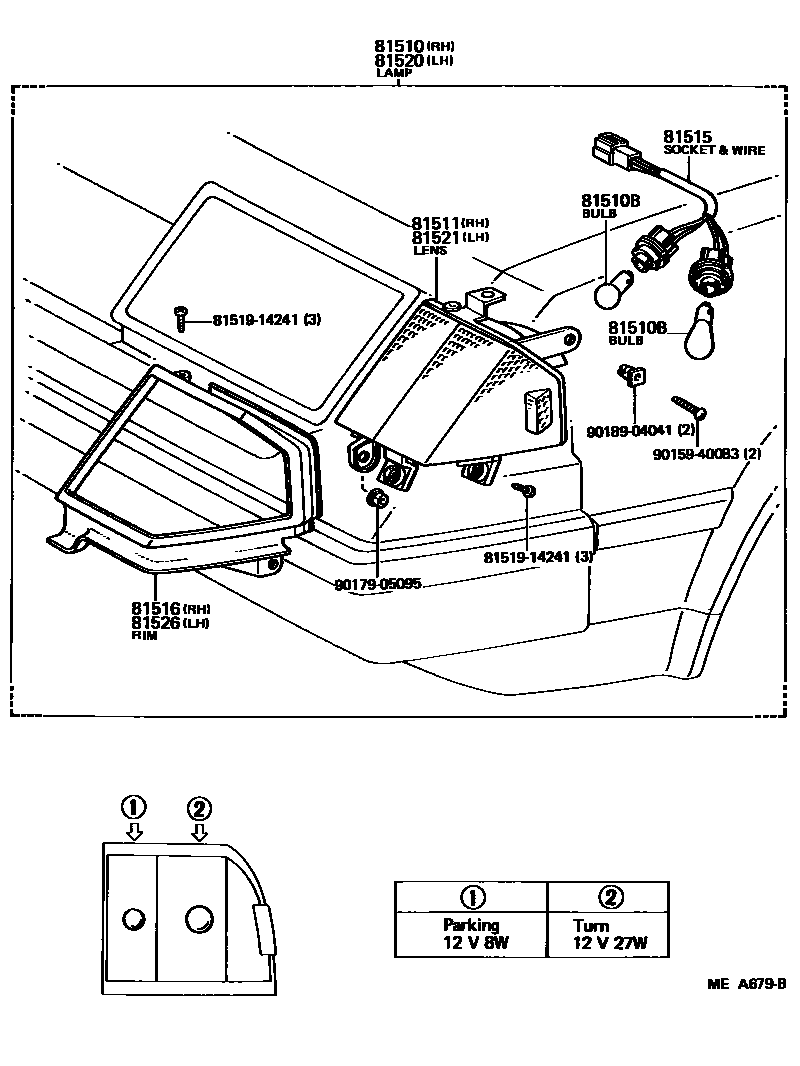

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1 0004 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-14290iMA61198108-198308

main81510-19695iRA6#198108-198308

main81510-19696iRA6#198308-198507

main81510-80005iMA61198308-198512

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11020×2iMA61198308-198512

12V 3.8W,12V 3.8W

main99132-11270×2iMA61,RA6#198108-198512

12V 27W,12V 27W

main99132-12080×2iRA6#198108-198507

12V 8W,12V 8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-14260iRA6#198108-198308

main81511-14261iRA6#198308-198507

main81511-14290iMA61198108-198308

main81511-14291iMA61198308-198512

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-14260×2iRA6#198108-198308

main81515-14261×2iRA6#198308-198507

main81515-14290×2iMA61198108-198308

main81515-14291iMA61198308-198512

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-14240iRA6#198108-198308

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-14290iMA61198108-198308

main81520-19695iRA6#198108-198308

main81520-19696iRA6#198308-198507

main81520-80005iMA61198308-198512

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-14260iRA6#198108-198308

main81521-14261iRA6#198308-198507

main81521-14290iMA61198108-198308

main81521-14291iMA61198308-198512

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-14240iRA6#198108-198308

8151914241BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14241

9015940083

main90159-40083

9017905095

main90179-05095

9018904041

main90189-04041

12 parts on this diagram · 4 diagrams in section
