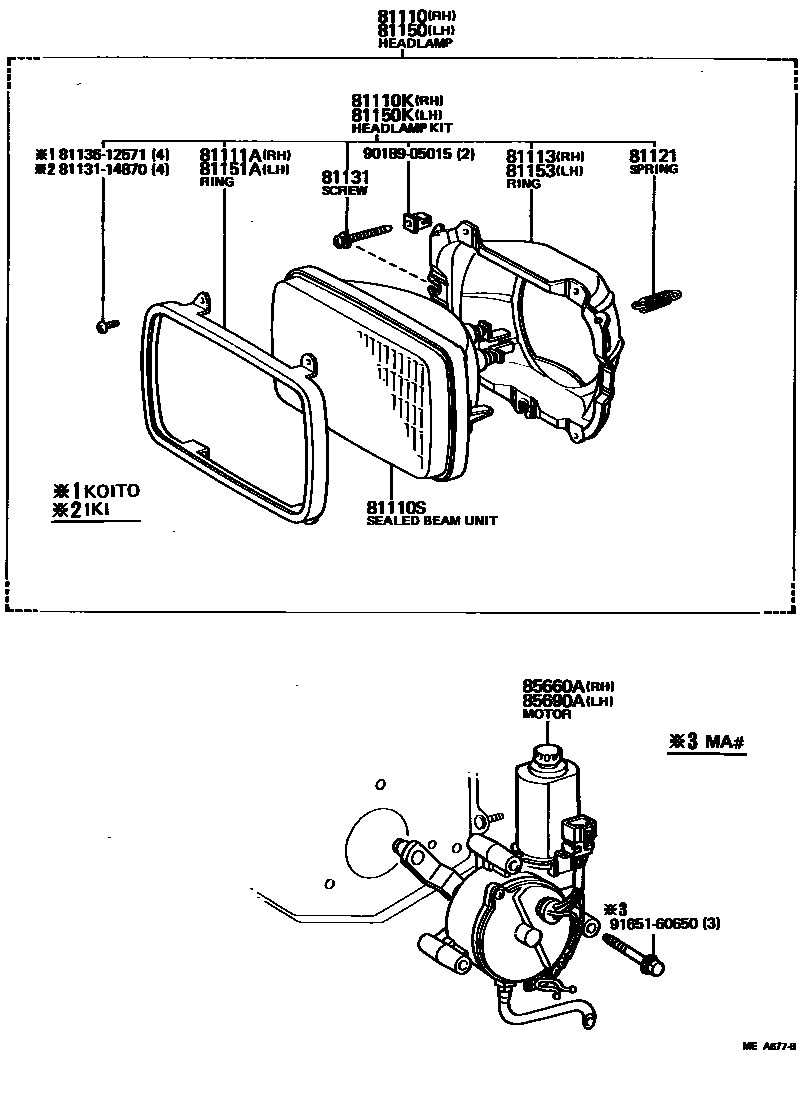

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-80131iRA64..ST198108-198507

KOITO

main81110-80138iRA64198108-198208

HALOGEN

main81110-80144iRA64..ST198108-198507

IKI

main81110-80284iRA6#198208-198507

HALOGEN

main81150-80135iMA61198108-198208

HALOGEN

main81150-80281iMA61198208-198512

HALOGEN

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main81110-80148iRA6#198108-198507

main81150-80145iMA61198108-198512

81110SSEALED BEAM UNIT, NO.1

main90981-04003×2iRA64..ST198108-198507

12V 65/55W,*WB,12V 65/55W,IKI

main90981-04004×2iRA64..ST198108-198507

12V 65/55W,*WB,12V 65/55W,KOITO

main90981-04016×2iMA61,RA64198108-198208

12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN

main90981-04020×2iMA61,RA6#198208-198512

12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14710iRA64..ST198108-198507

IKI

main81111-16020iMA61,RA6#198108-198512

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14670iRA6#198108-198507

KOITO

main81113-14710iRA64..ST198108-198507

IKI

main81153-14670iMA61198108-198512

81121SPRING, HEADLAMP TENSION

main81121-14670×2iMA61,RA6#198108-198512

KOITO

main81121-14710×2iRA64..ST198108-198507

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-14670×4iMA61,RA6#198108-198512

KOITO

main81131-14710×4iRA64..ST198108-198507

IKI

81150HEADLAMP ASSY, LH

main81110-80138iMA61198108-198208

HALOGEN

main81110-80284iMA61198208-198512

HALOGEN

main81150-80128iRA64..ST198108-198507

KOITO

main81150-80135iRA64198108-198208

HALOGEN

main81150-80141iRA64..ST198108-198507

IKI

main81150-80281iRA6#198208-198507

HALOGEN

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main81110-80148iMA61198108-198512

main81150-80145iRA6#198108-198507

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14710iRA64..ST198108-198507

IKI

main81111-16020iMA61,RA6#198108-198512

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-14670iMA61198108-198512

main81153-14670iRA6#198108-198507

KOITO

main81153-14710iRA64..ST198108-198507

IKI

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-14010iRA6#198108-198209

main85660-14011iRA6#198209-198308

main85660-14020iMA61198108-198209

main85660-14021iMA61198209-198308

main85660-14022iMA61198308-198512

main85660-14030iRA6#198308-198507

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-14010iRA6#198108-198209

main85690-14011iRA6#198209-198308

main85690-14020iMA61198108-198209

main85690-14021iMA61198209-198308

main85690-14022iMA61198308-198512

main85690-14030iRA6#198308-198507

8113114870SCREW, HEADLAMP ADJUSTING

main81131-14870

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

9165160650

main91651-60650

17 parts on this diagram · 1 diagram in section
