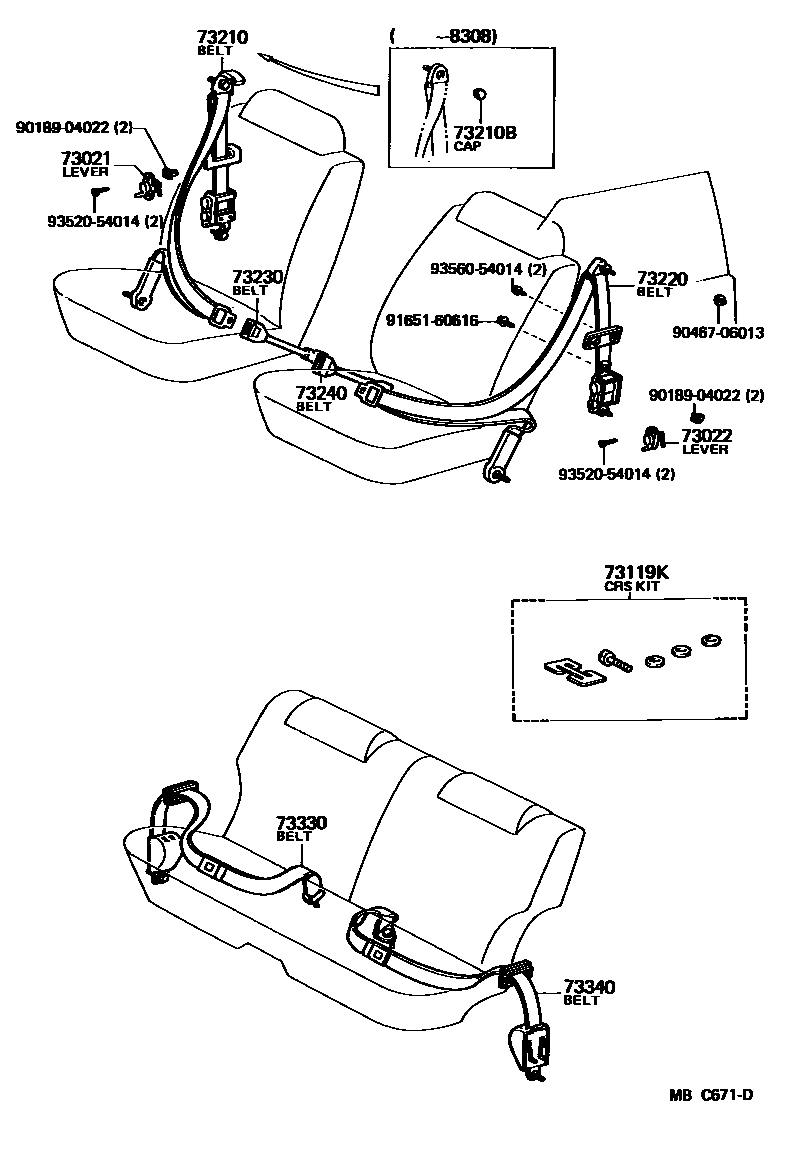

SEAT BELT & CHILD RESTRAINT SEAT

73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH

main73021-14010iMA61,RA6#..CP,LB198108-198512

73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH

main73022-14010iMA61,RA6#..CP,LB198108-198512

73119KSEAT KIT, CHILD RESTRAINT

main04731-22010iMA61,RA6#198108-198512

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-14240-01iRA6#198108-198308

BLACK,BLACK

main73210-14240-04iRA6#198108-198308

BLUE,BLUE

main73210-14240-06iRA6#198108-198308

DARK BROWN,BROWN

main73210-14300-01iMA61198108-198302

BLACK,BLACK

main73210-14300-02iMA61198108-198302

TERRA COTTA,RED/MAROON

main73210-14300-04iMA61198108-198302

BLUE,BLUE

main73210-14301-01iMA61198302-198308

BLACK,BLACK

main73210-14301-02iMA61198302-198308

TERRA COTTA,RED/MAROON

main73210-14301-04iMA61198302-198308

BLUE,BLUE

main73210-14380-01iRA6#..CP,LB198308-198408

BLACK,BLACK

main73210-14380-04iRA6#..CP,LB198308-198408

BLUE,BLUE

main73210-14380-06iRA6#..CP,LB198308-198408

DARK BROWN,BROWN

main73210-14381-01iRA6#..CP,LB198408-198507

BLACK,BLACK

main73210-14381-04iRA6#..CP,LB198408-198507

BLUE,BLUE

main73210-14381-06iRA6#..CP,LB198408-198507

DARK BROWN,DARK BROWN

main73210-14390-01iMA61198308-198408

BLACK,BLACK

main73210-14390-02iMA61198308-198408

DEEP MAROON,RED/MAROON

main73210-14390-04iMA61198308-198408

BLUE,BLUE

main73210-14391-01iMA61198408-198512

BLACK,BLACK

main73210-14391-02iMA61198408-198512

DEEP MAROON,MAROON

main73210-14391-04iMA61198408-198512

BLUE,BLUE

main73210-14430iRA65..CVT198404-198507

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-11×2iMA61,RA6#198108-198308

BLACK,BLACK

main73178-12010-12×2iMA61198108-198308

TERRA COTTA,RED/MAROON

main73178-12010-14×2iMA61,RA6#198108-198308

BLUE,BLUE

main73178-12010-26×2iRA6#198108-198308

DARK BROWN,BROWN

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-14430iRA65..CVT198404-198507

main73220-14180-01iRA6#198108-198308

BLACK,BLACK

main73220-14180-04iRA6#198108-198308

BLUE,BLUE

main73220-14180-06iRA6#198108-198308

DARK BROWN,BROWN

main73220-14240-01iMA61198108-198208

BLACK,BLACK

main73220-14240-02iMA61198108-198208

TERRA COTTA,RED/MAROON

main73220-14240-04iMA61198108-198208

BLUE,BLUE

main73220-14241-01iMA61198208-198302

BLACK,BLACK

main73220-14241-02iMA61198208-198302

TERRA COTTA,RED/MAROON

main73220-14241-04iMA61198208-198302

BLUE,BLUE

main73220-14242-01iMA61198302-198308

BLACK,BLACK

main73220-14242-02iMA61198302-198308

TERRA COTTA,RED/MAROON

main73220-14242-04iMA61198302-198308

BLUE,BLUE

main73220-14320-01iRA6#..CP,LB198308-198408

BLACK,BLACK

main73220-14320-04iRA6#..CP,LB198308-198408

BLUE,BLUE

main73220-14320-06iRA6#..CP,LB198308-198408

DARK BROWN,BROWN

main73220-14321-01iRA6#..CP,LB198408-198507

BLACK,BLACK

main73220-14321-04iRA6#..CP,LB198408-198507

BLUE,BLUE

main73220-14321-06iRA6#..CP,LB198408-198507

DARK BROWN,DARK BROWN

main73220-14330-01iMA61198308-198408

BLACK,BLACK

main73220-14330-02iMA61198308-198408

DEEP MAROON,RED/MAROON

main73220-14330-04iMA61198308-198408

BLUE,BLUE

main73220-14331-01iMA61198408-198512

BLACK,BLACK

main73220-14331-02iMA61198408-198512

DEEP MAROON,MAROON

main73220-14331-04iMA61198408-198512

BLUE,BLUE

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-14170-01iMA61198108-198308

BLACK,BLACK

main73230-14170-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main73230-14170-04iMA61198108-198308

BLUE,BLUE

main73230-14230-01iRA6#198108-198308

BLACK,BLACK

main73230-14230-04iRA6#198108-198308

BLUE,BLUE

main73230-14230-06iRA6#198108-198308

DARK BROWN,BROWN

main73230-14340-01iRA6#..CP,LB198308-198507

BLACK,BLACK

main73230-14340-04iRA6#..CP,LB198308-198507

BLUE,BLUE

main73230-14340-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main73230-14350-01iMA61198308-198512

BLACK,BLACK

main73230-14350-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main73230-14350-04iMA61198308-198512

BLUE,BLUE

main73230-14390iRA65..CVT198404-198507

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-14040-01iRA6#198108-198308

BLACK,BLACK

main73240-14040-04iRA6#198108-198308

BLUE,BLUE

main73240-14040-06iRA6#198108-198308

DARK BROWN,BROWN

main73240-14060-01iMA61198108-198308

BLACK,BLACK

main73240-14060-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main73240-14060-04iMA61198108-198308

BLUE,BLUE

main73240-14070-01iRA6#..CP,LB198308-198507

BLACK,BLACK

main73240-14070-04iRA6#..CP,LB198308-198507

BLUE,BLUE

main73240-14070-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main73240-14080-01iMA61198308-198512

BLACK,BLACK

main73240-14080-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main73240-14080-04iMA61198308-198512

BLUE,BLUE

main73240-14100iRA65..CVT198404-198507

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-14120-01iMA61,RA6#198108-198308

BLACK,BLACK

main73330-14120-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main73330-14120-04iMA61,RA6#198108-198308

BLUE,BLUE

main73330-14120-06iRA6#198108-198308

DARK BROWN,BROWN

main73330-14170-01iMA61,RA6#..CP,LB198308-198507

BLACK,BLACK

main73330-14170-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main73330-14170-04iMA61,RA6#..CP,LB198308-198507

BLUE,BLUE

main73330-14170-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main73330-14180iRA65..CVT198404-198507

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-14120-01iMA61,RA6#198108-198308

BLACK,BLACK

main73330-14120-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main73330-14120-04iMA61,RA6#198108-198308

BLUE,BLUE

main73330-14120-06iRA6#198108-198308

DARK BROWN,BROWN

main73330-14170-01iMA61,RA6#..CP,LB198308-198512

BLACK,BLACK

main73330-14170-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main73330-14170-04iMA61,RA6#..CP,LB198308-198512

BLUE,BLUE

main73330-14170-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main73330-14180iRA65..CVT198404-198507

9018904022

main90189-04022

9046706013

main90467-06013

9165160616

main91651-60616

9352054014

main93520-54014

9356054014

main93560-54014

15 parts on this diagram · 1 diagram in section
