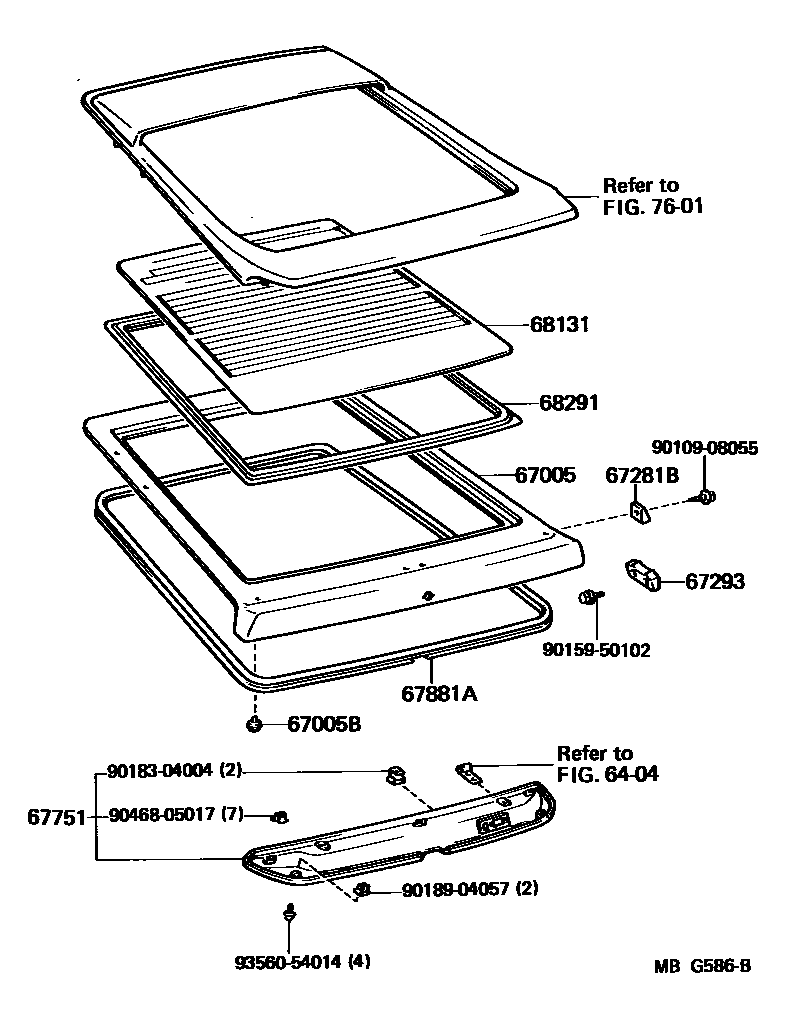

BACK DOOR PANEL & GLASS

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67005PANEL SUB-ASSY, BACK DOOR

main67005-14260iRA6#..LB198408-198507

main67005-14280iMA61,RA6#..LB198108-198512

W/RR WIPER

main67005-14300iMA61198408-198412

W/RR SPOILER

main67005-14610iMA61198110-198408

W/OUTER VISOR

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041×2iMA61,RA6#..LB198108-198512

67281BSTOPPER, BACK DOOR, LOWER

main67281-14020×2iMA61,RA6#..LB198108-198512

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-14010×2iMA61,RA6#..LB198108-198512

67751BOARD, BACK DOOR TRIM

main64781-14030-01iMA61,RA6#..LB198108-198512

BLACK,BLACK

main64781-14030-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main64781-14030-04iMA61,RA6#..LB198108-198512

BLUE,BLUE

main64781-14030-06iRA6#..LB198108-198507

DARK BROWN,BROWN

main64781-14030-12iMA61198308-198512

DEEP MAROON,RED/MAROON

67881AWEATHERSTRIP, BACK DOOR

main67881-14030iMA61,RA6#..LB198108-198512

68131GLASS, BACK DOOR

main68131-14020iRA6#..LB..USA198108-198507

T=4.0,*EHTT

main68131-14040iMA61,RA6#..LB198108-198512

T=4.0,*TT,HEAVY *DEF

main68131-14110iMA61198110-198205

W/VISOR,HEAVY *DEF,T=4.0,*TT

main68131-14111iMA61198205-198408

W/VISOR,HEAVY *DEF,T=4.0,*TT

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-14010iMA61,RA6#..LB198108-198408

main68291-14020iMA61198408-198512

W/RR SPOILER

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9010908055

main90109-08055

9015950102

main90159-50102

9018304004

main90183-04004

9018904057

main90189-04057

9046805017

main90468-05017

9356054014

main93560-54014

16 parts on this diagram · 1 diagram in section
