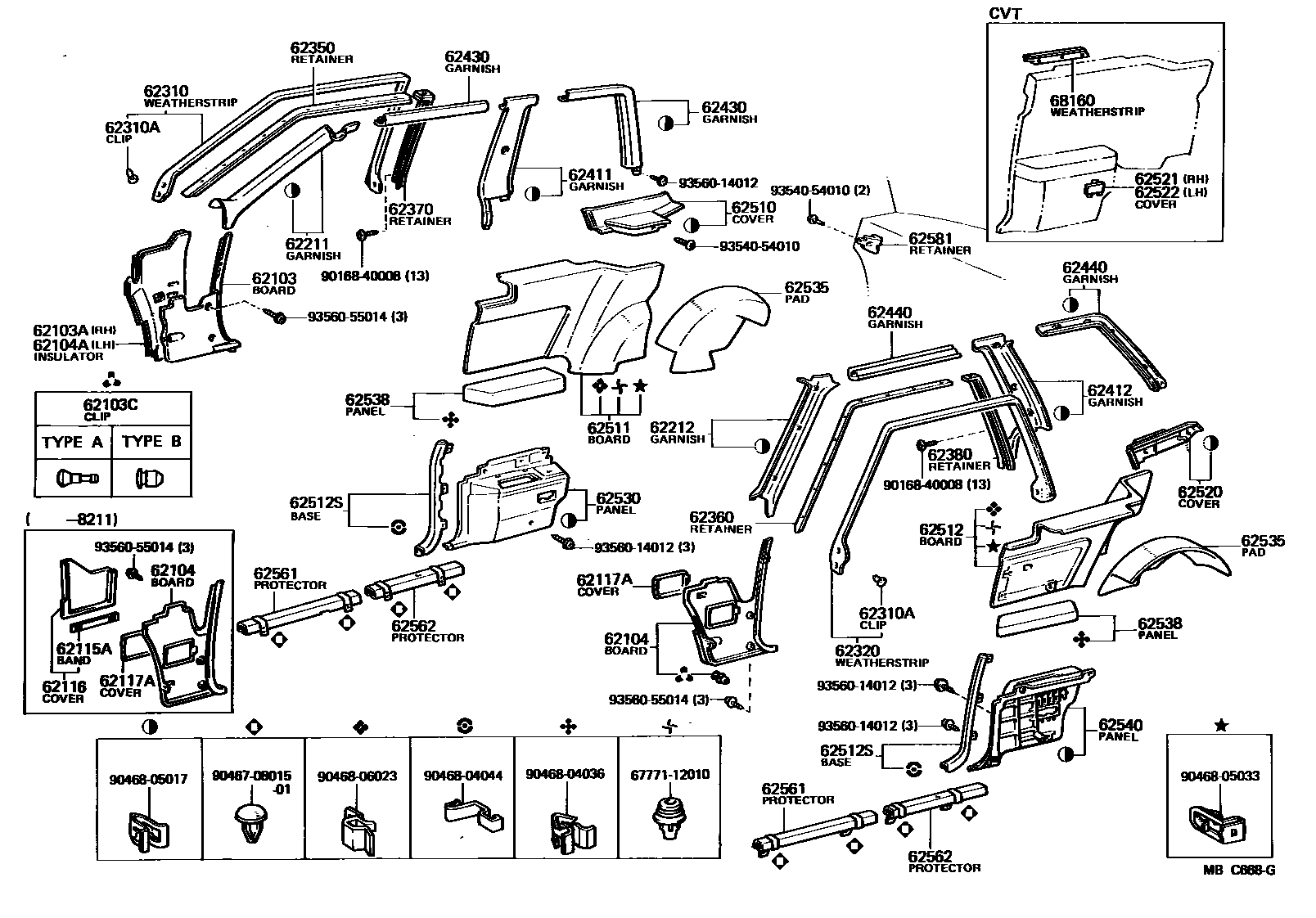

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-14150-01iMA61,RA6#198108-198512

BLACK,BLACK

sub62101-14150

main62101-14150-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62101-14150

main62101-14150-04iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

sub62101-14150

main62101-14150-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

sub62101-14150

main62101-14150-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62101-14150

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14040iMA61,RA6#198108-198512

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05015-01iMA61,RA6#198211-198512

TYPE A,BLACK,BLACK

sub90467-05015

main90467-05015-02iMA61198211-198308

TYPE A,TERRA COTTA,RED/MAROON

sub90467-05015

main90467-05015-04iMA61,RA6#..CP,LB198211-198512

TYPE A,BLUE,BLUE

sub90467-05015

main90467-05015-06iRA6#..CP,LB198211-198507

TYPE A,DARK BROWN,BROWN

sub90467-05015

main90467-05015-12iMA61198308-198512

TYPE A,DEEP MAROON,RED/MAROON

sub90467-05015

main90467-08031-01iMA61,RA6#198211-198512

TYPE B,BLACK,BLACK

sub90467-08031

main90467-08031-02iMA61198211-198308

TYPE B,TERRA COTTA,RED/MAROON

sub90467-08031

main90467-08031-04iMA61,RA6#..CP,LB198211-198512

TYPE B,BLUE,BLUE

sub90467-08031

main90467-08031-06iRA6#..CP,LB198211-198507

TYPE B,DARK BROWN,BROWN

sub90467-08031

main90467-08031-12iMA61198308-198512

TYPE B,DEEP MAROON,RED/MAROON

sub90467-08031

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-14170-01iMA61,RA6#198108-198211

BLACK,BLACK

sub62102-14171

main62102-14170-02iMA61198108-198211

TERRA COTTA,RED/MAROON

sub62102-14171

main62102-14170-04iMA61,RA6#198108-198211

BLUE,BLUE

sub62102-14171

main62102-14170-06iRA6#198108-198211

DARK BROWN,BROWN

sub62102-14171

main62102-14171-01iMA61,RA6#198211-198512

BLACK,BLACK

sub62102-14171

main62102-14171-02iMA61198211-198308

TERRA COTTA,RED/MAROON

sub62102-14171

main62102-14171-04iMA61,RA6#..CP,LB198211-198512

BLUE,BLUE

sub62102-14171

main62102-14171-06iRA6#..CP,LB198211-198507

DARK BROWN,BROWN

sub62102-14171

main62102-14171-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62102-14171

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14040iMA61,RA6#198108-198512

62115ABAND, COWL SIDE TRIM

main62115-14010iMA61,RA64198108-198211

62116COVER, COWL SIDE TRIM, LOWER

main62114-14030-01iMA61,RA64198108-198211

BLACK,BLACK

sub62102-14171

main62114-14030-02iMA61198108-198211

TERRA COTTA,RED/MAROON

sub62102-14171

main62114-14030-04iMA61,RA64198108-198211

BLUE,BLUE

sub62102-14171

main62114-14030-06iRA64198108-198211

DARK BROWN,BROWN

sub62102-14171

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14020-01iMA61,RA6#198108-198308

BLACK,BLACK

sub62117-14020

main62117-14020-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62117-14020

main62117-14020-04iMA61,RA6#198108-198308

BLUE,BLUE

sub62117-14020

main62117-14020-06iRA6#198108-198308

DARK BROWN,BROWN

sub62117-14020

main62117-14040-01iMA61,RA6#198308-198512

BLACK,BLACK

sub62117-14040

main62117-14040-04iMA61,RA6#..CP,LB198308-198512

BLUE,BLUE

sub62117-14040

main62117-14040-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

sub62117-14040

main62117-14040-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62117-14040

62211GARNISH, FRONT PILLAR, RH

main62210-14020-01iMA61198108-198512

BLACK,BLACK

main62210-14020-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main62210-14020-04iMA61,RA6#..(CP,LB)..(GT,GTS,SPR)198108-198512

BLUE,BLUE

main62210-14020-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main62210-14020-12iMA61198308-198512

DEEP MAROON,RED/MAROON

main62211-14110-01iRA64..ST198108-198507

BLACK,BLACK

sub62210-91D01

main62211-14110-04iRA64..ST198108-198507

BLUE,BLUE

sub62210-91D01

main62211-14110-06iRA64..ST198108-198507

DARK BROWN,BROWN

sub62210-91D01

62212GARNISH, FRONT PILLAR, LH

main62212-14110-01iRA64..ST198108-198507

BLACK,BLACK

sub62220-91D01

main62212-14110-04iRA6#198108-198507

BLUE,BLUE

sub62220-91D01

main62212-14110-06iRA6#198108-198507

DARK BROWN,BROWN

sub62220-91D01

main62220-14020-01iMA61198108-198512

BLACK,BLACK

main62220-14020-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main62220-14020-04iMA61,RA6#..(CP,LB)..(GT,GTS,SPR)198108-198512

BLUE,BLUE

main62220-14020-06iRA6#..CP,LB198308-198507

DARK BROWN,BROWN

main62220-14020-12iMA61198308-198512

DEEP MAROON,RED/MAROON

62310WEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14090iMA61,RA6#..CP,LB198108-198512

main62381-14130iRA65..CVT198404-198507

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iMA61,RA6#..CP,LB198108-198512

62320WEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14090iMA61,RA6#..CP,LB198108-198512

main62382-14130iRA65..CVT198404-198507

62350RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, RH

main62361-14040iMA61,RA6#..CP,LB198108-198512

main62361-14050iRA65..CVT198404-198507

62360RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, LH

main62362-14040iMA61,RA6#..CP,LB198108-198512

main62362-14050iRA65..CVT198404-198507

62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH

main62371-14050iMA61,RA6#198108-198512

62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH

main62372-14050iMA61,RA6#198108-198512

62411GARNISH, CENTER PILLAR, RH

main62413-14030-01iMA61,RA6#..CP,LB198108-198512

BLACK,BLACK

sub62413-14030

main62413-14030-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62413-14030

main62413-14030-04iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

sub62413-14030

main62413-14030-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

sub62413-14030

main62413-14030-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62413-14030

62412GARNISH, CENTER PILLAR, LH

main62414-14030-01iMA61,RA6#..CP,LB198108-198512

BLACK,BLACK

sub62414-14030

main62414-14030-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62414-14030

main62414-14030-04iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

sub62414-14030

main62414-14030-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

sub62414-14030

main62414-14030-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62414-14030

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-14040-01iMA61,RA6#..CP,LB198108-198512

FR,BLACK,BLACK

main62431-14040-02iMA61198108-198308

FR,TERRA COTTA,RED/MAROON

main62431-14040-04iMA61,RA6#..CP,LB198108-198512

FR,BLUE,BLUE

main62431-14040-06iRA6#..CP,LB198108-198507

FR,DARK BROWN,BROWN

main62431-14040-12iMA61198308-198512

FR,DEEP MAROON,RED/MAROON

main62451-14040-01iRA6#..CP198108-198507

RR,BLACK,BLACK

sub62451-14040

main62451-14040-04iRA6#..CP198108-198507

RR,BLUE,BLUE

sub62451-14040

main62451-14040-06iRA6#..CP198108-198507

RR,DARK BROWN,BROWN

sub62451-14040

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62431-14040-01iMA61,RA6#..CP,LB198108-198512

FR,BLACK,BLACK

main62431-14040-02iMA61198108-198308

FR,TERRA COTTA,RED/MAROON

main62431-14040-04iMA61,RA6#..CP,LB198108-198512

FR,BLUE,BLUE

main62431-14040-06iRA6#..CP,LB198108-198507

FR,DARK BRWON,BROWN

main62431-14040-12iMA61198308-198512

FR,DEEP MAROON,RED/MAROON

main62452-14030-01iRA6#..CP198108-198507

RR,BLACK,BLACK

sub62452-14030

main62452-14030-04iRA6#..CP198108-198507

RR,BLUE,BLUE

sub62452-14030

main62452-14030-06iRA6#..CP198108-198507

RR,DARK BROWN,BROWN

sub62452-14030

62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH

main62471-14210-01iMA61,RA6#..LB198108-198512

BLACK,BLACK

sub62471-14210

main62471-14210-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62471-14210

main62471-14210-04iMA61,RA6#..LB198108-198512

BLUE,BLUE

sub62471-14210

main62471-14210-06iRA6#..LB198108-198507

DARK BROWN,BROWN

sub62471-14210

main62471-14210-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62471-14210

main62571-14120-01iRA6#..CP198108-198507

BLACK,BLACK

main62571-14120-04iRA6#..CP198108-198507

BLUE,BLUE

main62571-14120-06iRA6#..CP198108-198507

DARK BROWN,BROWN

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-14460-01iRA64..CP..GT198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62510-14460-04iRA65..CP198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62510-14460-06iRA64..CP..GT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN

main62510-14540-06iRA64..CP..GT..USA198108-198308

K-TY,DARK BROWN,BROWN

main62510-14540-08iRA64..CP..GT..USA198108-198308

K-TY,IVORY,IVORY

main62510-14550-01iRA64..CP..GT198108-198208

BLACK,BLACK

main62510-14550-04iRA64..CP..GT198108-198208

BLUE,BLUE

main62510-14550-06iRA64..CP..GT198108-198208

DARK BROWN,BROWN

main62510-14560-01iRA64..CP..ST198108-198308

BLACK,BLACK

main62510-14560-04iRA64..CP..ST198108-198308

BLUE,BLUE

main62510-14560-06iRA64..CP..ST198108-198308

DARK BROWN,BROWN

main62510-14560-08iRA64..CP..ST198108-198308

IVORY,IVORY

main62510-14560-11iRA64..ST198308-198507

BLACK,BLACK

main62510-14560-14iRA64..ST198308-198507

BLUE,BLUE

main62510-14560-16iRA64..ST198308-198507

DARK BROWN,BROWN

main62510-14570-01iMA61198108-198308

W/LEATHER SEAT,BLACK,BLACK

main62510-14570-02iMA61198108-198308

W/LEATHER SEAT,TERRA COTTA,RED/MAROON

main62510-14580-01iRA65..LB198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62510-14580-04iRA65..LB198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62510-14580-06iRA64..LB..GT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN

main62510-14590iRA64..LB..ST198108-198208

IVORY

main62510-14600-01iRA64..LB..GT198108-198208

BLACK,BLACK

main62510-14600-04iRA64..LB..GT198108-198208

BLUE,BLUE

main62510-14600-06iRA64..LB..GT198108-198208

DARK BROWN,BROWN

main62510-14610-01iRA64..CP..GT198208-198308

BLACK,BLACK

main62510-14610-04iRA64..CP..GT198208-198308

BLUE,BLUE

main62510-14610-06iRA64..CP..GT198208-198308

DARK BROWN,BROWN

main62510-14630-01iMA61198108-198208

BLACK,BLACK

main62510-14630-02iMA61198108-198208

TERRA COTTA,RED/MAROON

main62510-14630-04iMA61198108-198208

BLUE,BLUE

main62510-14640-01iMA61198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62510-14640-02iMA61198108-198308

W/SPORTS SEAT,TERRA COTTA,RED/MAROON

main62510-14640-04iMA61198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62510-14650-01iRA64..LB198208-198308

BLACK,BLACK

main62510-14650-04iRA64..LB198208-198308

BLUE,BLUE

main62510-14650-06iRA64..LB198208-198308

DARK BROWN,BROWN

main62510-14660-01iMA61198208-198308

BLACK,BLACK

main62510-14660-02iMA61198208-198308

TERRA COTTA,RED/MAROON

main62510-14660-04iMA61198208-198308

BLUE,BLUE

main62510-14730-06iRA64..LB..GT..USA198108-198308

K-TY,DARK BROWN,BROWN

main62510-14730-08iRA64..LB..GT..USA198108-198308

K-TY,IVORY,IVORY

main62510-14770-01iRA65..CP198308-198507

W/SPORTS SEAT,LEATHER,BLACK,BLACK

sub62510-14770

main62510-14770-04iRA65..CP198408-198507

W/SPORTS SEAT,LEATHER,BLUE,BLUE

sub62510-14770

main62510-14780-11iRA65..LB198308-198507

W/SPORTS SEAT,LEATHER,BLACK,BLACK

main62510-14780-14iRA65..LB198408-198507

W/SPORTS SEAT,LEATHER,BLUE,BLUE

main62510-14790-01iRA65..CP198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62510-14790-04iRA65..CP198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62510-14790-06iRA65..CP198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN

main62510-14800-01iRA64..CP..GT198308-198408

BLACK,BLACK

main62510-14800-02iRA64..CP..GT198308-198408

RED,RED/MAROON

main62510-14800-04iRA64..CP..GT198308-198408

BLUE,BLUE

main62510-14800-06iRA64..CP..GT198308-198408

DARK BROWN,BROWN

main62510-14801-01iRA64..CP..GT198408-198507

BLACK,BLACK

main62510-14801-02iRA64..CP..GT198408-198507

RED,RED

main62510-14801-04iRA64..CP..GT198408-198507

BLUE,BLUE

main62510-14801-06iRA64..CP..GT198408-198507

DARK BROWN,DARK BROWN

main62510-14810-01iRA65..LB198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62510-14810-04iRA65..LB198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62510-14810-06iRA65..LB198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN

main62510-14820-01iRA64..LB198308-198408

BLACK,BLACK

main62510-14820-02iRA64..LB198308-198408

RED,RED/MAROON

main62510-14820-04iRA64..LB198308-198408

BLUE,BLUE

main62510-14820-06iRA64..LB198308-198408

DARK BROWN,BROWN

main62510-14821-01iRA64..LB198408-198507

BLACK,BLACK

main62510-14821-02iRA64..LB198408-198507

RED,RED

main62510-14821-04iRA64..LB198408-198507

BLUE,BLUE

main62510-14821-06iRA64..LB198408-198507

DARK BROWN,DARK BROWN

main62510-14840-01iMA61198308-198408

BLACK,BLACK

main62510-14840-02iMA61198308-198408

DEEP MAROON,RED/MAROON

main62510-14840-04iMA61198308-198408

BLUE,BLUE

main62510-14841-01iMA61198408-198512

BLACK,BLACK

main62510-14841-02iMA61198408-198512

DEEP MAROON,DEEP MAROON

main62510-14841-04iMA61198408-198512

BLUE,BLUE

main62510-14850-01iMA61198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62510-14850-02iMA61198308-198408

W/SPORTS SEAT,DEEP MAROON,RED/MAROON

main62510-14850-04iMA61198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62510-14860-01iMA61198308-198512

W/LEATHER SEAT,BLACK,BLACK

main62510-14860-02iMA61198308-198512

W/LEATHER SEAT,DEEP MAROON,RED/MAROON

main62510-14860-14iMA61198408-198512

W/LEATHER SEAT,BLUE,BLUE

main62510-14870-01iRA65..CP198408-198507

W/SPORTS SEAT,BLACK,BLACK

main62510-14870-04iRA65..CP198408-198507

W/SPORTS SEAT,BLUE,BLUE

main62510-14870-06iRA65..CP198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN

main62510-14880-01iRA65..LB198408-198507

W/SPORTS SEAT,BLACK,BLACK

main62510-14880-04iRA65..LB198408-198507

W/SPORTS SEAT,BLUE,BLUE

main62510-14880-06iRA65..LB198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN

main62510-14890-01iMA61198408-198512

W/SPORTS SEAT,BLACK,BLACK

main62510-14890-02iMA61198408-198512

W/SPORTS SEAT,DEEP MAROON,DEEP MAROON

main62510-14890-04iMA61198408-198512

W/SPORTS SEAT,BLUE,BLUE

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-14500-01iRA64..CP..GT198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62520-14500-04iRA64..CP..GT198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62520-14500-06iRA64..CP..GT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN

main62520-14520-06iRA64..CP..GT..USA198108-198308

K-TY,DARK BROWN,BROWN

main62520-14520-08iRA64..CP..GT..USA198108-198308

K-TY,IVORY,IVORY

main62520-14540-01iRA64..CP..GT198108-198208

BLACK,BLACK

main62520-14540-04iRA64..CP..GT198108-198208

BLUE,BLUE

main62520-14540-06iRA64..CP..GT198108-198208

DARK BROWN,BROWN

main62520-14550-01iRA64..CP..ST198108-198308

BLACK,BLACK

main62520-14550-04iRA64..CP..ST198108-198308

BLUE,BLUE

main62520-14550-06iRA64..CP..ST198108-198308

DARK BROWN,BROWN

main62520-14550-08iRA64..CP..ST198108-198308

IVORY,IVORY

main62520-14550-11iRA64..ST198308-198507

BLACK,BLACK

main62520-14550-14iRA64..ST198308-198507

BLUE,BLUE

main62520-14550-16iRA64..ST198308-198507

DARK BROWN,BROWN

main62520-14560-01iMA61198108-198308

W/LEATHER SEAT,BLACK,BLACK

main62520-14560-02iMA61198108-198308

W/LEATHER SEAT,TERRA COTTA,RED/MAROON

main62520-14570-01iRA64..LB..GT198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62520-14570-04iRA65..LB198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62520-14570-06iRA64..LB..GT198108-198308

W/SPORTS SEAT,DARK BROWN,BROWN

main62520-14580iRA64..LB..ST198108-198208

IVORY

main62520-14590-01iRA64..LB..GT198108-198208

BLACK,BLACK

main62520-14590-04iRA64..LB..GT198108-198208

BLUE,BLUE

main62520-14590-06iRA64..LB..GT198108-198208

DARK BROWN,BROWN

main62520-14600-01iRA64..CP..GT198208-198308

BLACK,BLACK

main62520-14600-04iRA64..CP..GT198208-198308

BLUE,BLUE

main62520-14600-06iRA64..CP..GT198208-198308

DARK BROWN,BROWN

main62520-14620-01iMA61198108-198208

BLACK,BLACK

main62520-14620-02iMA61198108-198208

TERRA COTTA,RED/MAROON

main62520-14620-04iMA61198108-198208

BLUE,BLUE

main62520-14630-01iMA61198108-198308

W/SPORTS SEAT,BLACK,BLACK

main62520-14630-02iMA61198108-198308

W/SPORTS SEAT,TERRA COTTA,RED/MAROON

main62520-14630-04iMA61198108-198308

W/SPORTS SEAT,BLUE,BLUE

main62520-14640-01iRA64..LB198208-198308

BLACK,BLACK

main62520-14640-04iRA64..LB198208-198308

BLUE,BLUE

main62520-14640-06iRA64..LB198208-198308

DARK BROWN,BROWN

main62520-14650-01iMA61198208-198308

BLACK,BLACK

main62520-14650-02iMA61198208-198308

TERRA COTTA,RED/MAROON

main62520-14650-04iMA61198208-198308

BLUE,BLUE

main62520-14720-06iRA64..LB..GT..USA198108-198308

K-TY,DARK BROWN,BROWN

main62520-14720-08iRA64..LB..GT..USA198108-198308

K-TY,IVORY,IVORY

main62520-14760-01iRA65..CP198308-198507

W/SPORTS SEAT,LEATHER,BLACK,BLACK

sub62520-14760

main62520-14760-04iRA65..CP198408-198507

W/SPORTS SEAT,LEATHER,BLUE,BLUE

sub62520-14760

main62520-14770-11iRA65..LB198308-198507

W/SPORTS SEAT,LEATHER,BLACK,BLACK

main62520-14770-14iRA65..LB198408-198507

W/SPORTS SEAT,LEATHER,BLUE,BLUE

main62520-14780-01iRA65..CP198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62520-14780-04iRA65..CP198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62520-14780-06iRA65..CP198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN

main62520-14790-01iRA64..CP..GT198308-198408

BLACK,BLACK

main62520-14790-02iRA64..CP..GT198308-198408

RED,RED/MAROON

main62520-14790-04iRA64..CP..GT198308-198408

BLUE,BLUE

main62520-14790-06iRA64..CP..GT198308-198408

DARK BROWN,BROWN

main62520-14791-01iRA64..CP..GT198408-198507

BLACK,BLACK

main62520-14791-02iRA64..CP..GT198408-198507

RED,RED

main62520-14791-04iRA64..CP..GT198408-198507

BLUE,BLUE

main62520-14791-06iRA64..CP..GT198408-198507

DARK BROWN,DARK BROWN

main62520-14800-01iRA65..LB198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62520-14800-04iRA65..LB198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62520-14800-06iRA65..LB198308-198408

W/SPORTS SEAT,DARK BROWN,BROWN

main62520-14810-01iRA64..LB198308-198408

BLACK,BLACK

main62520-14810-02iRA64..LB198308-198408

RED,RED/MAROON

main62520-14810-04iRA64..LB198308-198408

BLUE,BLUE

main62520-14810-06iRA64..LB198308-198408

DARK BROWN,BROWN

main62520-14811-01iRA64..LB198408-198507

BLACK,BLACK

main62520-14811-02iRA64..LB198408-198507

RED,RED

main62520-14811-04iRA64..LB198408-198507

BLUE,BLUE

main62520-14811-06iRA64..LB198408-198507

DARK BROWN,DARK BROWN

main62520-14830-01iMA61198308-198408

BLACK,BLACK

main62520-14830-02iMA61198308-198408

DEEP MAROON,RED/MAROON

main62520-14830-04iMA61198308-198408

BLUE,BLUE

main62520-14831-01iMA61198408-198512

BLACK,BLACK

main62520-14831-02iMA61198408-198512

DEEP MAROON,DEEP MAROON

main62520-14831-04iMA61198408-198512

BLUE,BLUE

main62520-14840-01iMA61198308-198408

W/SPORTS SEAT,BLACK,BLACK

main62520-14840-02iMA61198308-198408

W/SPORTS SEAT,DEEP MAROON,RED/MAROON

main62520-14840-04iMA61198308-198408

W/SPORTS SEAT,BLUE,BLUE

main62520-14850-01iMA61198308-198512

W/LEATHER SEAT,BLACK,BLACK

main62520-14850-02iMA61198308-198512

W/LEATHER SEAT,DEEP MAROON,RED/MAROON

main62520-14850-14iMA61198408-198512

W/LEATHER SEAT,BLUE,BLUE

main62520-14860-01iRA65..CP198408-198507

W/SPORTS SEAT,BLACK,BLACK

main62520-14860-04iRA65..CP198408-198507

W/SPORTS SEAT,BLUE,BLUE

main62520-14860-06iRA65..CP198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN

main62520-14870-01iRA65..LB198408-198507

W/SPORTS SEAT,BLACK,BLACK

main62520-14870-04iRA65..LB198408-198507

W/SPORTS SEAT,BLUE,BLUE

main62520-14870-06iRA65..LB198408-198507

W/SPORTS SEAT,DARK BROWN,DARK BROWN

main62520-14880-01iMA61198408-198512

W/SPORTS SEAT,BLACK,BLACK

main62520-14880-02iMA61198408-198512

W/SPORTS SEAT,DEEP MAROON,DEEP MAROON

main62520-14880-04iMA61198408-198512

W/SPORTS SEAT,BLUE,BLUE

62512SBASE, QUARTER TRIM, FRONT

main62517-14050-01iMA61,RA6#198108-198512

RH,BLACK,BLACK

sub62517-14050

main62517-14050-02iMA61198108-198308

RH,TERRA COTTA,RED/MAROON

sub62517-14050

main62517-14050-04iMA61,RA6#..CP,LB198108-198512

RH,BLUE,BLUE

sub62517-14050

main62517-14050-06iRA6#..CP,LB198108-198507

RH,DARK BROWN,BROWN

sub62517-14050

main62517-14050-12iMA61198308-198512

RH,DEEP MAROON,RED/MAROON

sub62517-14050

main62518-14030-01iMA61,RA6#198108-198512

LH,BLACK,BLACK

sub62518-14030

main62518-14030-02iMA61198108-198308

LH,TERRA COTTA,RED/MAROON

sub62518-14030

main62518-14030-04iMA61,RA6#..CP,LB198108-198512

LH,BLUE,BLUE

sub62518-14030

main62518-14030-06iRA6#..CP,LB198108-198507

LH,DARK BROWN,BROWN

sub62518-14030

main62518-14030-12iMA61198308-198512

LH,DEEP MAROON,RED/MAROON

sub62518-14030

62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH

main62472-14180-01iMA61,RA6#..LB198108-198512

BLACK,BLACK

sub62472-14180

main62472-14180-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62472-14180

main62472-14180-04iMA61,RA6#..LB198108-198512

BLUE,BLUE

sub62472-14180

main62472-14180-06iRA6#..LB198108-198507

DARK BROWN,BROWN

sub62472-14180

main62472-14180-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62472-14180

main62572-14090-01iRA6#..CP198108-198507

BLACK,BLACK

main62572-14090-04iRA6#..CP198108-198507

BLUE,BLUE

main62572-14090-06iRA6#..CP198108-198507

DARK BROWN,BROWN

62521COVER, QUARTER INSIDE SERVICE HOLE, RH

main62538-14010-01iRA65..CVT198404-198507

BLACK,BLACK

sub62538-14010

62522COVER, QUARTER INSIDE SERVICE HOLE, LH

main62538-14010-01iRA65..CVT198404-198507

BLACK,BLACK

sub62538-14010

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62513-14020-01iRA64..CP..ST198108-198507

BLACK,BLACK

sub62513-14020

main62513-14020-04iRA64..CP..ST198108-198507

BLUE,BLUE

sub62513-14020

main62513-14020-06iRA64..CP..ST198108-198507

DARK BROWN,BROWN

sub62513-14020

main62513-14040-01iRA6#..CP..(GT,GTS)198108-198512

BLACK,BLACK

sub62513-14040

main62513-14040-02iMA61198108-198308

TERRA COTTA,TERACOTTA

sub62513-14040

main62513-14040-04iMA61,RA6#..LB198108-198512

BLUE,BLUE

sub62513-14040

main62513-14040-06iRA6#..LB198108-198507

DARK BROWN,BROWN

sub62513-14040

main62513-14040-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62513-14040

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-14020iMA61,RA6#..CP,LB198108-198512

62538PANEL, QUARTER TRIM ARMREST

main74250-14040-01iRA64..CP..ST198108-198507

RH,BLACK,BLACK

main74250-14040-04iRA64..CP..ST198108-198507

RH,BLUE,BLUE

main74250-14040-06iRA64..CP..ST198108-198507

RH,DARK BROWN,BROWN

main74250-14060-01iRA6#..CP..(GT,GTS)198108-198512

RH,BLACK,BLACK

main74250-14060-02iMA61198108-198308

RH,TERRA COTTA,RED/MAROON

main74250-14060-04iRA6#..CP..(GT,GTS)198108-198512

RH,BLUE,BLUE

main74250-14060-06iRA6#..LB198108-198507

RH,DARK BROWN,BROWN

main74250-14060-12iMA61198308-198512

RH,DEEP MAROON,RED/MAROON

main74260-14030-01iRA6#..CP..(GT,GTS)198108-198512

LH,BLACK,BLACK

main74260-14030-02iMA61198108-198308

LH,TERRA COTTA,RED/MAROON

main74260-14030-04iRA6#..CP..(GT,GTS)198108-198512

LH,BLUE,BLUE

main74260-14030-06iRA6#..CP..(GT,GTS)198108-198507

LH,DARK BROWN,BROWN

main74260-14030-12iMA61198308-198512

LH,DEEP MAROON,RED/MAROON

main74260-14050-01iRA65..CVT198108-198507

LH,BLACK,BLACK

main74260-14050-04iRA64..CP..ST198108-198507

LH,BLUE,BLUE

main74260-14050-06iRA64..CP..ST198108-198507

LH,DARK BROWN,BROWN

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62514-14020-01iRA65..CVT198108-198507

BLACK,BLACK

sub62514-14020

main62514-14020-04iRA64..CP..ST198108-198507

BLUE,BLUE

sub62514-14020

main62514-14020-06iRA64..CP..ST198108-198507

DARK BROWN,BROWN

sub62514-14020

main62514-14040-01iMA61,RA6#..LB198108-198512

BLACK,BLACK

sub62514-14040

main62514-14040-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub62514-14040

main62514-14040-04iMA61,RA6#..LB198108-198512

BLUE,BLUE

sub62514-14040

main62514-14040-06iRA6#..CP..(GT,GTS)198108-198507

DARK BROWN,BROWN

sub62514-14040

main62514-14040-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub62514-14040

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14070iMA61,RA6#..CP,LB198108-198512

RH

main62561-14080iRA65..CVT198404-198507

RH

main62562-14070iMA61,RA6#..CP,LB198108-198512

LH

main62562-14080iRA65..CVT198404-198507

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-14060iMA61,RA6#..CP,LB198108-198512

RH

main62563-14070iRA65..CVT198404-198507

RH

main62564-14020iMA61,RA6#..CP,LB198108-198512

LH

main62564-14030iRA65..CVT198404-198507

LH

62581RETAINER, QUARTER TRIM

main62533-14050iRA6#..CP198108-198507

RH

main62534-14040iRA6#..CP198108-198507

LH

68160WEATHERSTRIP ASSY, REAR QUARTER, INNER

main68190-14110iRA65..CVT198404-198507

RH

main68240-14050iRA65..CVT198404-198507

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9016840008

main90168-40008

904670801501

main90467-0801501

9046804036

main90468-04036

9046804044

main90468-04044

9046805017

main90468-05017

9046805033

main90468-05033

9046806023

main90468-06023

9354054010

main93540-54010

9356014012

main93560-14012

9356055014

main93560-55014

47 parts on this diagram · 2 diagrams in section
