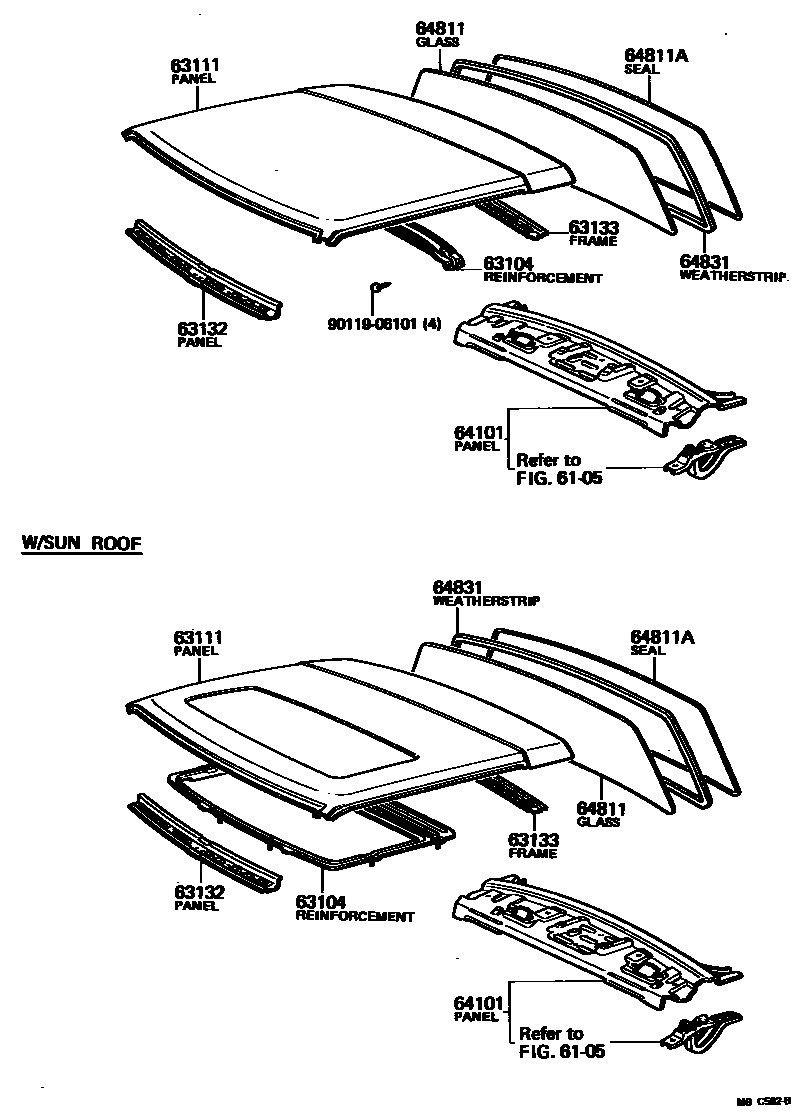

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-14060iMA61,RA6#..CP,LB198108-198512

main63142-14030iMA61,RA6#..CP,LB198108-198512

W/SUN ROOF

63111PANEL, ROOF

main63111-14140iRA6#..CP198108-198507

main63111-14150iRA6#..CP198108-198507

W/SUN ROOF

main63111-14160iMA61,RA6#..LB198108-198512

main63111-14170iMA61,RA6#..LB198108-198512

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63102-14070iMA61,RA6#..CP,LB198108-198512

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-14030iMA61,RA6#..LB198108-198512

main63133-14090iRA6#..CP198108-198507

64101PANEL SUB-ASSY, UPPER BACK

main64101-14180iRA64..CP..ST198108-198208

main64101-14181iRA64..ST198208-198507

main64101-14200iRA64..CP..GT198108-198208

main64101-14201iRA6#..CP..(GT,GTS)198208-198507

main64101-14220iRA65..CVT198404-198507

64811GLASS, BACK WINDOW

main64801-14400iRA6#..CP..USA198108-198507

T=3.5,*TT

main64801-14410iRA6#..CP198108-198507

T=3.5,*TT,HEAVY *DEF

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14030iRA6#..CP198108-198507

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14130iRA6#198108-198507

9011906101

main90119-06101

10 parts on this diagram · 4 diagrams in section
