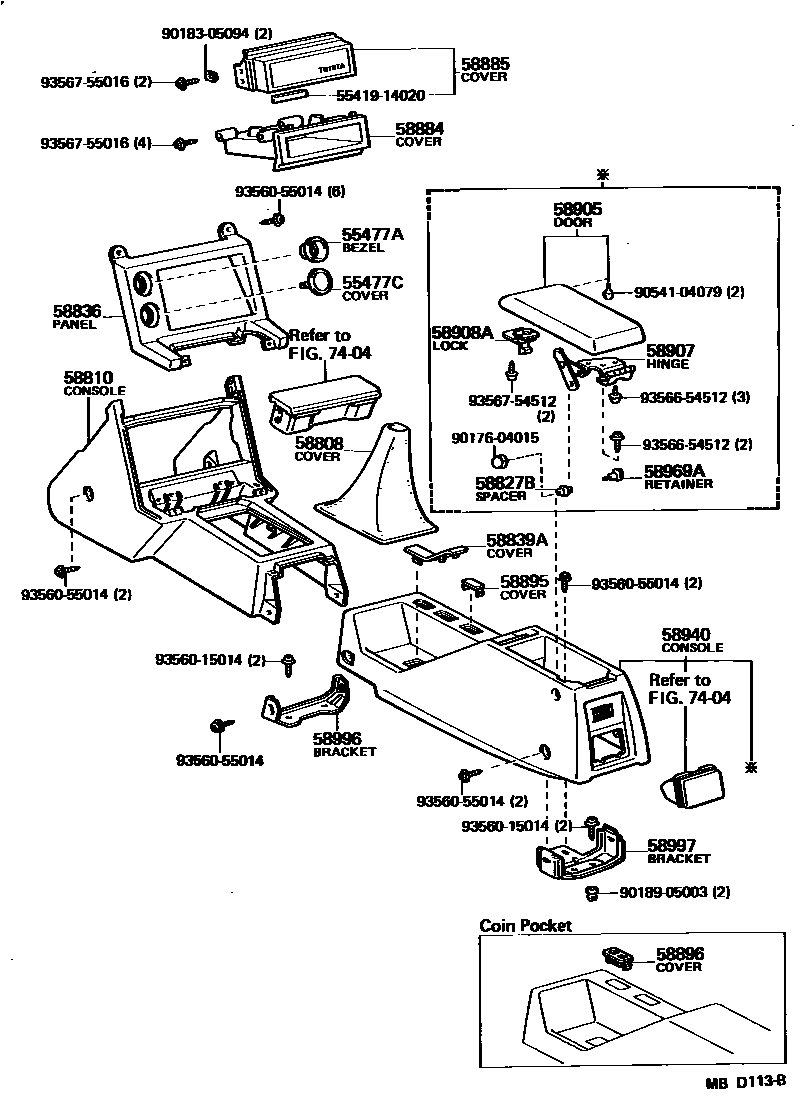

CONSOLE BOX & BRACKET

0001 1 0002 1

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-14050iMA61,RA6#198108-198512

55477CCOVER, COOLER SWITCH HOLE

main55477-10010iRA6#..CP,LB198108-198507

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14100-01iMA61,RA6#..5F198108-198512

BLACK,BLACK

main58808-14100-02iMA61..5F198108-198308

TERRA COTTA,RED/MAROON

main58808-14100-04iMA61,RA6#..(CP,LB)..5F198108-198512

BLUE,BLUE

main58808-14100-06iRA6#..(CP,LB)..5F198108-198507

DARK BROWN,BROWN

main58808-14100-12iMA61..5F198308-198512

DEEP MAROON,RED/MAROON

58810CONSOLE ASSY

main58802-14050-01iMA61198308-198512

BLACK,BLACK

main58802-14050-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main58802-14050-04iMA61198308-198512

BLUE,BLUE

main58811-14180-01iRA6#198308-198507

BLACK,BLACK

main58811-14180-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main58811-14180-04iMA61,RA6#198108-198308

BLUE,BLUE

main58811-14180-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iMA61,RA6#..GT,GTS,SPR198108-198512

58836PANEL, CONSOLE, UPPER FRONT

main58804-14020iMA61198108-198308

main58804-14021iMA61198308-198512

main58821-14080iRA6#198108-198308

main58821-14081iRA6#198308-198507

58839ACOVER, CONSOLE BOX HOLE

main58839-14010-01iRA6#198108-198507

BLACK,BLACK

main58839-14010-04iRA6#..CP,LB198108-198507

BLUE,BLUE

main58839-14010-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

58884COVER, STEREO OPENING

main55521-14050iMA61,RA6#..CP,LB198108-198512

58885COVER, CONSOLE BOX OPENING

main55522-14080iMA61,RA6#..CP,LB198108-198512

sub55522-20070

58895COVER, SWITCH HOLE, NO.1

main55539-24010-01iRA6#198308-198507

BLACK,BLACK

sub55539-32010

sub55539-20030

main55539-24010-04iRA6#..LB198108-198308

BLUE,BLUE

sub55539-32010

sub55539-20030

main55539-24010-06iRA6#..LB198108-198308

DARK BROWN,BROWN

sub55539-32010

sub55539-20030

main55539-24010-12iMA61..5F198308-198512

DEEP MAROON,RED/MAROON

sub55539-32010

sub55539-20030

58896COVER, SWITCH HOLE, NO.2

main55539-14030-01iRA64198108-198208

BLACK,BLACK

main55539-14030-04iRA64198108-198208

BLUE,BLUE

main55539-14030-06iRA64198108-198208

DARK BROWN,BROWN

main55539-14031-01iRA6#198208-198507

BLACK,BLACK

main55539-14031-04iMA61198308-198512

BLUE,BLUE

main55539-14031-06iRA6#..CP,CVT198208-198507

DARK BROWN,BROWN

main55539-14031-12iMA61198308-198512

DEEP MAROON,RED/MAROON

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14040-01iRA6#..GT,GTS198108-198507

BLACK,BLACK

main58905-14040-04iRA6#..(CP,LB)..(GT,GTS)198108-198507

BLUE,BLUE

main58905-14040-06iRA6#..(CP,LB)..(GT,GTS)198108-198507

DARK BROWN,BROWN

main58905-24010-01iMA61198108-198512

BLACK,BLACK

main58905-24010-02iMA61198108-198308

TERRA COTTA,RED/MAROON

main58905-24010-04iMA61198108-198512

BLUE,BLUE

main58905-24010-12iMA61198308-198512

DEEP MAROON,RED/MAROON

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iMA61,RA6#..GT,GTS,SPR198108-198512

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14010iMA61198108-198512

main58908-22010iRA6#..GT,GTS198108-198507

58940CONSOLE ASSY, REAR

main58901-14040-01iRA64..ST198108-198507

BLACK,BLACK

main58901-14040-04iRA64..ST198108-198507

BLUE,BLUE

main58901-14040-06iRA64..ST198108-198507

DARK BROWN,BROWN

main58901-14080-01iRA6#..GT,GTS198108-198507

BLACK,BLACK

main58901-14080-04iRA6#..(CP,LB)..(GT,GTS)198108-198507

BLUE,BLUE

main58901-14080-06iRA6#..(CP,LB)..(GT,GTS)198108-198507

DARK BROWN,BROWN

main58901-14090-01iMA61198208-198308

BLACK,BLACK

main58901-14090-02iMA61198208-198308

TERRA COTTA,RED/MAROON

main58901-14090-04iMA61198208-198308

BLUE,BLUE

main58901-14100-01iMA61198308-198512

BLACK,BLACK

main58901-14100-02iMA61198308-198512

DEEP MAROON,RED/MAROON

main58901-14100-04iMA61198308-198512

BLUE,BLUE

main58901-24020-01iMA61198108-198201

BLACK,BLACK

main58901-24020-02iMA61198108-198201

TERRA COTTA,RED/MAROON

main58901-24020-04iMA61198108-198201

BLUE,BLUE

main58901-24021-01iMA61198201-198208

BLACK,BLACK

main58901-24021-02iMA61198201-198208

TERRA COTTA,RED/MAROON

main58901-24021-04iMA61198201-198208

BLUE,BLUE

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iMA61,RA6#..GT,GTS,SPR198108-198512

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58996-14010iMA61,RA6#198108-198308

main58996-14011iMA61,RA6#198308-198512

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iMA61,RA6#198108-198512

7404

5541914020PLATE, SAFETY PAD

main55419-14020

9017604015

main90176-04015

9018305094

main90183-05094

9018905003

main90189-05003

9054104079

main90541-04079

9356015014

main93560-15014

9356055014

main93560-55014

9356654512

main93566-54512

9356754512

main93567-54512

9356755016

main93567-55016

9356815014

main93568-15014

30 parts on this diagram · 2 diagrams in section
