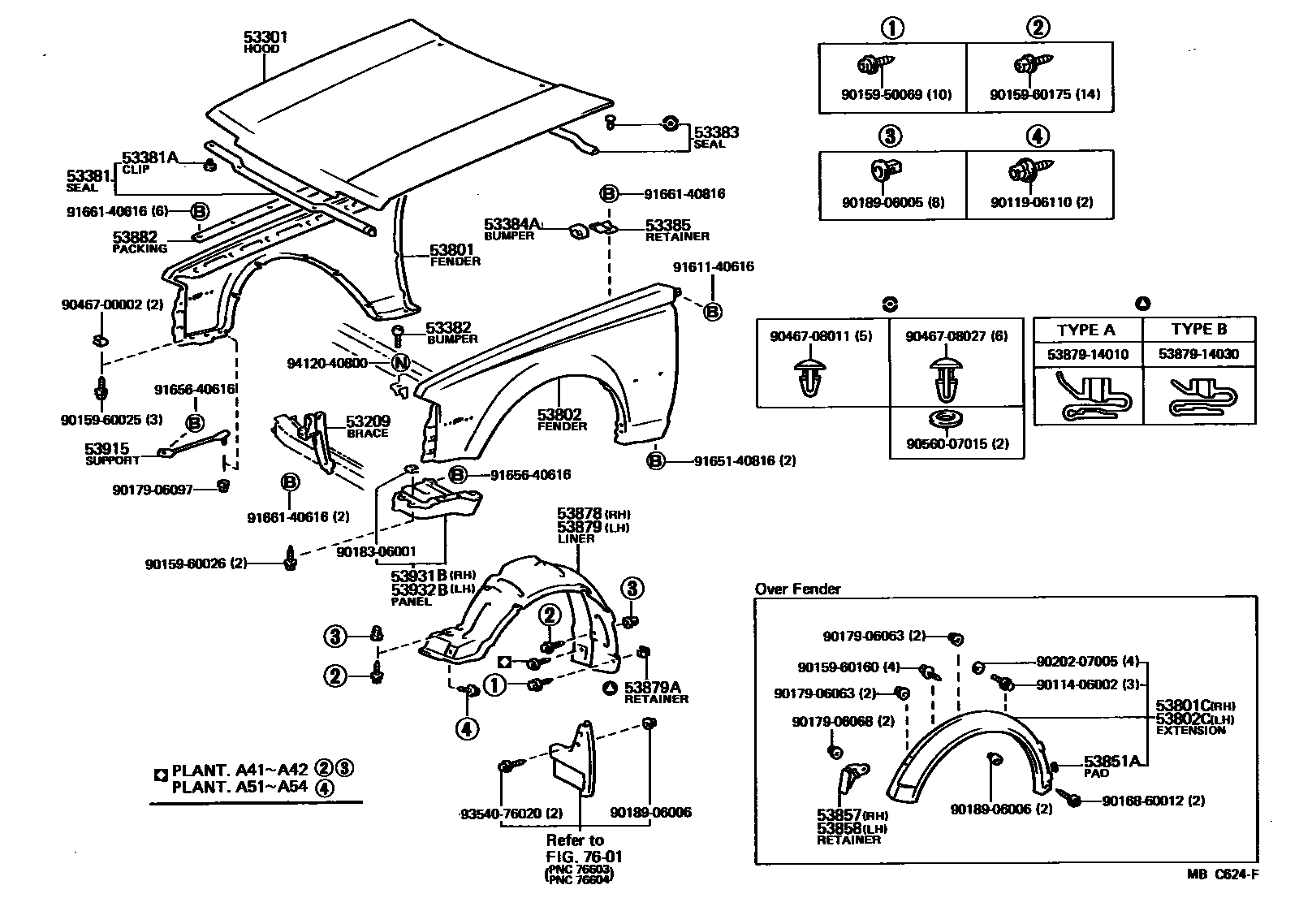

HOOD & FRONT FENDER
53209BRACE SUB-ASSY, HOOD LOCK
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382BUMPER, HOOD, FRONT
sub53382-90A00
53384ABUMPER, FENDER TO HOOD
53385RETAINER, HOOD, BUMPER
LH
RH
53801FENDER SUB-ASSY, FRONT RH
W/OVER FENDER
W/OVER FENDER
W/OVER FENDER
53801CEXTENSION, FRONT WING, RH
53802FENDER SUB-ASSY, FRONT LH
W/OVER FENDER
W/OVER FENDER
W/OVER FENDER
53802CEXTENSION, FRONT WING, LH
53851APAD, FRONT WHEEL OPENING EXTENSION, NO.1
L=972
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
W/OVER FENDER
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
W/OVER FENDER
53878LINER, FRONT FENDER, RH
W/OVER FENDER
W/OVER FENDER
53879LINER, FRONT FENDER, LH
W/OVER FENDER
W/OVER FENDER
53879ARETAINER, FRONT FENDER LINER
TYPE A
TYPE B W/OVER FENDER
53915SUPPORT, FRONT VALANCE PANEL
RH
LH
53931BPANEL, FRONT END, RH
W/OVER FENDER
53932PANEL SUB-ASSY, FRONT END
W/*HC
53932BPANEL, FRONT END, LH
W/OVER FENDER
7601
5387914010LINER, FRONT FENDER, LH
main53879-14010
5387914030LINER, FRONT FENDER, LH
main53879-14030
9011406002
main90114-06002
9011906110
main90119-06110
9015950069
main90159-50069
9015960025
main90159-60025
9015960026
main90159-60026
9015960160
main90159-60160
9015960175
main90159-60175
9016860012
main90168-60012
9017906063
main90179-06063
9017906068
main90179-06068
9017906097
main90179-06097
9018306001
main90183-06001
9018906005
main90189-06005
9018906006
main90189-06006
9020207005
main90202-07005
9046700002
main90467-00002
9046708011
main90467-08011
9046708027
main90467-08027
9056007015
main90560-07015
9161140616
main91611-40616
9165140816
main91651-40816
9165640616
main91656-40616
9166140616
main91661-40616
9166140816
main91661-40816
9354076020
main93540-76020
9412040800
main94120-40800
52 parts on this diagram · 3 diagrams in section
