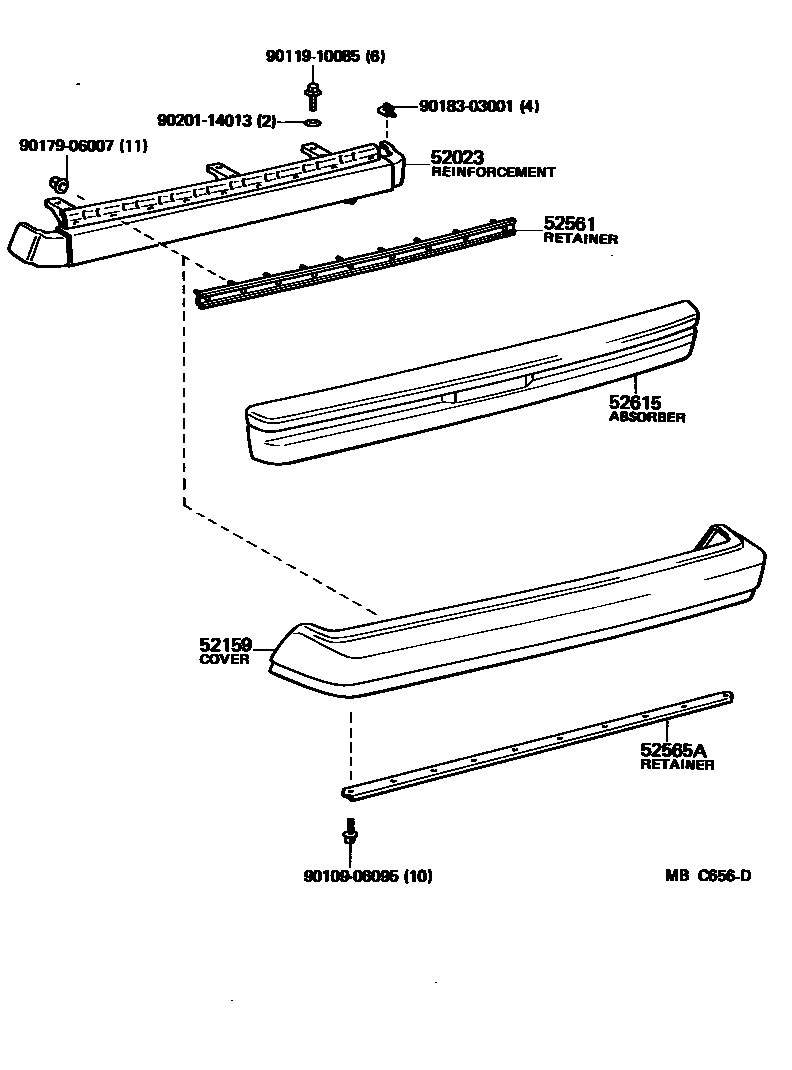

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14090iRA6#..CP,CVT198108-198507

main52023-14110iMA61,RA6#..LB198108-198512

52159COVER, REAR BUMPER

main52159-14130iRA6#..CP,CVT198108-198507

main52159-14170iRA6#..LB198108-198308

main52159-14270iRA6#..LB198308-198507

main52159-14901iMA61198108-198308

main52159-14902iMA61198308-198512

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-14060iRA6#..CP,CVT198108-198507

main52561-14080iRA6#..LB198108-198507

main52561-14110iMA61198108-198308

main52561-14120iMA61198308-198512

52565ARETAINER, REAR BUMPER, LOWER

main52565-14060iRA6#..CP,CVT198108-198507

main52565-14070iRA6#..LB198108-198507

main52565-14080iMA61198108-198512

52615ABSORBER, REAR BUMPER ENERGY

main52615-14070iRA6#..CP,CVT198108-198507

main52615-14110iRA6#..LB198108-198507

main52615-14130iMA61198108-198308

main52615-14140iMA61198308-198512

9010906095

main90109-06095

9011910085

main90119-10085

9017906007

main90179-06007

9018303001

main90183-03001

9020114013

main90201-14013

10 parts on this diagram · 3 diagrams in section
