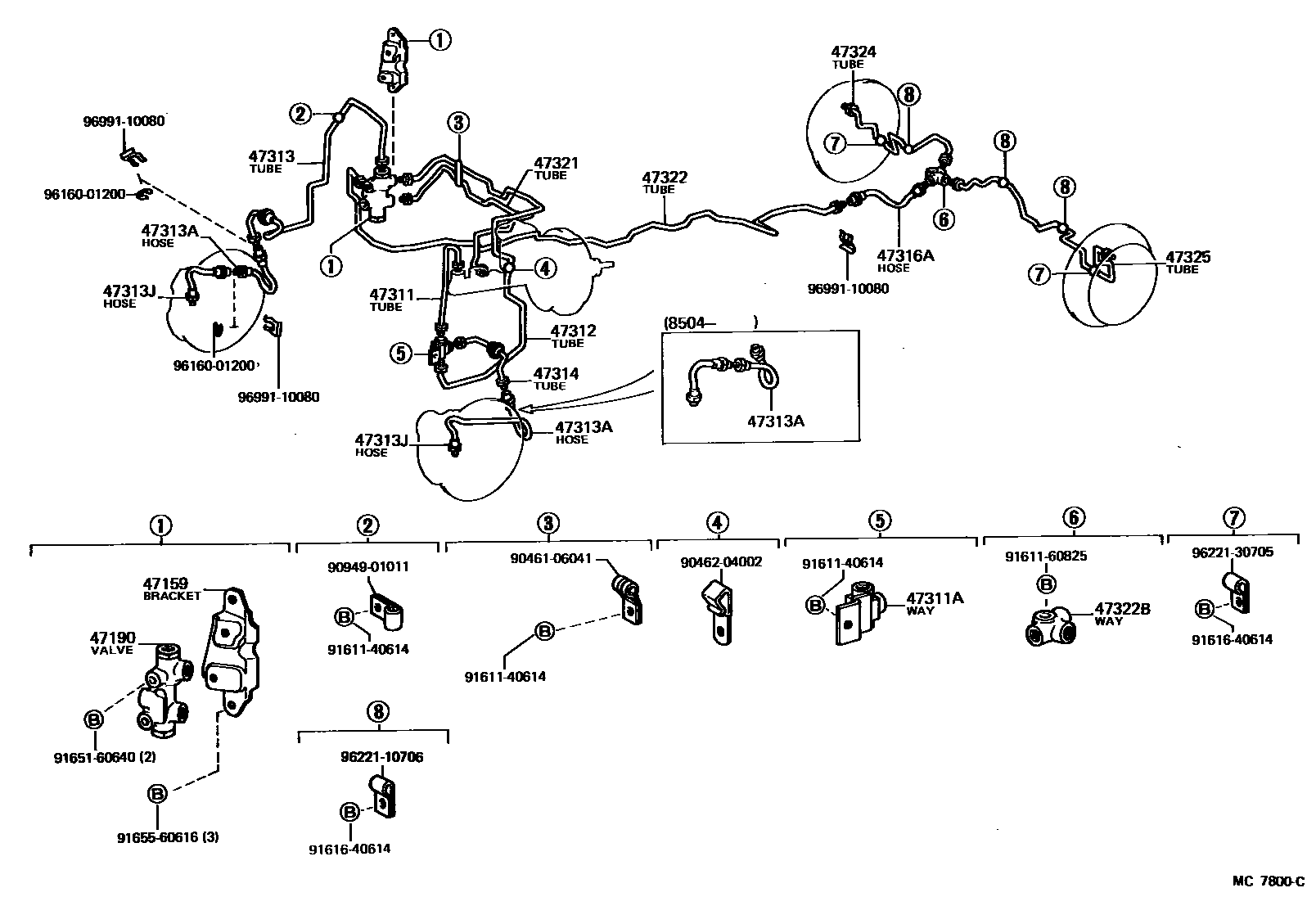

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47159BRACKET, PROPORTIONING VALVE

main47159-14040iRA6#198108-198305

main47159-14041iRA6#198305-198507

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14020iRA6#198108-198507

main47190-22040iMA61198108-198512

47311TUBE, FRONT BRAKE, NO.1

main47311-14220iRA6#198108-198507

main47311-14260iMA61198108-198512

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iRA6#198108-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-14120iRA6#198108-198507

main47312-14170iMA61198108-198512

47313TUBE, FRONT BRAKE, NO.3

main47313-14120iRA6#198108-198507

main47313-14150iMA61198108-198512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02424×2iMA61198108-198504

main90947-02427×2iRA6#198108-198504

main90947-02474×2iRA6#198504-198507

main90947-02475×2iMA61198504-198512

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32455×2iRA6#198108-198504

main96960-39955×2iMA61198108-198504

47314TUBE, FRONT BRAKE, NO.4

main47314-14090iRA6#198108-198507

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iRA64198108-198507

47321TUBE, REAR BRAKE, NO.1

main47321-14110iRA6#198108-198308

main47321-14150iMA61198108-198512

main47321-14170iRA6#198308-198507

47322TUBE, REAR BRAKE, NO.2

main47322-14160iRA64198108-198201

main47322-14161iRA64198201-198507

main47322-14200iRA65198208-198507

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iRA64198108-198507

main90413-10109iMA61,RA65198108-198512

47324TUBE, REAR BRAKE, NO.4

main47323-14042iRA64198108-198507

main47325-14030iMA61,RA65198108-198512

47325TUBE, REAR BRAKE, NO.5

main47324-14052iRA64..LB;RA64..CP..GT198108-198208

main47324-14072iRA64..CP..ST198108-198208

main47326-14030iMA61,RA65198108-198512

9046106041

main90461-06041

9046204002

main90462-04002

9094901011

main90949-01011

9161140614

main91611-40614

9161160825

main91611-60825

9161640614

main91616-40614

9165160640

main91651-60640

9165560616

main91655-60616

9616001200

main96160-01200

9622110706

main96221-10706

9622130705

main96221-30705

9699110080

main96991-10080

27 parts on this diagram · 3 diagrams in section
