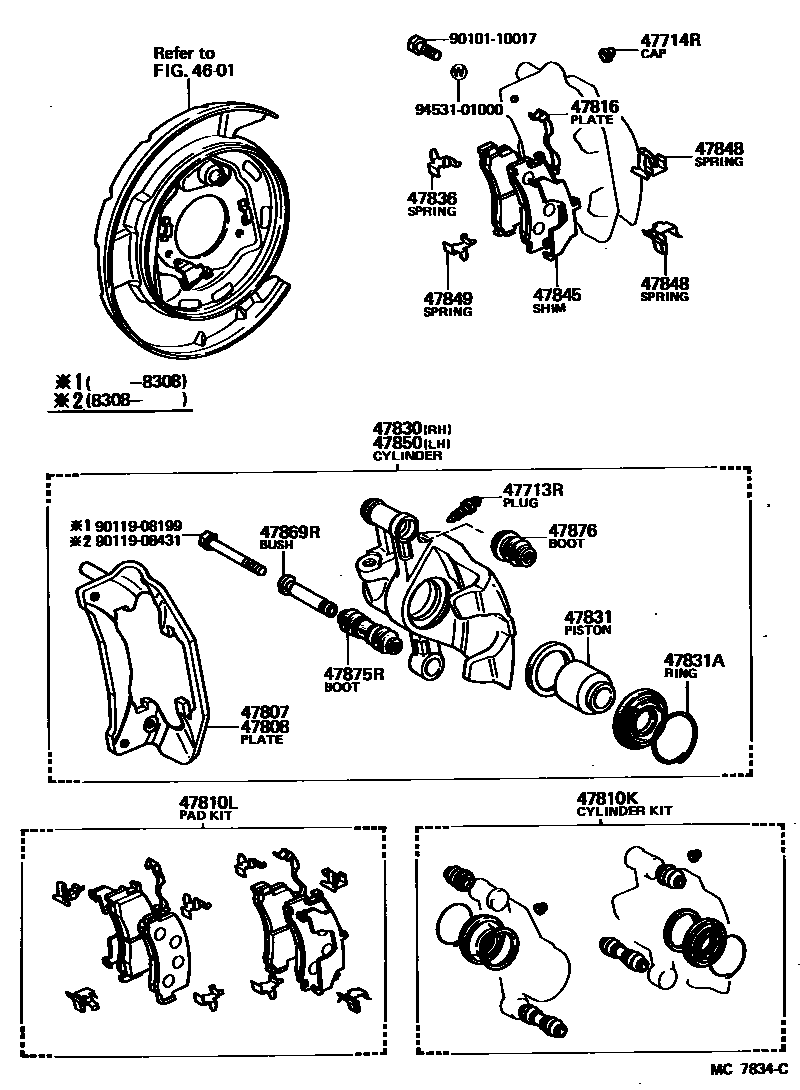

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMA61198108-198308

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMA61198108-198308

47807PLATE SUB-ASSY, DISC BRAKE TORQUE, RH

main47707-14020iMA61198108-198308

47808PLATE SUB-ASSY, DISC BRAKE TORQUE, LH

main47708-14020iMA61198108-198308

47810KCYLINDER KIT, DISC BRAKE, REAR

main04479-14080iMA61198108-198308

47810LPAD KIT, DISC BRAKE, REAR

main04492-14060iMA61198108-198208

main04492-14061iMA61198208-198308

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14090×2iMA61198108-198308

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-14130iMA61198108-198308

47831PISTON, REAR DISC BRAKE

main47731-14080×2iMA61198108-198308

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001×2iMA61198108-198308

47836PLATE, DISC BRAKE PAD GUIDE

main47736-14020×2iMA61198108-198308

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14060×2iMA61198108-198308

main47744-14090×2iMA61,RA65198308-198512

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47743-14040×2iMA61198108-198308

UPR

main47748-14050×2iMA61,RA65198308-198512

LWR

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47717-14040iMA61,RA65198308-198512

RH

main47718-14080iMA61198108-198308

LH

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14140iMA61198108-198308

47869RBUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-14010×2iMA61198108-198308

main47769-28010×2iMA61,RA65198308-198512

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2iMA61198108-198308

47876BOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14010×2iMA61198108-198308

9010110017

main90101-10017

9011908199

main90119-08199

9011908431

main90119-08431

9453101000

main94531-01000

23 parts on this diagram · 2 diagrams in section
