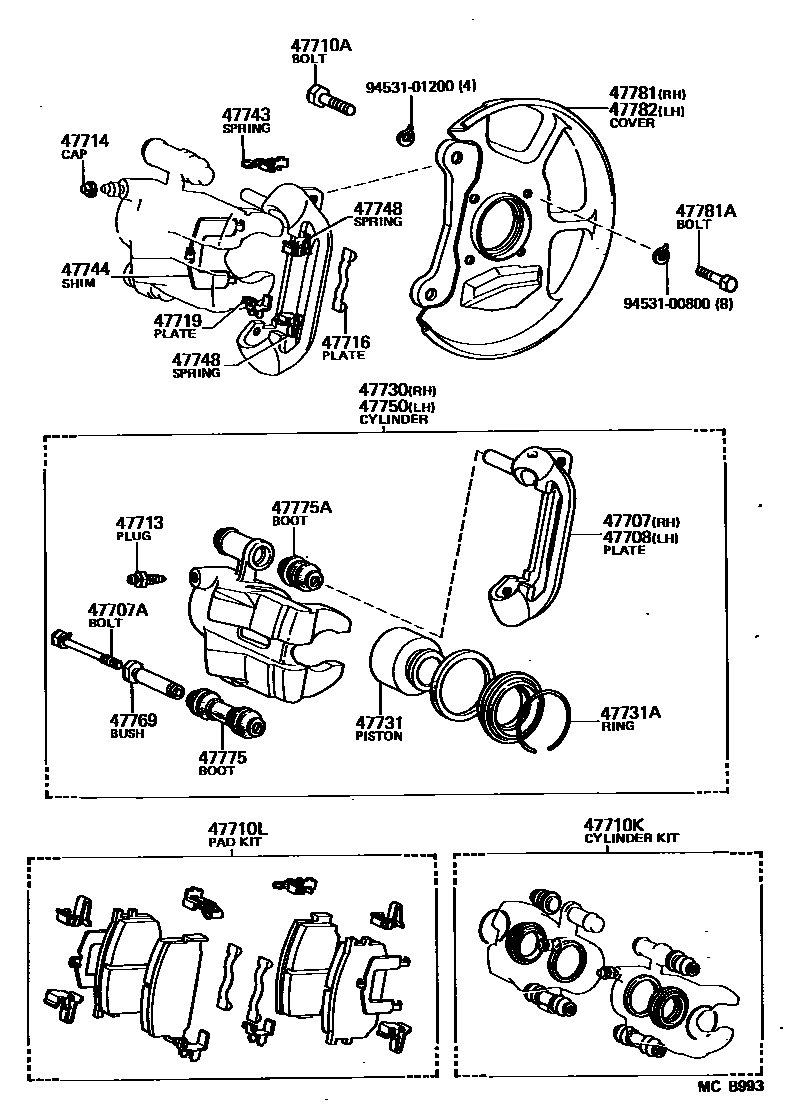

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14030iMA61,RA6#198108-198512

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199×2iMA61,RA6#198108-198308

main90119-08431×2iMA61,RA6#198308-198512

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14030iMA61,RA6#198108-198512

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12066×4iMA61,RA6#198108-198512

*12-1.25PX32.5-20.5

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14070iMA61,RA6#198108-198512

47710LPAD KIT, DISC BRAKE, FRONT

main04491-14130iMA61,RA64198108-198208

main04491-14131iMA61,RA6#198208-198512

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iMA61,RA6#198108-198512

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iMA61,RA6#198108-198512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14100×2iMA61,RA6#198108-198512

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-14030×2iMA61,RA6#198108-198512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14140iMA61,RA6#198108-198512

47731PISTON, FRONT DISC BRAKE

main47731-14090×2iMA61,RA6#198108-198512

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-69002×2iMA61,RA6#198108-198512

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iMA61,RA6#198108-198512

RH

main47718-14090iMA61,RA6#198108-198512

LH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14070×2iMA61,RA6#198108-198512

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040×2iMA61,RA6#198108-198512

LWR

main47748-14050×2iMA61,RA6#198108-198512

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14150iMA61,RA6#198108-198512

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010×2iMA61,RA6#198108-198308

sub47769-28H00

sub47769-28H01

main47769-28010×2iMA61,RA6#198308-198512

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010×2iMA61,RA6#198108-198512

47775ABOOT, PIN

main47776-14010×2iMA61,RA6#198108-198512

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14090iMA61,RA6#198108-198512

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iMA61,RA6#198108-198512

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14090iMA61,RA6#198108-198512

9453100800

main94531-00800

9453101200

main94531-01200

25 parts on this diagram · 2 diagrams in section
