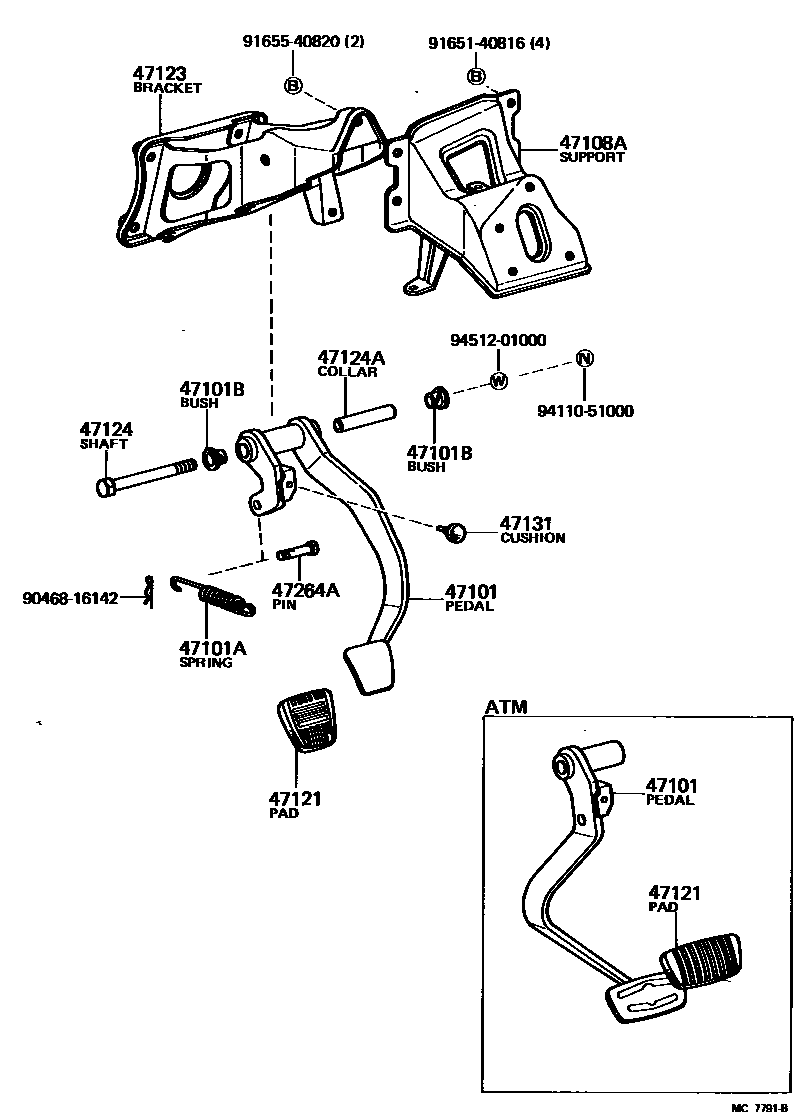

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-14100iMA61,RA6#..5F198108-198512

main47101-14110iMA61,RA6#..4FC198108-198512

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iMA61,RA6#198108-198512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iMA61198512-198512

main90386-13192×2iMA61,RA6#198108-198512

47108ASUPPORT SUB-ASSY, STEERING

main55108-14010iMA61,RA6#198108-198512

47121PAD, BRAKE PEDAL

main31321-14010iMA61,RA64..5F198108-198207

main31321-14020iMA61,RA6#..5F198207-198512

main47121-30050iMA61,RA6#..4FC198108-198512

47123BRACKET, BRAKE PEDAL

main55106-14250iMA61,RA6#198108-198308

main55106-14251iMA61,RA6#198308-198512

47124SHAFT, BRAKE PEDAL

main90101-10043iMA61,RA6#198108-198512

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iMA61,RA6#198108-198512

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iMA61,RA6#198108-198509

main90541-06032iMA61198509-198512

47264APIN(FOR PUSH ROD)

main90249-10064iMA61,RA6#198108-198512

9046816142

main90468-16142

9165140816

main91651-40816

9165540820

main91655-40820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
