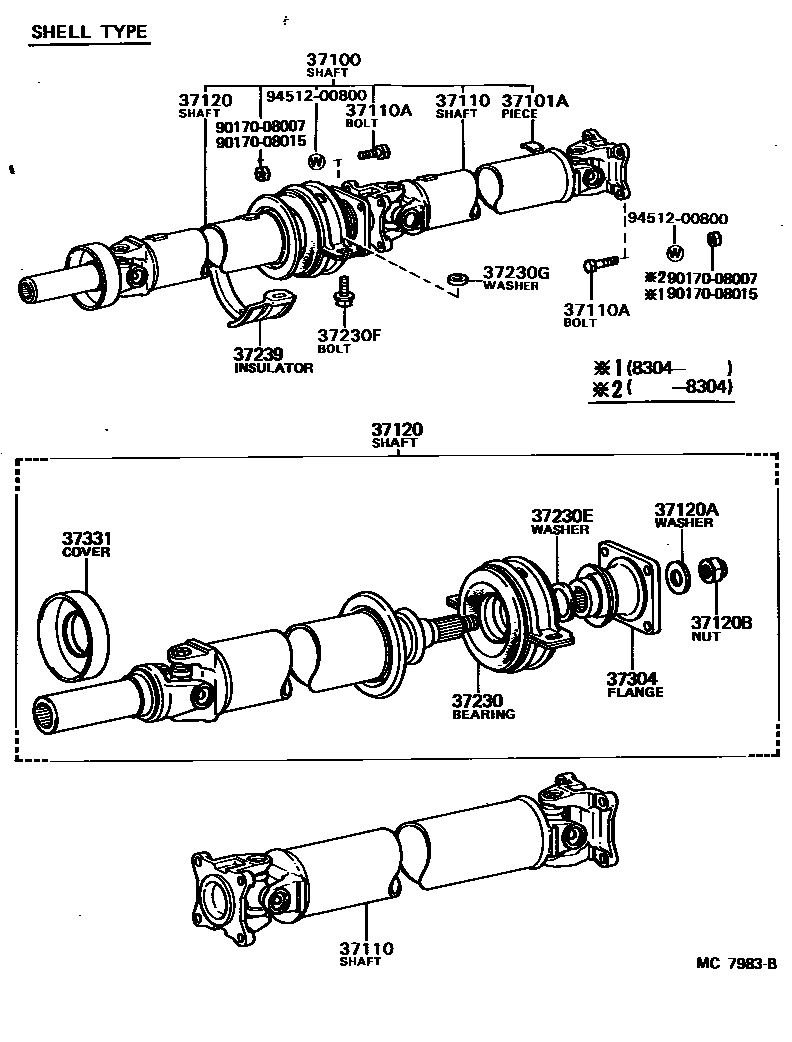

Toyota 252420 — PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37239INSULATOR, CENTER SUPPORT BEARING HEAT
37331COVER, SLIDING SHAFT DUST
9017008007
9017008015
9451200800
17 parts on this diagram · 1 diagram in section
PROPELLER SHAFT & UNIVERSAL JOINT for Toyota 252420
This section contains 17 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota 252420. Key components include: SHAFT ASSY, PROPELLER W/CENTER BEARING, PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT), SHAFT ASSY, PROPELLER, BOLT (FOR PROPELLER SHAFT), SHAFT ASSY, PROPELLER INTERMEDIATE.
