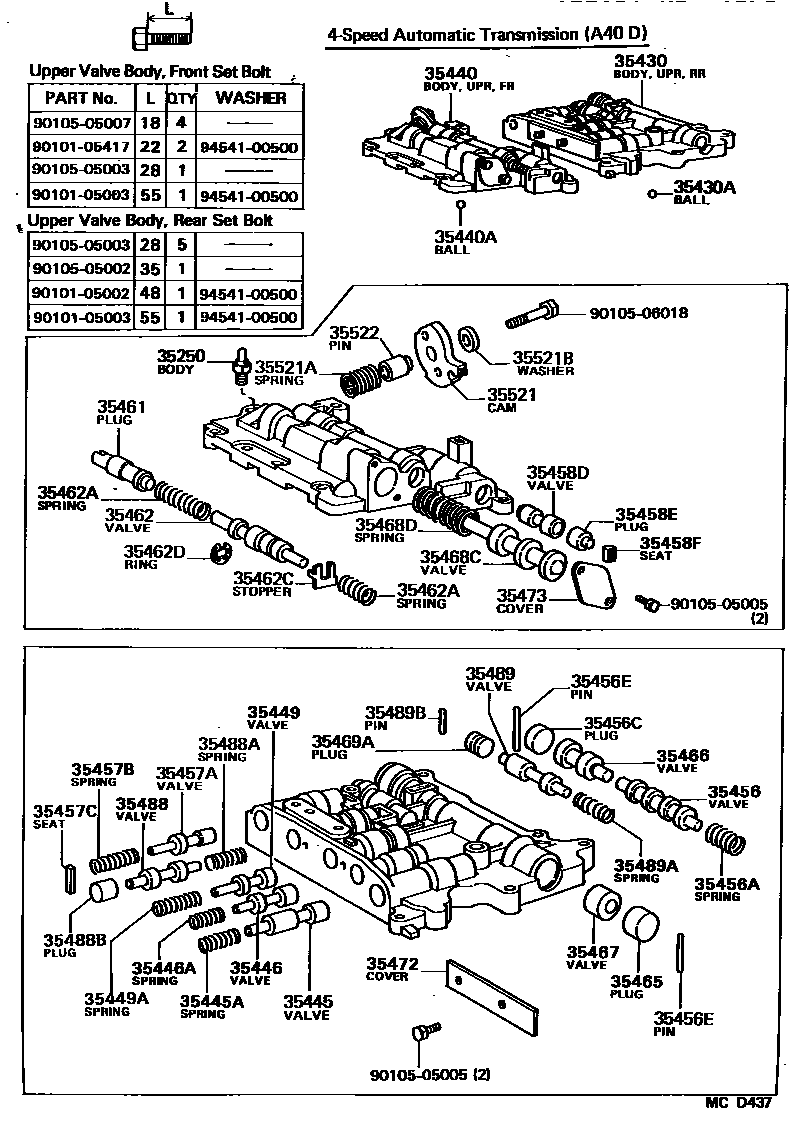

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

35250BODY ASSY, CHECK BALL

main35250-30010iRA6#..4FC198409-198512

35430BODY ASSY, REAR UPPER VALVE

main35430-22130iRA6#..4FC198108-198507

main35430-30070iMA61..4FC198108-198208

main35430-30120iMA61..4FC198208-198512

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×5iMA61,RA64..4FC198108-198208

OD=5.535,RUBBER,OD=5.56,GUM

main90360-06023iMA61,RA6#..4FC198108-198512

0D=5.56,OD=5.56,STEEL

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010iMA61..4FC198108-198208

main35440-20010iRA64..4FC198108-198208

main35440-30050iRA6#..4FC198208-198409

main35440-30051iRA6#..4FC198409-198507

main35440-30070iMA61..4FC198208-198512

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iRA6#..4FC198108-198507

OD=5.535,RUBBER

35445VALVE, LOW MODULATOR

main35445-22010iMA61,RA64..4FC198108-198208

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iRA6#..4FC198208-198507

35446VALVE, GOVERNOR MODULATOR

main35446-22010iMA61,RA64..4FC198108-198208

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iMA61,RA64..4FC198108-198208

35449VALVE, SEQUENCE

main35447-22010iMA61,RA64..4FC198108-198208

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12726iMA61,RA64..4FC198108-198208

35456VALVE, 2-3 SHIFT

main35456-22010iMA61..4FC198108-198208

main35456-30040iRA6#..4FC198108-198507

main35456-30050iMA61..4FC198208-198512

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iRA6#..4FC198108-198507

main90501-08724iMA61..4FC198108-198208

main90501-09028iMA61..4FC198208-198512

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iMA61..4FC198108-198208

main35452-30010iMA61..4FC198208-198512

main35452-30020iRA6#..4FC198108-198507

35456EPIN, STRAIGHT (FOR 2-3 SHIFT VALVE)

main90250-02004×2iRA6#..4FC198108-198507

35457AVALVE, DETENT REGULATOR

main35457-22010iMA61,RA64..4FC198108-198208

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iRA6#..4FC198108-198507

main90501-09007iMA61..4FC198108-198208

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iMA61,RA64..4FC198108-198208

35458DVALVE, CUT BACK

main35458-22010iMA61,RA64..4FC198108-198208

main35458-30020iMA61..4FC198208-198512

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iMA61,RA6#..4FC198108-198512

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010×2iMA61,RA6#..4FC198108-198512

35461PLUG, DOWN SHIFT

main35408-22010iRA64..4FC198108-198208

main35408-30010iMA61..4FC198108-198208

main35408-30020iMA61..4FC198208-198512

35462VALVE, THROTTLE

main35462-22011iMA61,RA6#..4FC198108-198512

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iMA61,RA6#..4FC198108-198512

L=19.24,SECONDARY,WD=0.71,CW=8

main90501-11011iMA61..4FC198208-198512

PRIMARY,WD=1.2,CW=9.4

main90501-11681iRA64..4FC198108-198208

PRIMARY,WD=1.19,CW=15.5

main90501-12011iRA6#..4FC198208-198507

L=39.71,PRIMARY,WD=1.19,CW=11.5

35462CSTOPPER, VALVE VIBRATING

main35422-22010iMA61,RA6#..4FC198108-198512

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iMA61,RA6#..4FC198108-198512

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iMA61..4FC198108-198208

main35465-30010iRA6#..4FC198108-198507

35466VALVE, 2-3 SHIFT LOWER

main35466-30011iRA6#..4FC198108-198507

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iMA61..4FC198108-198208

main35467-30020iRA6#..4FC198108-198507

35468CVALVE, SECONDARY REGULATOR

main35468-14010iMA61..4FC198108-198512

main35468-22010iRA6#..4FC198108-198507

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-19001iMA61,RA6#..4FC198108-198512

35469APLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE

main35469-30020iRA64..4FC198108-198208

35472COVER, VALVE BODY, NO.2

main35472-22010iMA61,RA64..4FC198108-198208

main35472-30010iMA61..4FC198208-198512

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iMA61,RA6#..4FC198108-198512

35488VALVE, 2-3 SHIFT TIMING

main35488-30010iRA6#..4FC198108-198507

35488ASPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)

main90501-09013iRA6#..4FC198108-198507

35488BPLUG, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE)

main90334-10001iRA6#..4FC198108-198507

35489VALVE, 3-2 KICK DOWN ORIFICE CONTROL

main35489-22020iRA6#..4FC198108-198507

35489ASPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

main90501-09015iRA6#..4FC198108-198507

main90501-12726iMA61..4FC198208-198507

35489BPIN, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

main90250-02007iRA6#..4FC198108-198507

35521CAM, THROTTLE VALVE

main35521-22020iRA64..4FC198108-198208

main35521-30010iRA6#..4FC198208-198507

main35521-30030iMA61..4FC198208-198512

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iMA61,RA6#..4FC198108-198512

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iMA61,RA6#..4FC198108-198512

35522PIN, THROTTLE VALVE CAM

main35522-22010iMA61,RA6#..4FC198108-198512

9010105002

main90101-05002

9010105003

main90101-05003

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

53 parts on this diagram · 9 diagrams in section
