TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

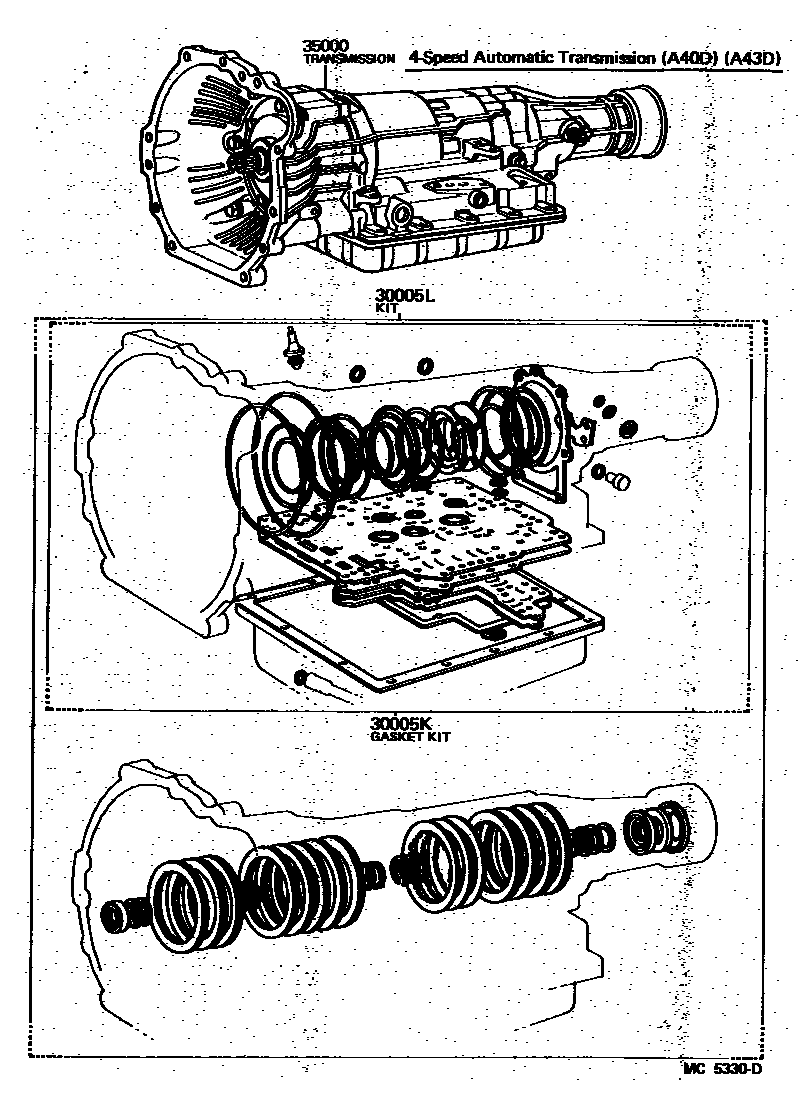

Parts diagram

30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14012i198108-198208

main04351-22032i198108-198507

main04351-30081i198208-198209

main04351-30082i198209-198512

30005LKIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-14023i198108-198208

main04352-14024i198208-198307

main04352-14041i198108-198208

main04352-14050i198307-198507

main04352-22030i198208-198209

main04352-22031i198209-198307

main04352-22040i198307-198512

35000TRANSMISSION ASSY, AUTOMATIC

main35000-14590i198108-198202

SMG R=17:6

main35000-14591i198202-198208

SMG R=17:6

main35000-14600i198108-198202

SMG R=18:6

main35000-14601i198202-198208

SMG R=18:6

main35000-14660i198108-198208

SMG R=20:6

main35000-14690i198210-198507

SMG R=17:6

main35000-14710i198208-198507

SMG R=18:6

main35000-14720i198208-198308

SMG R=20:6

main35000-14840i198308-198512

SMG R=20:6

3 parts on this diagram · 1 diagram in section
