TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

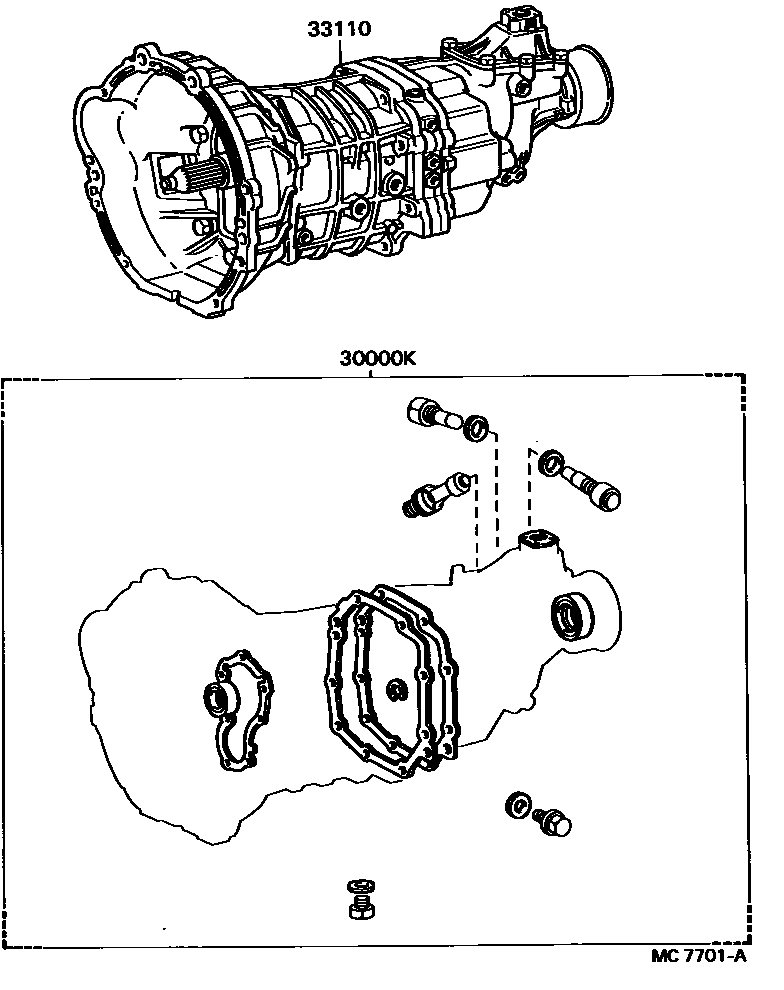

Parts diagram

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050i198108-198512

33110TRANSMISSION ASSY, MANUAL

main33030-14650i198108-198507

SMG=11

main33030-14670i198108-198408

SMG=11

main33030-14680i198108-198208

SMG=10,PERFORMANCE PACKAGE

main33030-14740i198208-198512

SMG=10,PERFORMANCE PACKAGE

2 parts on this diagram · 1 diagram in section
