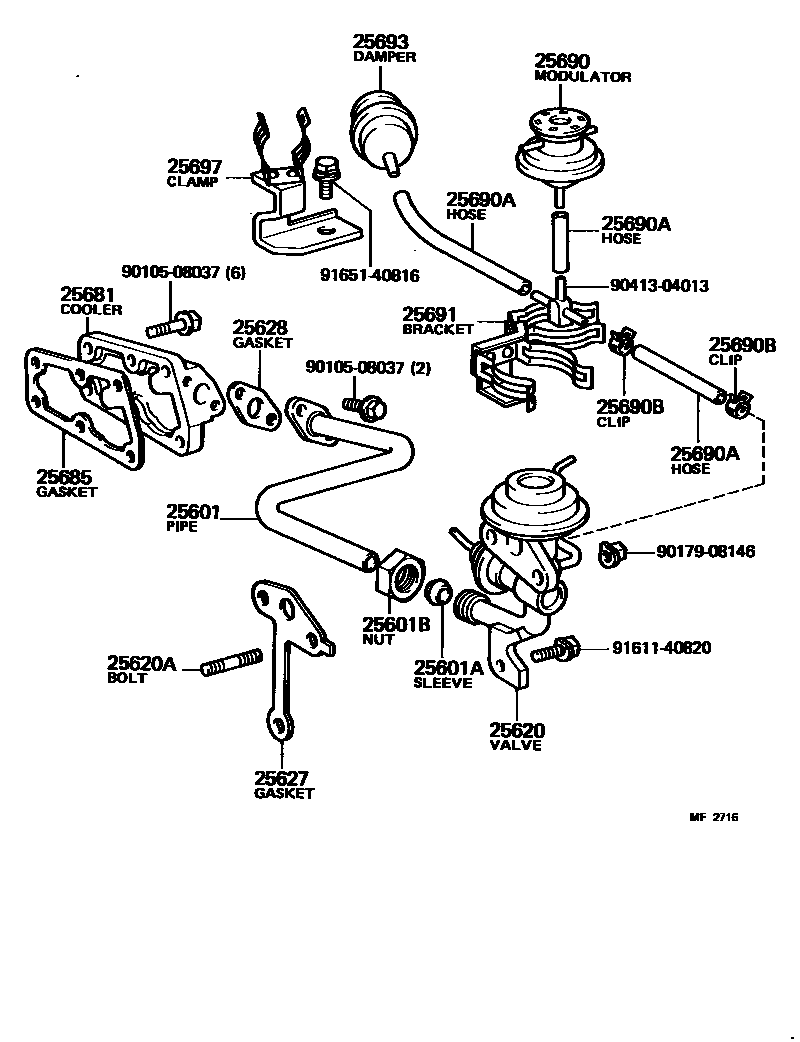

Toyota 252420 — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25620VALVE ASSY, EGR
25620ABOLT, STUD(FOR EGR VALVE)
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25690BCLIP(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
25693DAMPER, EGR VACUUM MODULATOR
25697CLAMP, EGR DAMPER
9010508037
9017908146
9041304013
9161140820
9165140816
20 parts on this diagram · 5 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota 252420
This section contains 31 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota 252420. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
