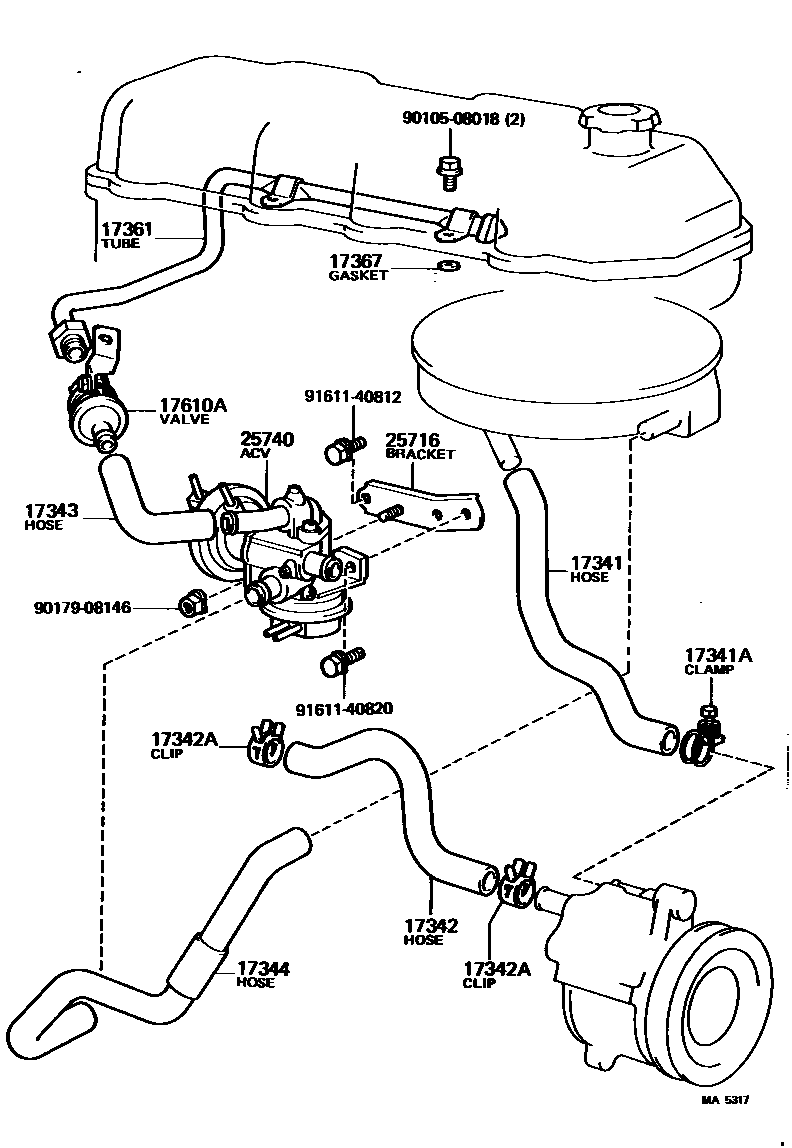

Toyota 252420 — MANIFOLD AIR INJECTION SYSTEM
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17361TUBE, AIR
17367GASKET, AIR TUBE
17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)
25716BRACKET, AIR SWITCHING VALVE
25740VALVE ASSY, AIR CONTROL
9010508018
9017908146
9161140812
9161140820
15 parts on this diagram · 3 diagrams in section
MANIFOLD AIR INJECTION SYSTEM for Toyota 252420
This section contains 26 genuine Toyota parts for the MANIFOLD AIR INJECTION SYSTEM system of the Toyota 252420. Key components include: VALVE SUB-ASSY, REED, HOSE, NO.1(FOR AIR INJECTION SYSTEM), CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1), HOSE, NO.2(FOR AIR INJECTION SYSTEM), CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2).
