Toyota 252420 — MANIFOLD

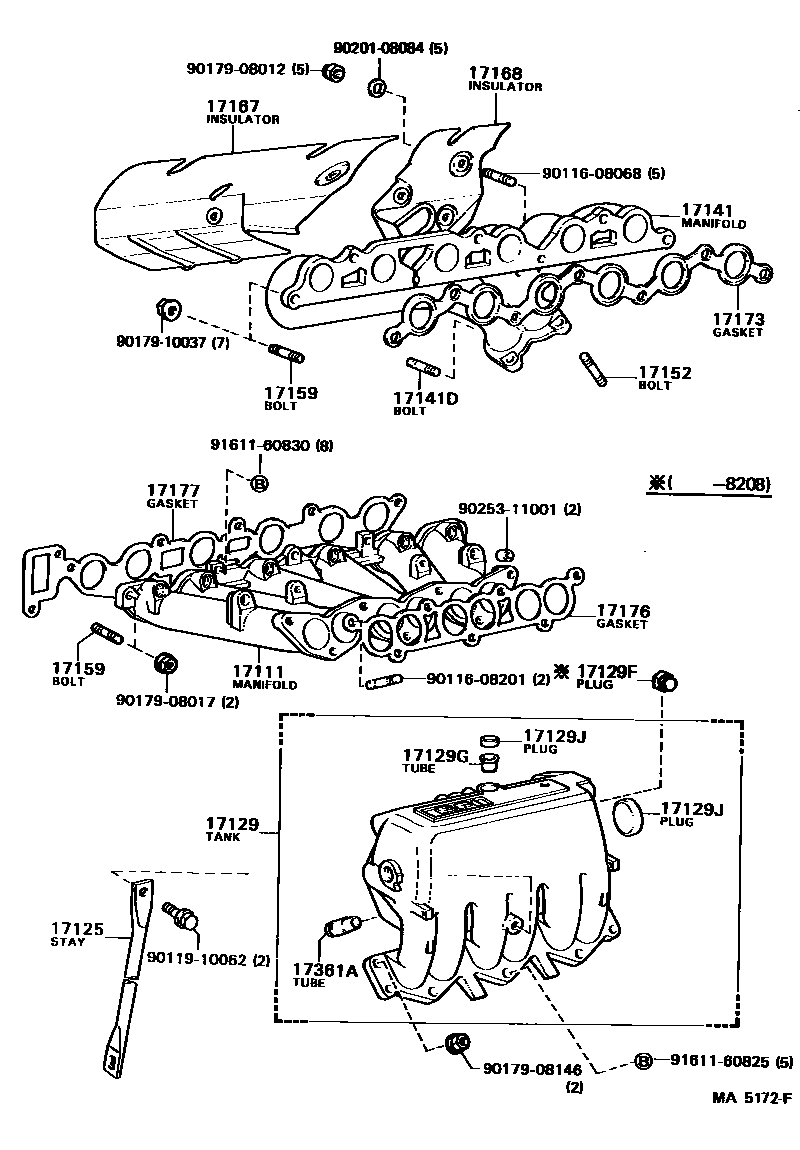

Parts diagram

17111MANIFOLD, INTAKE

17125STAY, SURGE TANK, NO.1

17129TANK, INTAKE AIR SURGE

17129FPLUG, INTAKE MANIFOLD SUCTION HOLE

17129GTUBE, EGR INLET

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

17141MANIFOLD, EXHAUST

17141DBOLT, STUD(FOR OXYGEN SENSOR)

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17361ATUBE, AIR(FOR EFI)

9011608068

9011608201

9011910062

9017908012

9017908017

9017908146

9017910037

9020108084

9025311001

9161160825

9161160830

27 parts on this diagram · 8 diagrams in section

MANIFOLD for Toyota 252420

This section contains 59 genuine Toyota parts for the MANIFOLD system of the Toyota 252420. Key components include: GASKET, WATER BY-PASS, FLANGE, WATER BY-PASS, MANIFOLD, INTAKE, PLUG, NO.1, PLUG, NO.2.
