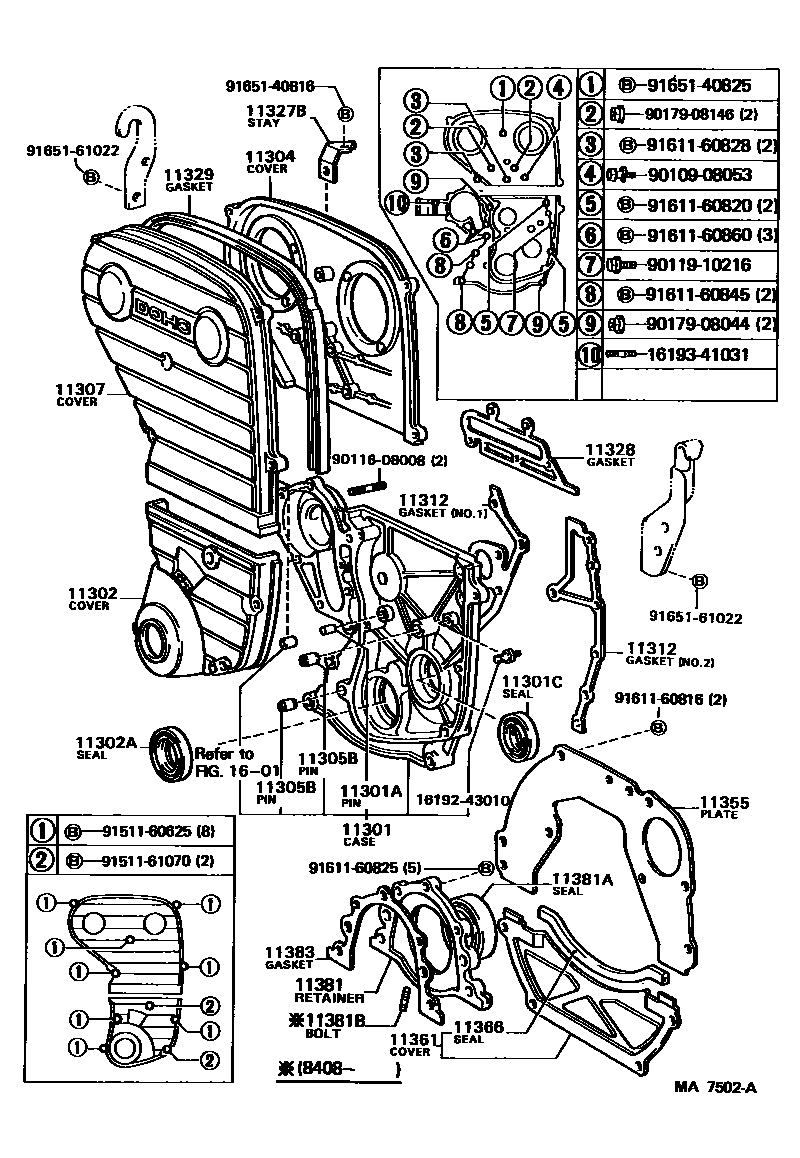

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-43010i5MGE..MA61198108-198408

main11301-43020i5MGE..MA61198408-198512

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08074i5MGE..MA61198108-198512

L=15,OD=8

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i5MGE..MA61198108-198512

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22REC..RA6#198408-198507

main11302-38010i22R#..RA6#198108-198408

main11321-42010i5MGE..MA61198502-198512

main11321-43010i5MGE..MA61198108-198502

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45002i22R#..RA6#198108-198310

main90311-45006i22REC..RA6#198310-198507

main90311-48004i5MGE..MA61198108-198512

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-43010i5MGE..MA61198108-198512

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001i5MGE..MA61198108-198512

OD=11

main90253-13013i5MGE..MA61198108-198512

OD=13

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-43010i5MGE..MA61198108-198512

11312GASKET, FRONT END PLATE

main11312-43010i5MGE..MA61198108-198512

NO.1

main11313-43010i5MGE..MA61198108-198512

NO.2

11327BSTAY, TIMING BELT COVER

main11327-43010i5MGE..MA61198108-198512

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35010i22R#..RA6#198209-198408

main11328-35020i22REC..RA6#198408-198507

main11328-38020i22R#..RA6#198108-198209

main11328-43010i5MGE..MA61198108-198512

11329GASKET, TIMING GEAR REAR COVER

main11329-43010i5MGE..MA61198108-198512

11355PLATE, REAR END

main11355-35010i22R#..RA6#..5F198306-198507

main11355-35020i22REC..RA6#..4FC198306-198412

main11355-35030i22REC..RA6#..4FC198412-198507

main11355-38011i22R#..RA6#..5F198108-198306

main11355-38021i22R#..RA64..4FC198108-198306

main11355-41010i5MGE..MA61198108-198512

11361COVER, FLYWHEEL HOUSING UNDER

main11361-45010i5MGE..MA61198108-198512

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main31131-30010i5MGE..MA61198108-198512

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R#..RA6#198108-198507

main11381-41011i5MGE..MA61198108-198408

main11381-43010i5MGE..MA61198408-198512

11381ASEAL, ENGINE REAR OIL

main90311-80001i22R#..RA6#; 5MGE..MA61198108-198306

TC80 100 12

main90311-80004i22R#..RA6#198306-198507

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-08037×2i5MGE..MA61198408-198512

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-33010i22R#..RA6#198108-198209

main11383-35010i22R#..RA6#198209-198507

main11383-41010i5MGE..MA61198108-198512

1601WATER PUMP

→ Go to FIG 16-01

1619243010

main16192-43010

1619341031BOLT, STUD(FOR WATER PUMP COVER)

main16193-41031

9010908053

main90109-08053

9011608008

main90116-08008

9011910216

main90119-10216

9017908044

main90179-08044

9017908146

main90179-08146

9151160625

main91511-60625

9151161070

main91511-61070

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9161160828

main91611-60828

9161160845

main91611-60845

9161160860

main91611-60860

9165140816

main91651-40816

9165140825

main91651-40825

9165161022

main91651-61022

38 parts on this diagram · 4 diagrams in section
