ENGINE OVERHAUL GASKET KIT

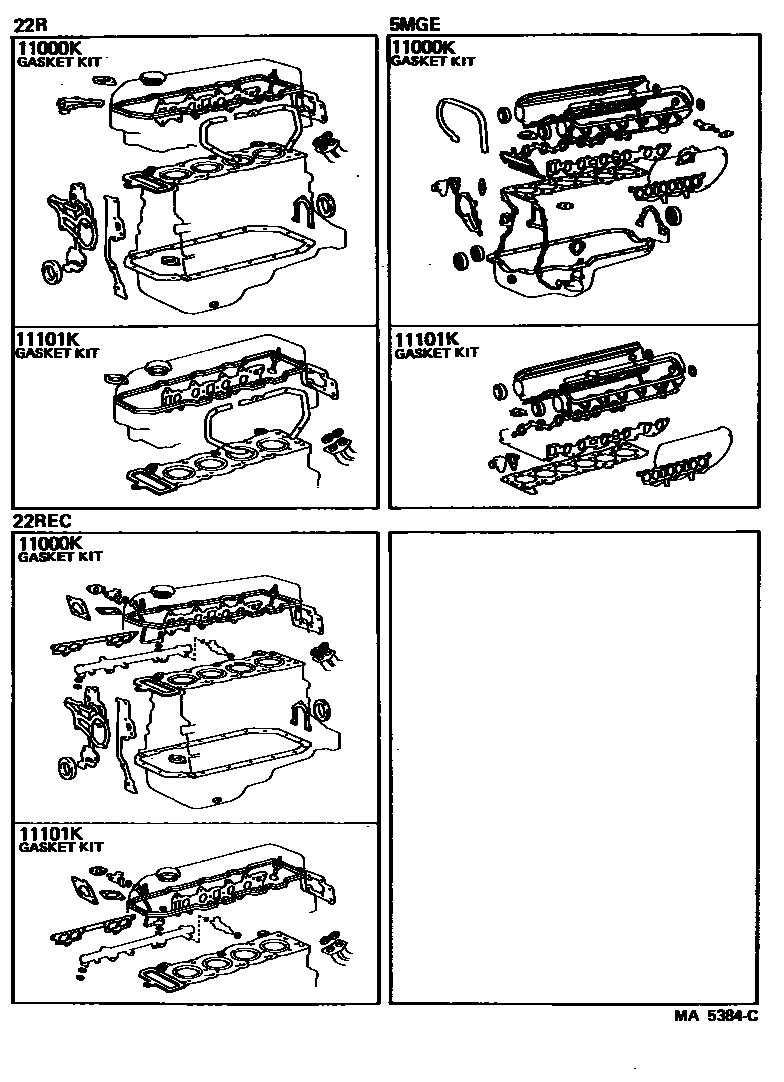

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-35021i198108-198208

main04111-35022i198208-198308

main04111-35030i198208-198408

main04111-35070i198408-198507

main04111-43030i198108-198308

main04111-43040i198308-198512

main04111-43050i198308-198512

PARFORMANCE PACK

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-35011i198108-198208

main04112-35012i198208-198308

main04112-35020i198208-198408

main04112-35060i198408-198507

main04112-43030i198108-198308

main04112-43041i198308-198512

main04112-43051i198308-198512

PARFORMANCE PACK

2 parts on this diagram · 1 diagram in section
