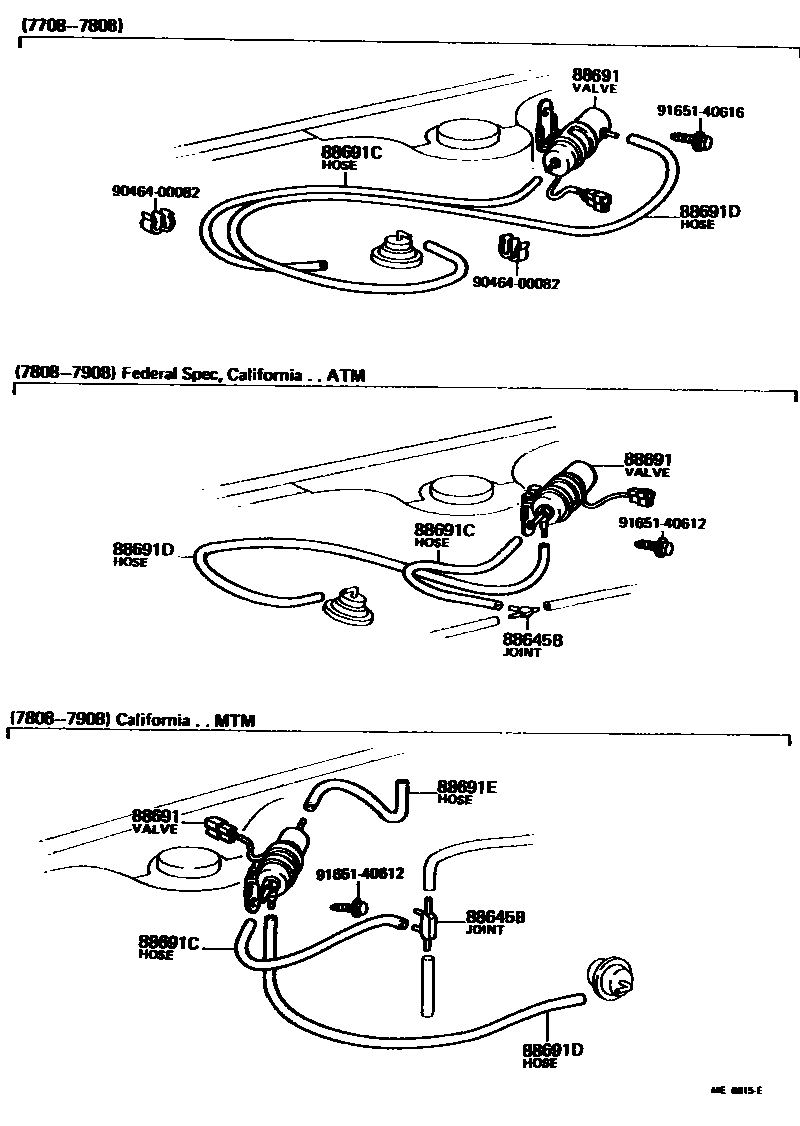

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iRA42..3FC; RA42..MTM197808-197908

FEDERAL SPEC

main90413-04005×2iRA4#197908-198107

main90414-04002iRA42..MTM197808-197908

CALIFORNIA SPEC

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-14030iRA42..3FC197708-197808

main88690-14260iRA42197908-198008

main88690-14350iMA4#197908-198107

W/AUTOMATIC AIR CONDITIONER

main88690-14481iRA43198105-198107

USA SPEC

main88690-14490iRA43198008-198105

USA SPEC

main88690-20170iRA42..3FC; RA42..MTM197808-197908

FEDERAL SPEC

main88690-20180iRA42..MTM197808-197908

CALIFORNIA SPEC

main88690-20350iRA43198008-198105

W/O HEATER

main88690-20360iRA43198105-198107

W/O HEATER

main88690-22130iMA4#197901-198107

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-22010iMA46197901-197908

main88689-22020iMA4#197908-198107

main95411-10030iRA42197808-197908

*H,L=180,MARK=#0

main95411-10160iRA42..3FC197708-197808

*H,L=540,MARK=#1

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main95411-10030iRA42197908-198008

*H,L=100,MARK=#0; *H,L=220,MARK=#0,W/O HEATER

main95411-10060iRA43198008-198107

*H,L=330,MARK=#0

main95411-19960iRA42197808-197908

*H,L=540,MARK=#*

main95411-19995iRA42..3FC197708-197808

*H,L=650,MARK=#*

88691EHOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

main95411-10030iRA43198008-198107

*H,L=60,MARK=#0

main95411-10160iRA43198008-198107

*H,L=330,MARK=#1,W/O HEATER

main95411-19930iRA42..MTM197808-197908

*H,L=240,MARK=#*

9046400082

main90464-00082

9165140612

main91651-40612

9165140616

main91651-40616

8 parts on this diagram · 4 diagrams in section
