Toyota 252420 — WINDSHIELD WIPER

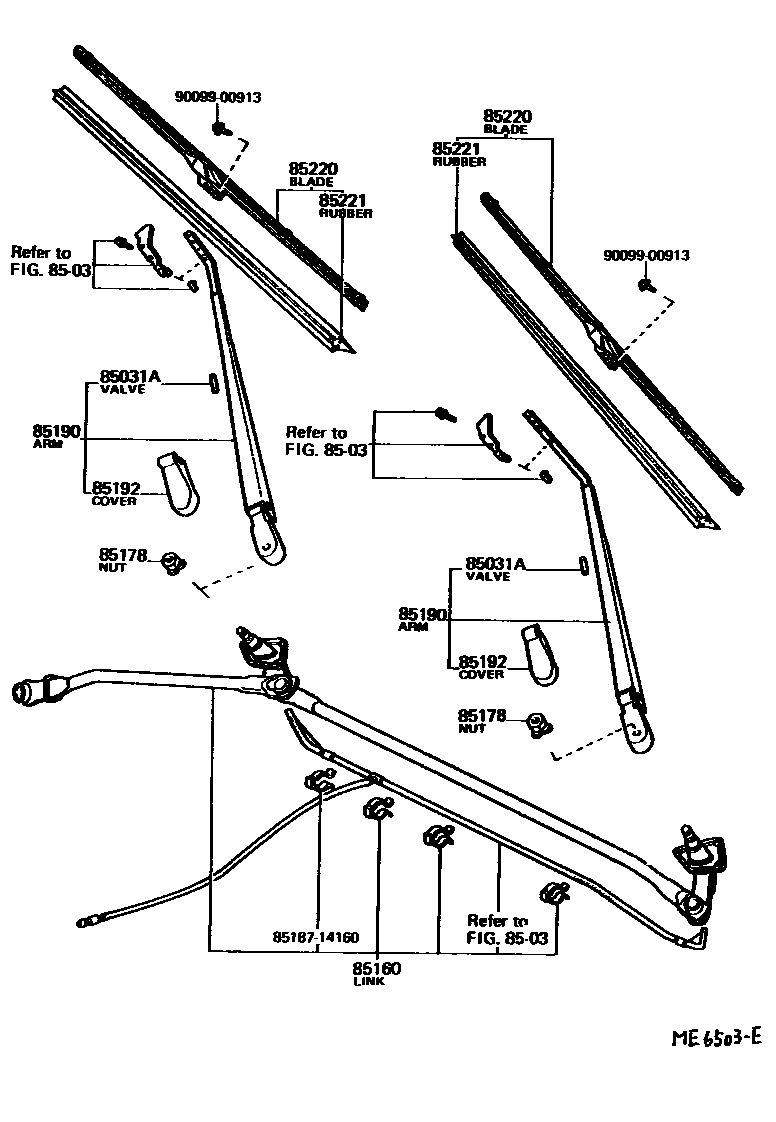

Parts diagram

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031AVALVE SUB-ASSY, WASHER

85160LINK ASSY, WINDSHIELD WIPER

85178NUT (FOR FRONT WIPER ARM SETTING)

85190ARM ASSY, WINDSHIELD WIPER

85192COVER, WINDSHIELD WIPER ARM

85220BLADE ASSY, WINDSHIELD WIPER

85221BLADE, WINDSHIELD WIPER

8518714160COVER, ROLLER GUIDE

9009900913

10 parts on this diagram · 3 diagrams in section

WINDSHIELD WIPER for Toyota 252420

This section contains 25 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 252420. Key components include: WINDSHIELD WASHER, VALVE SUB-ASSY, WASHER, MOTOR ASSY, WINDSHIELD WIPER, GEAR, WINDSHIELD WIPER MOTOR, BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER.
