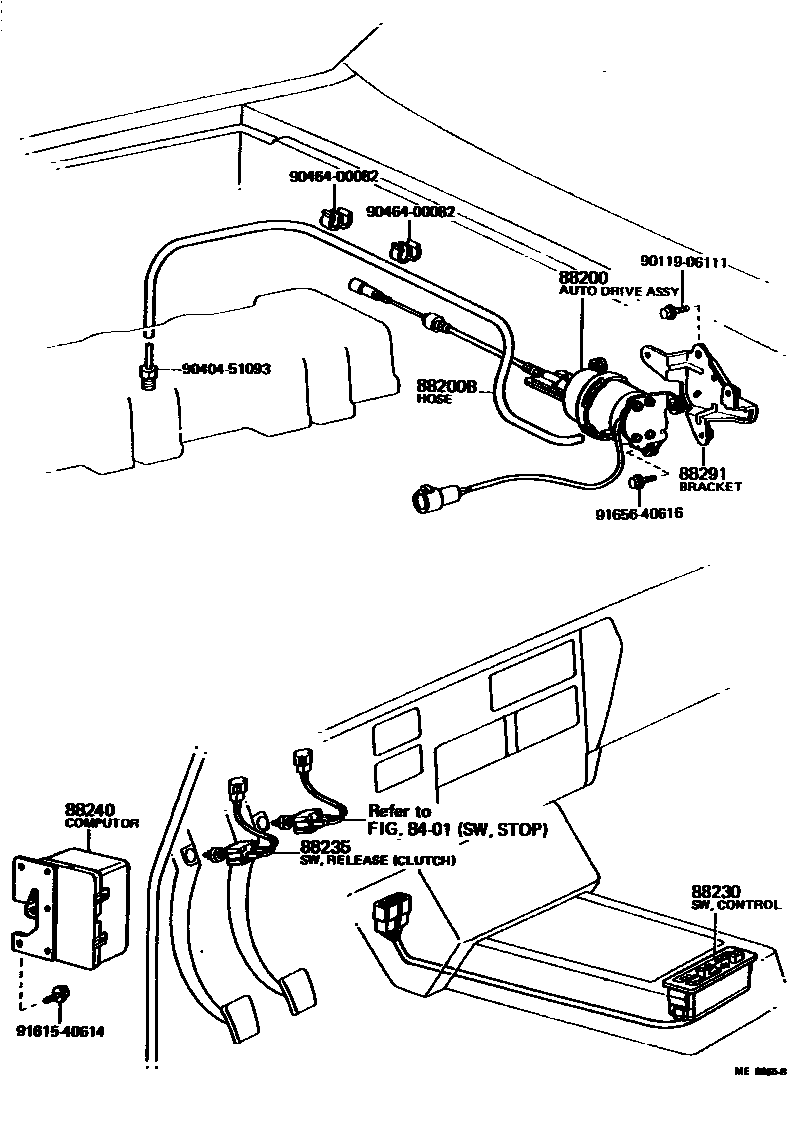

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88200CRUISE CONTROL ASSY

main88200-14020iMA46197901-198008

main88200-14021iMA47198008-198107

main88200-20010iRA43198008-198107

88200BHOSE, CRUISE CONTROL VACUUM

main90445-08197iRA43198008-198107

L=1050

main95411-19930iMA4#198002-198107

*H,L=180,MARK=#*

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-14020iMA46197901-197908

main88230-14040iMA46197908-198008

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-14010iMA46..5F197901-198008

main88280-14011iMA47..5F198008-198107

main88280-14020iRA43..5F198008-198107

88240COMPUTER ASSY, CRUISE CONTROL

main88240-14020iMA46197901-197908

main88240-14021iMA46197908-197911

main88240-14022iMA4#197911-198107

main88240-14030iRA43198008-198107

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-14020iMA4#197901-198107

main88291-20010iRA43198008-198107

9011906111

main90119-06111

9040451093

main90404-51093

9046400082

main90464-00082

9161540614

main91615-40614

9165640616

main91656-40616

12 parts on this diagram · 2 diagrams in section
