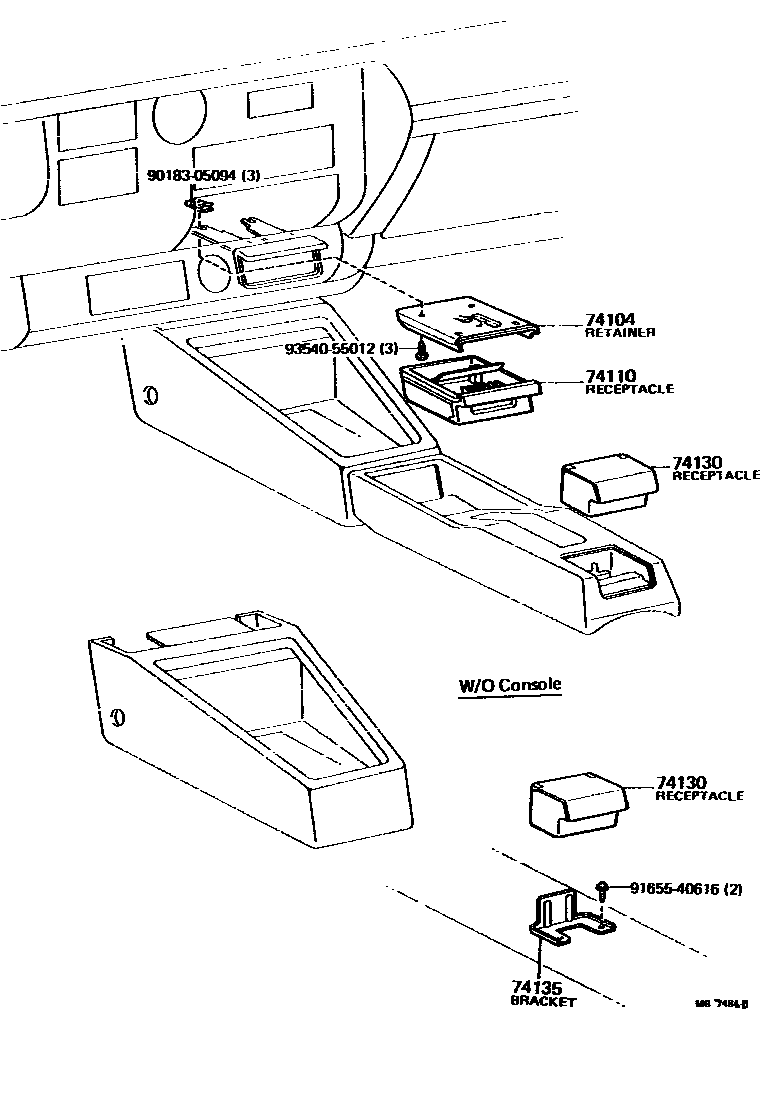

ASH RECEPTACLE

0001 1 0003 1

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-14060iRA42..3FC..LT197708-197801

main74104-14070iRA42..3FC..LT197708-197801

main74104-14090iRA42..3FC..LT197801-197811

main74104-14100iRA42..3FC..LT197801-197811

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-14080iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

74130RECEPTACLE ASSY, REAR ASH

main74130-12030-01iRA42..3FC..LT197708-197807

BLACK,BLACK

main74130-12030-04iRA42..3FC..LT197708-197807

BLUE,BLUE

main74130-12030-16iRA42..3FC..LT197708-197807

LIGHT BROWN,BROWN

main74130-20060-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

main74130-20060-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main74130-20060-05iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

BEIGE,BEIGE

main74130-20060-26iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

74135BRACKET, REAR ASH RECEPTACLE

main74149-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

9018305094

main90183-05094

9165540616

main91655-40616

9354055012

main93540-55012

7 parts on this diagram · 2 diagrams in section
