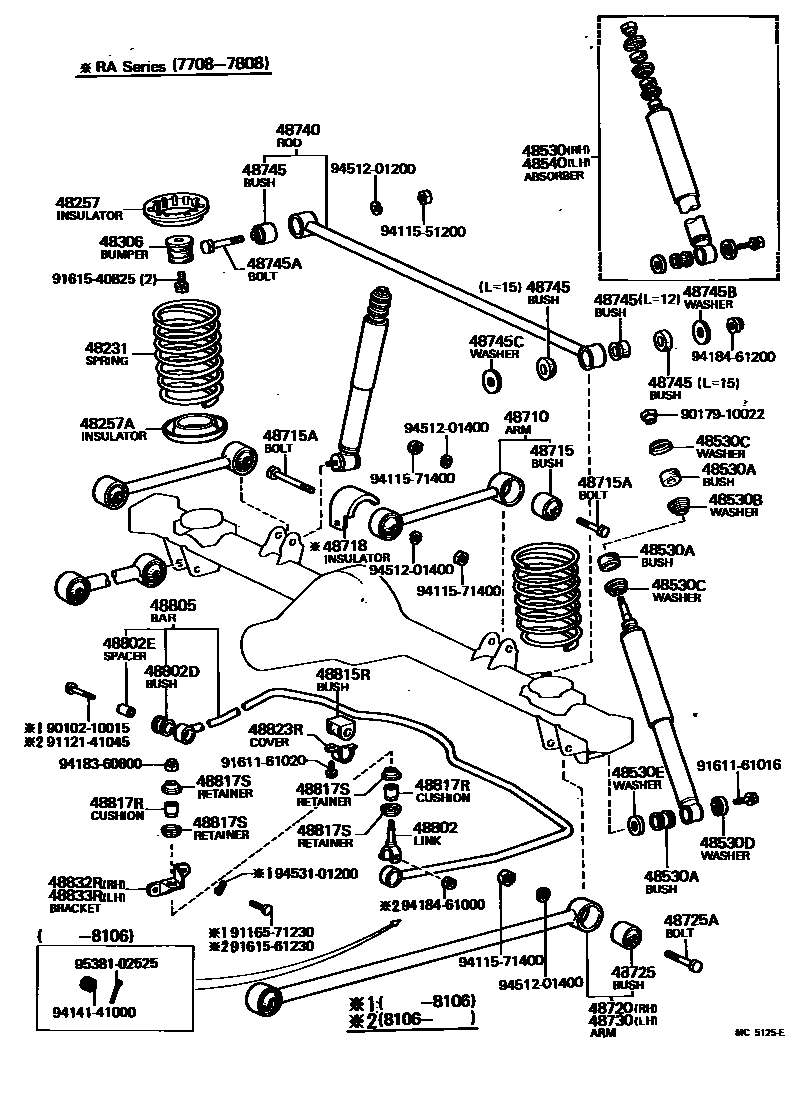

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-14400×2iMA46197901-198008

COLD SPEC

main48231-14450iRA42..CP197708-197808

main48231-14470iRA42..LB197708-198004

main48231-14530×2iMA47198008-198107

PERFORMANCE PACKAGE

main48231-14610×2iMA47198106-198107

main48231-20010×2iRA43..CP198008-198107

main48231-20030×2iMA46197901-198008

main48231-20050×2iRA42..LB198004-198008

main48231-20070×2iRA42..CP198004-198008

48257INSULATOR, REAR COIL SPRING

main48257-14020×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19435iRA42..3FC..LT197712-197805

main48531-19465iRA42..3FC..LT197708-197712

main48531-19545iRA43..CP..5F..GT198008-198107

PERFORMANCE PACKAGE

main48531-19565iMA46,RA42..(3FC,5F)..(LT,SPR)197805-198004

main48531-19615iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main48531-19725iRA43..CP..5F..GT198008-198107

main48531-29685iMA46,RA42..(3FC,5F)..(LT,SPR)198004-198008

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iRA43..CP..5F..GT198008-198107

LWR

main90385-16060×2iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

LWR

main90540-10002×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197910-198107

OD=30,ID=10,UPR

main90540-10004×2iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197910

OD=30,ID=10,UPR

main90540-10005×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

OD=30,ID=10&14,UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007×2iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197910

main90948-02050×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197910-198107

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

LWR

main90948-02045×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19435iRA42..3FC..LT197712-197805

main48531-19465iRA42..3FC..LT197708-197712

main48531-19545iRA43..CP..5F..GT198008-198107

PERFORMANCE PACKAGE

main48531-19565iMA46,RA42..(3FC,5F)..(LT,SPR)197805-198004

main48531-19615iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main48531-19725iRA43..CP..5F..GT198008-198107

main48531-29685iMA46,RA42..(3FC,5F)..(LT,SPR)198004-198008

48710ARM ASSY, UPPER CONTROL

main48710-14040×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main48710-14050×2iRA43..CP..5F..GT198008-198107

PERFORMANCE PACKAGE

main48710-14060×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

48715BUSH, UPPER CONTROL ARM

main48702-14010×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main48702-14020×4iRA43..CP..5F..GT198008-198107

PERFORMANCE PACKAGE

main48702-22060×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-14002×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

*14-1.5PX141-23

main90101-14007×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

*14-1.5PX76-21

main90105-14006×2iRA43..CP..5F..GT198106-198107

*14-1.5PX77-28

main90105-14009×2iRA43..CP..5F..GT198106-198107

*14-1.5PX141-25

48718INSULATOR, UPPER CONTROL ARM BUSH HEAT

main48719-14010iRA42..3FC..LT197708-197808

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48725BUSH, LOWER CONTROL ARM

main48702-14020×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-14007×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

*14-1.5PX76-21

main90105-14006×4iRA43..CP..5F..GT198106-198107

*14-1.5PX77-28

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48740ROD ASSY, REAR LATERAL CONTROL

main48740-14040iRA42..3FC..LT197708-197803

OD=19.0

main48740-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197803-198107

OD=25.4

48745BUSH, LATERAL CONTROL ROD

main48706-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BODY SIDE

main90385-20001×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

L=15,HOUSING SIDE

main90386-20001iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

main90106-12002iRA43..CP..5F..GT198008-198107

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

48802LINK SUB-ASSY, STABILIZER

main48802-14020×2iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main48802-14040×2iRA43..CP..5F..GT198106-198107

48802DBUSH, STABILIZER LINK

main90385-11021×2iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197908-197910

OD=11

main48805-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197910-198004

OD=13

main48805-14030iRA43..CP..5F..GT198008-198107

OD=14

main48805-14040iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

OD=15

main48805-14070iRA43..CP..5F..GT198008-198107

OD=17,PERFORMANCE PACKAGE

main48805-14100iRA43..CP..5F..GT198106-198107

OD=14

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030×2iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

main48815-14050×2iMA46,RA42..(3FC,5F)..(LT,SPR)197910-198004

main48815-14060×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198004-198107

main48815-20020×2iRA43..CP..5F..GT198008-198107

PERFORMANCE PACKAGE

main48815-22020×2iMA46,RA42..(3FC,5F)..(LT,SPR)197908-197910

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iRA43..CP..5F..GT198106-198107

main48817-30010×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197910-198106

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015×4iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

T=1.2

main90948-02024×4iRA43..CP..5F..GT198106-198107

T=1.2

main90948-02025×4iRA43..CP..5F..GT198106-198107

T=1.0

main90948-02032×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197910-198106

T=1.6

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22020×2iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main48832-14030iRA43..CP..5F..GT198106-198107

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main48833-14020iRA43..CP..5F..GT198106-198107

9010210015

main90102-10015

9017910022

main90179-10022

9112141045

main91121-41045

9116571230

main91165-71230

9161161016

main91611-61016

9161161020

main91611-61020

9161540825

main91615-40825

9161561230

main91615-61230

9411551200

main94115-51200

9411571400

main94115-71400

9414141000

main94141-41000

9418360800

main94183-60800

9418461000

main94184-61000

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

9453101200

main94531-01200

9538102525

main95381-02525

52 parts on this diagram · 1 diagram in section
