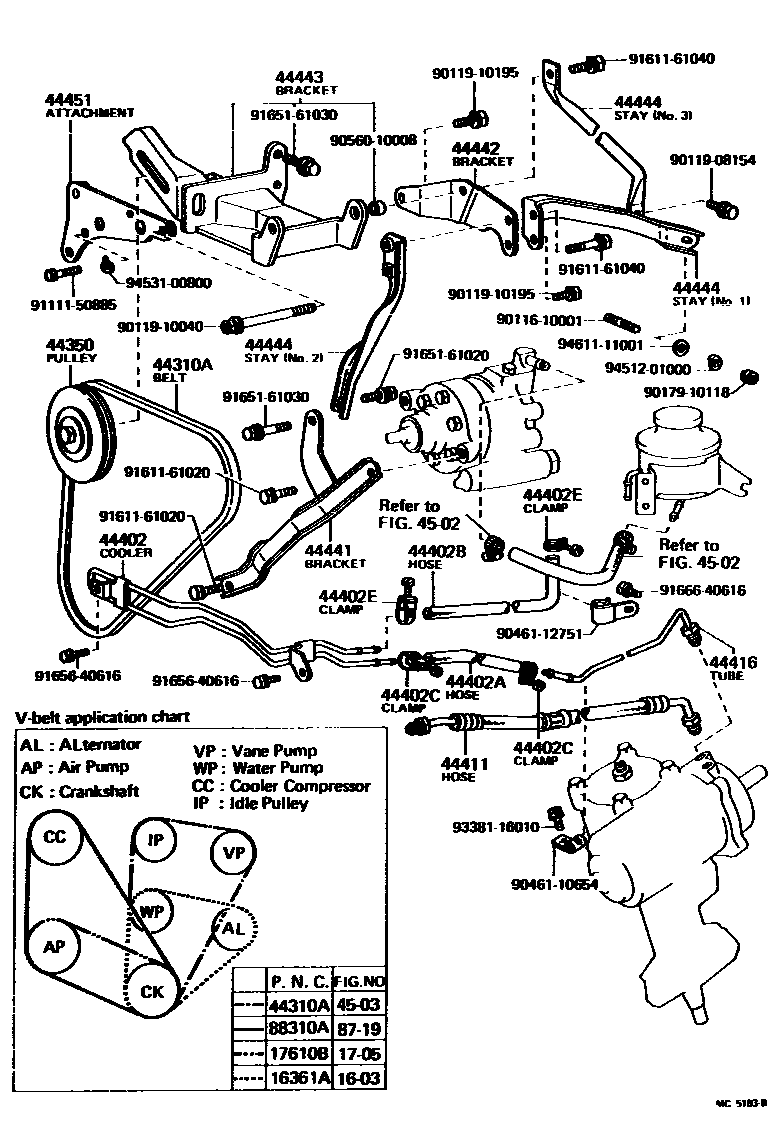

POWER STEERING TUBE

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02074i4ME..MA46197901-197908

DOUBLE V BELTS,L=905

main90916-02085i4ME,5ME..MA4#197908-198107

DOUBLE V BELTS,L=905

main99331-00870i20R..RA42197708-197808

L=870

main99331-00880i20R..RA42197808-197908

L=880

main99331-10880i20R,22R..RA4#197908-198107

L=880

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99332-00865i20R..RA42..3FC..LT; 4ME..MA46..5F197708-197908

L=865

main99332-10820i22R..RA43198008-198107

L=820

main99332-10830i20R..RA42..3FC..LT; 4ME..MA46..5F197908-198008

L=830

44310ABELT, V(FOR VANE PUMP)

main90916-02083iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main90916-02088iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main99332-11135iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main99332-51135iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main99332-51300iRA42..3FC..LT197708-197808

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20010iRA42..3FC..LT197708-197808

main44350-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14010iRA42..3FC..LT197708-197807

main44402-14011iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

main44402-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18034iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main90445-18073iRA43..CP..5F..GT198011-198107

main90445-18081iRA43..CP..5F..GT198008-198011

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18033iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main90445-18072iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

44411HOSE, PRESSURE FEED

main44411-14010iRA42..3FC..LT197708-197805

main44411-14011iRA42..3FC..LT197805-197808

main44411-14031iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main44411-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main44411-20030iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main44411-20042iRA43..CP..5F..GT198011-198107

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main44416-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main44416-14050iRA43..CP..5F..GT198008-198107

main44416-14070iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

44441BRACKET, PUMP, FRONT

main44441-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main44453-20010iRA42..3FC..LT197708-197808

44442BRACKET, PUMP, REAR

main44442-20010iRA42..3FC..LT197708-197808

44443BRACKET, PUMP

main44443-20010iRA42..3FC..LT197708-197808

main44443-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main44443-20030iRA43..CP..5F..GT198011-198107

main44443-30050iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197912

main44443-30051iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197912-198107

44444STAY, PUMP, REAR

main44444-20010iRA42..3FC..LT197708-197808

NO.1

main44444-30061iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main44454-20011iRA42..3FC..LT197708-197808

NO.2

main44455-20010iRA42..3FC..LT197708-197808

NO.3

44451ATTACHMENT, TIMING CHAIN COVER

main44451-20010iRA42..3FC..LT197708-197808

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-00970iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

L=970,L=970

main99332-01140iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

L=1140

main99332-01160iRA42..3FC..LT197708-197808

L=1160

main99332-10970iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

L=970

main99332-11110iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

L=110

9011610001

main90116-10001

9011908154

main90119-08154

9011910040

main90119-10040

9011910195

main90119-10195

9017910118

main90179-10118

9046110654

main90461-10654

9046112751

main90461-12751

9056010008

main90560-10008

9111150885

main91111-50885

9161161020

main91611-61020

9161161040

main91611-61040

9165161020

main91651-61020

9165161030

main91651-61030

9165640616

main91656-40616

9166640616

main91666-40616

9338116010

main93381-16010

9451201000

main94512-01000

9453100800

main94531-00800

9461111001

main94611-11001

41 parts on this diagram · 3 diagrams in section
