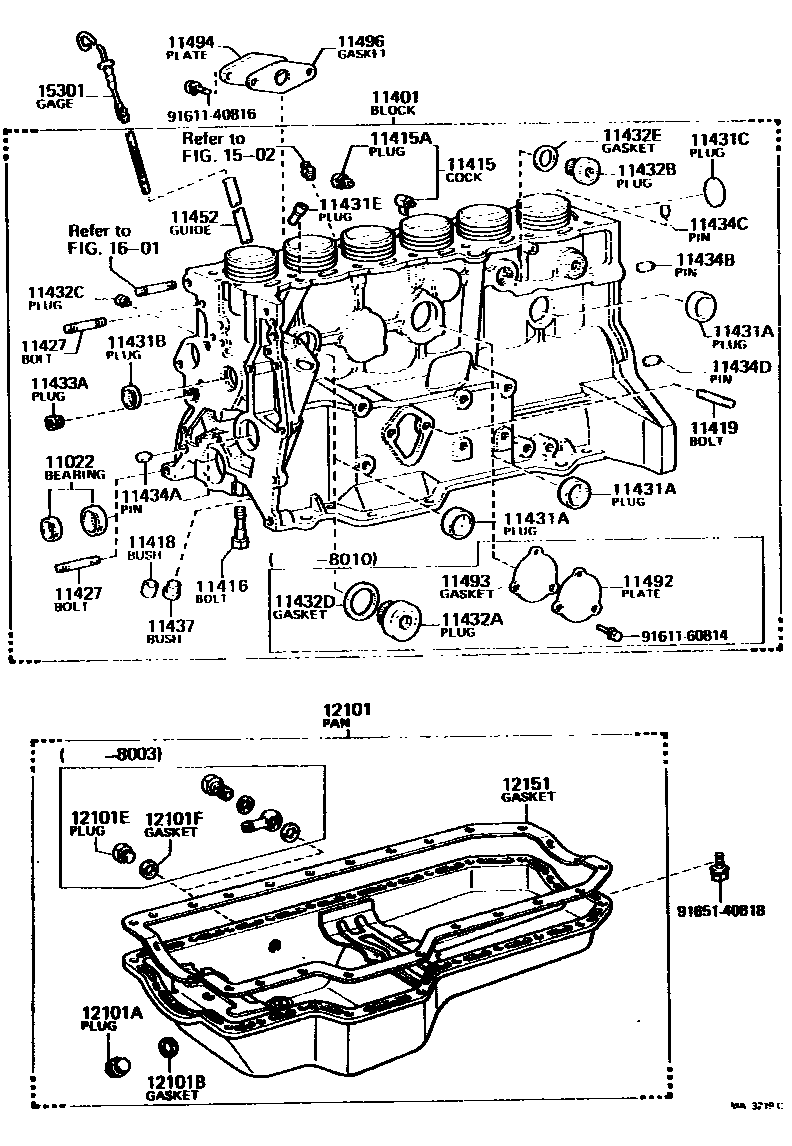

11022BEARING SET, PUMP DRIVE SHAFT

main11022-41010i197901-198107

11401BLOCK SUB-ASSY, CYLINDER

main11401-39255i197708-197808

main11401-39256i197808-197908

main11401-39257i197908-198008

main11401-39315i198008-198107

main11401-49179i197901-197908

main11401-49265i197908-198008

main11401-49275i198008-198103

main11401-49276i198103-198107

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09070i197903-198107

main96431-03833i197708-198107

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09072i197903-198107

main96431-23814i197901-197903

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02042×10i197708-198107

*12-1.25PX75-25

main90910-02047×14i197901-198107

11418BUSH, SOLID(FOR DISTRIBUTOR)

main90999-70056i197901-198107

11419BOLT, STUD(FOR FUEL PUMP)

main90116-08185×2i197901-198107

L=39,S=25&9

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90116-08121i197901-198107

L=65,S=12&12

main90116-10010i197901-198107

L=80,S=12&26

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-40001×5i197901-197908

OD=40

main96411-44000×7i197908-198107

OD=40

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000×6i197708-198107

main96412-43500i197901-198107

OD=35

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-35001i197901-197908

OD=35

main96411-43500i197908-198107

OD=35

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main11444-43010i198102-198107

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-42066i197901-198010

main90344-53002i198103-198107

RR

main90344-53008×2i197708-197904

main90344-53011i197904-198103

RR

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-32070×2i197901-198107

main90344-52013i197708-198107

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-51025×2i197908-198107

11432DGASKET, W/HEAD TAPER SCREW PLUG

main90430-42223i197901-198010

11432EGASKET, W/HEAD TAPER SCREW PLUG

main90430-32222×2i197901-198107

11433APLUG, STRAIGHT, NO.1

main90344-53015×2i197901-198107

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-10192×2i197901-198107

L=22,OD=10,L=22,OD=10

main90253-11021×4i197708-198107

L=8,OD=11,L=8,OD=11

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i197708-198107

L=22,OD=10,L=22,OD=10

main90250-10192×2i197901-198107

L=22,OD=10,L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08112×2i197901-198107

L=16,OD=8,L=16,OD=8

main90250-08120×2i197708-198107

L=18,OD=8,L=18,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-10192×2i197901-198107

L=22,OD=10,L=22,OD=10

11437BUSH, OIL PUMP SHAFT GUIDE

main11437-45010i197901-198107

11452GUIDE, OIL LEVEL GAGE

main11452-38020i197808-198107

main11452-41010i197708-197808

main11452-41020i197901-198107

11492PLATE, WATER SEAL

main11492-45010×2i197901-198010

11493GASKET, WATER SEAL PLATE

main11493-45010×2i197901-198010

11494PLATE, OIL HOLE COVER

main11494-45010i197901-198107

11496GASKET, OIL HOLE COVER PLATE

main15318-45011i197901-198107

12101PAN SUB-ASSY, OIL

main12101-39185i197708-197808

main12101-39186i197808-198107

main12101-49155i197901-198003

main12101-49275i198003-198107

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i197708-198107

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i197708-198107

12101EPLUG, OIL PAN(FOR OIL COOLER)

main90341-14032i197901-198001

12101FGASKET(FOR OIL COOLER)

main90430-14235i197901-198001

12151GASKET, OIL PAN

main12151-38010i197708-198107

main12151-41010i197901-198107

1502OIL FILTER

→ Go to FIG 15-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-38030i197708-197808

main15301-38040i197808-198107

main15301-45010i197901-198107

1601WATER PUMP

→ Go to FIG 16-01

9161140816

main91611-40816

9161160814

main91611-60814

9165140818

main91651-40818
