ENGINE OVERHAUL GASKET KIT

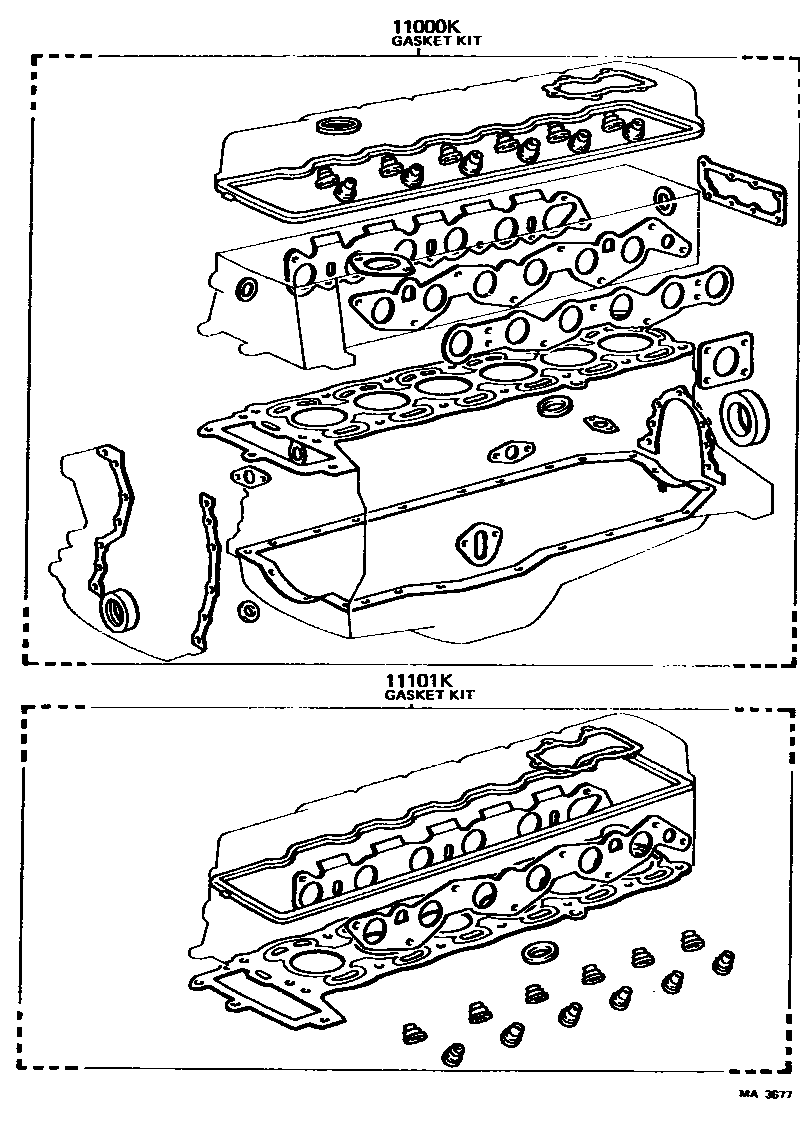

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-35021i198008-198107

main04111-38015i197708-197711

main04111-38016i197711-197808

main04111-38017i197808-197901

main04111-38031i197901-198008

main04111-43010i198008-198107

main04111-45050i197901-197908

main04111-45051i197908-198008

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-35011i198008-198107

main04112-38013i197708-197808

main04112-38014i197808-197901

main04112-38018i197901-198008

main04112-43010i198008-198107

main04112-45040i197901-197908

main04112-45041i197908-198008

2 parts on this diagram · 2 diagrams in section
