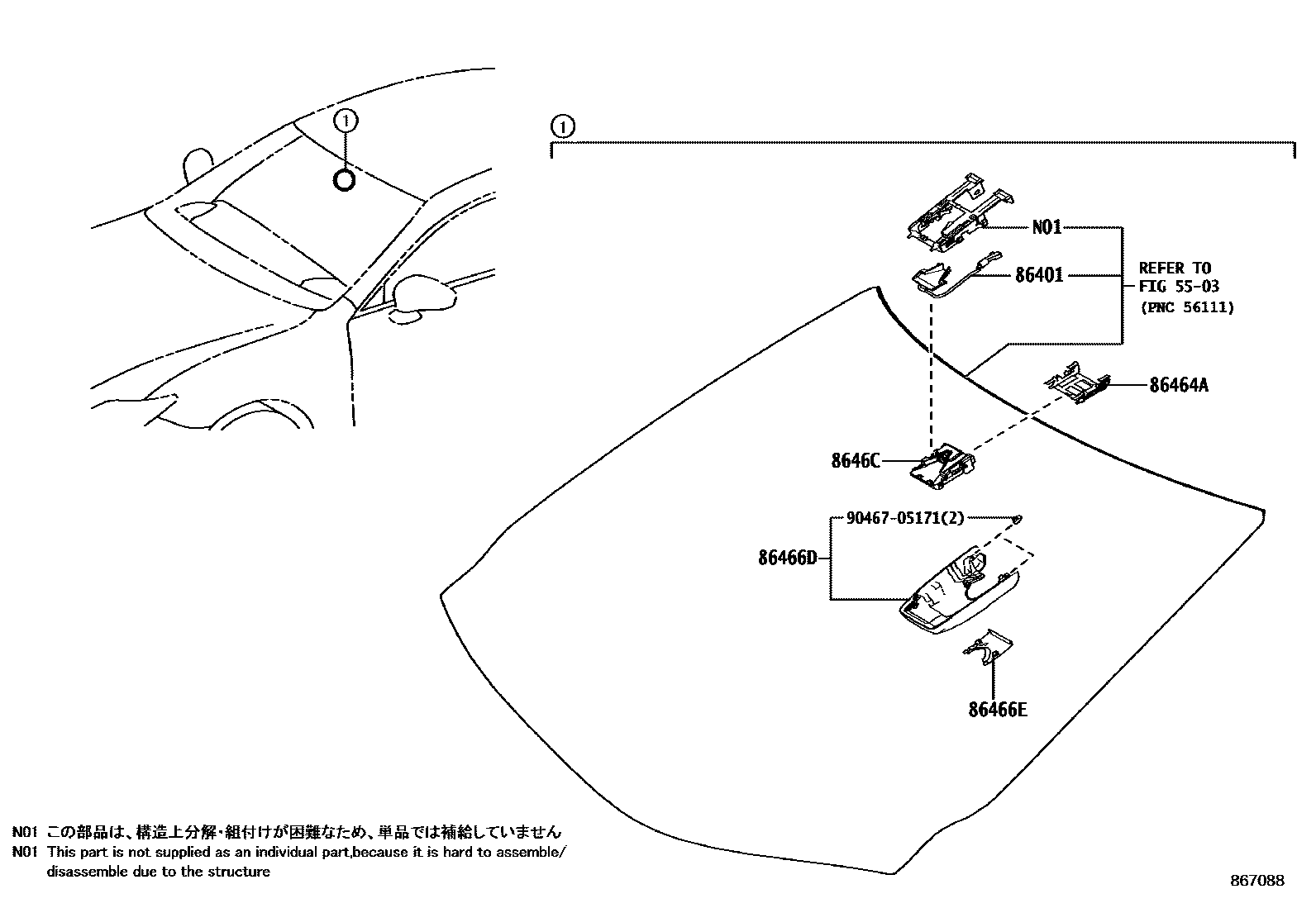

PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-24010iUSC10201711-201902

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

main86401-24020iUSC10202301

86464ALATCH, FORWARD RECOGNITION

main86464-26010iUSC10202301

main86464-48011iUSC10201711-201902

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-24050iUSC10201711-201902

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-24060iUSC10201711-201902

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-24020supersedes 8646C-24041iUSC10201711-201902

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

main8646C-24021iUSC10201903-202009

PRE-COLLISION SYSTEM-WITHOUT

main8646C-24022iUSC10202009-202301

main8646C-24040iUSC10202301-202501

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
