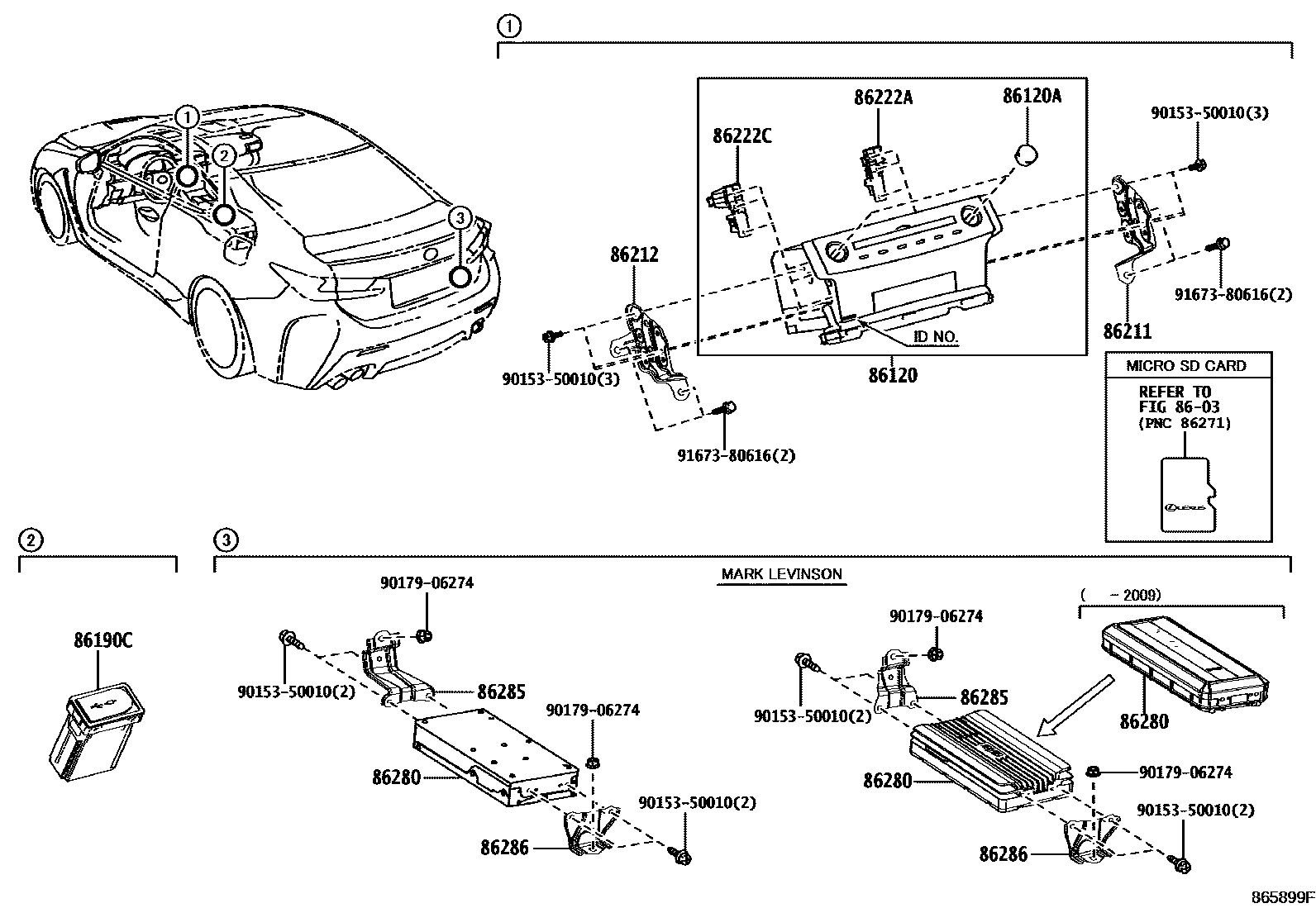

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86140-24010i201409-201609

PIONEER,ID=P10764

main86140-24230i201609-201711

PIONEER,ID=P11589

main86120-24520supersedes 86140-24260i201711-201809

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24521supersedes 86140-24261i201810-201902

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24530supersedes 86140-24260i201711-201809

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24531supersedes 86140-24261i201810-201902

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24540supersedes 86140-24260i201711-201809

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24541supersedes 86140-24261i201810-201902

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24550supersedes 86140-24260i201711-201809

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24551supersedes 86140-24261i201810-201902

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24570supersedes 86140-24260i201711-201902

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86120-24880supersedes 86140-24120i202301

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24890supersedes 86140-24120i202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24A00supersedes 86140-24460i201903-202009

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24A10supersedes 86140-24460i201903-202009

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24A20supersedes 86140-24460i201903-202009

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24A30supersedes 86140-24460i201903-202009

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24A50supersedes 86140-24460i201903-202009

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24D80i202009-202111

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24D90supersedes 86140-24610i202009-202301

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24E00supersedes 86140-24610i202009-202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24E10supersedes 86140-24610i202009-202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86120-24E30supersedes 86140-24610i202009-202301

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24J60supersedes 86140-24120i202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86130-24060i201409-201711

FUJITSU TEN,ID100426,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)

main86140-24020supersedes 86140-24261i201409-201608

PIONEER,ID=P10763,CANADA SPEC

main86140-24190supersedes 86140-24120i202301

PIONEER,CANADA SPEC

main86140-24240i201608-201711

PIONEER,ID=P11588,CANADA SPEC

main86140-24270supersedes 86140-24260i201711-201809

PIONEER,CANADA SPEC

main86140-24271supersedes 86140-24261i201810-201902

PIONEER,CANADA SPEC

main86140-24470supersedes 86140-24460i201903-202009

PIONEER,CANADA SPEC

main86140-24630supersedes 86140-24610i202009-202301

PIONEER,CANADA SPEC

main86804-24210i201409-201711

PIONEER,ID=P10762,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86804-24220i201409-201711

PIONEER,ID=P10751,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86804-24230i201409-201711

PIONEER,ID=P10755,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86804-24240i201409-201711

PIONEER,ID=P10744,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22097×2supersedes 90010-22110i201409-201902

AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION); CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010i201903-202009

main86190-24030i202009

main86190-53051i201409-201711

86211BRACKET, RADIO, NO.1

main86211-24100i201711-201902

main86211-53050i201409-201711

86212BRACKET, RADIO, NO.2

main86212-24100i201711-201902

main86212-53050i201409-201711

86222ACLIP, RADIO RECEIVER BRACKET NO.1

main86222-53010i201409-201902

86222CCLIP, RADIO RECEIVER BRACKET NO.2

main86222-53020i201903

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WC40i201409-201711

AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER

main86280-0WF50supersedes 86280-24310i201711-201902

AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER

main86280-0WK00supersedes 86280-24311i202009-202301

AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO); KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI-VISION-WITH(KOREASPEC)

main86280-0WK70supersedes 86280-24390i202301

AUDIO-EMV & DVD & 17SPEAKER

main86280-24260supersedes 86280-24250i201409-201609

AUDIO-EMV & DVD & 10SPEAKER

main86280-24300supersedes 86280-24290i201609-201711

AUDIO-EMV & DVD & 10SPEAKER

main86280-24320supersedes 86280-24310i201903-202009

AUDIO-EMV & DVD & 10SPEAKER

main86280-24321i202009-202111

AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)

main86280-24340supersedes 86280-24310i201910-202009

AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER

main86280-24400supersedes 86280-24390i202301

AUDIO-EMV & DVD & 10SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-24070i202009-202301

AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER

main86285-53090supersedes 86285-53080i201409-201902

AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-53120i201409-201710

main86286-53121i201711-201902

9015350010

main90153-50010

9017906274

main90179-06274

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
