WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

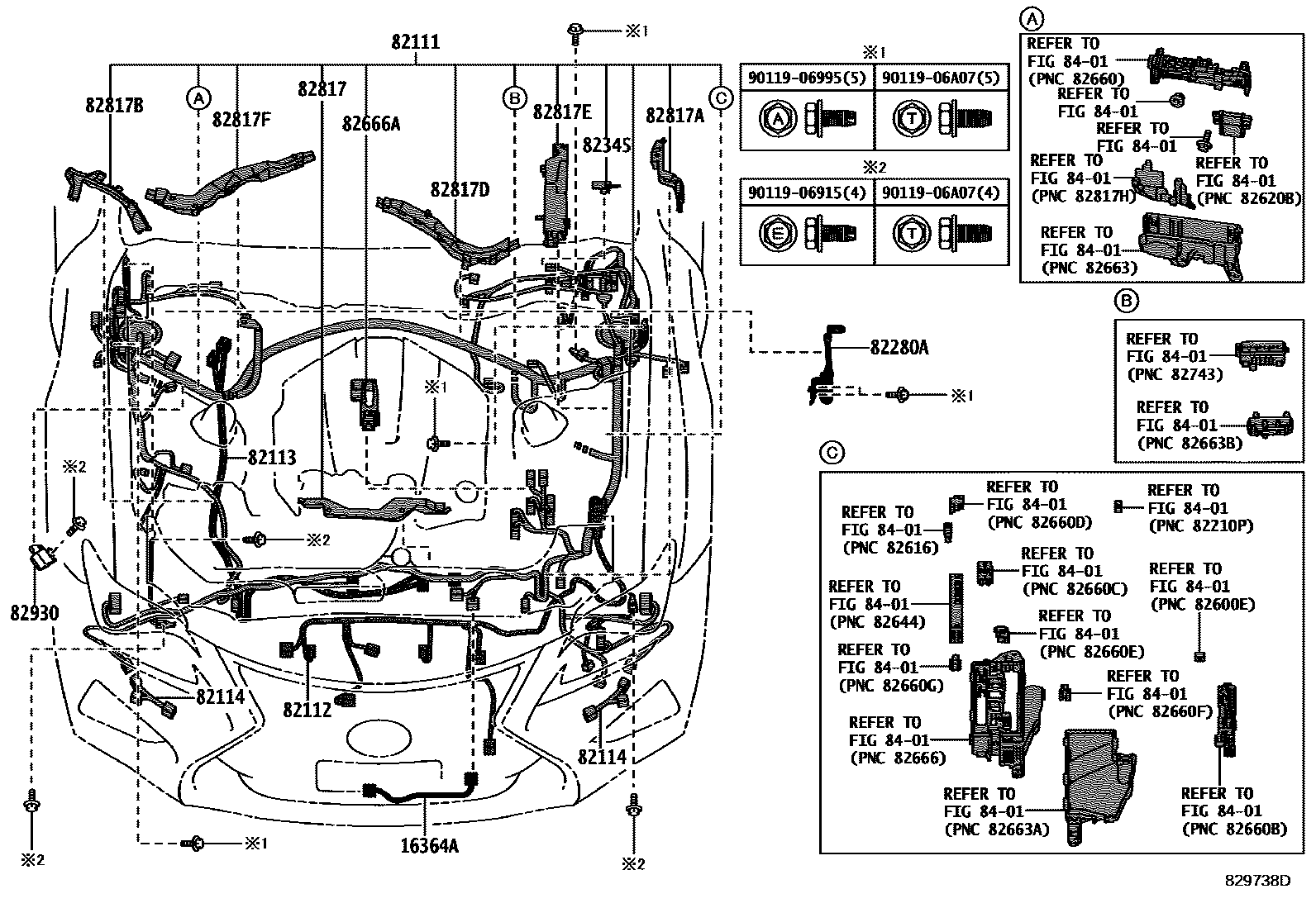

16364AWIRE, COOLING FAN

main16364-38040i2URGSE..USC10201409-201902

82111WIRE, ENGINE ROOM MAIN

main82111-24D00iUSC10201409-201609

main82111-24D01iUSC10201609-201711

main82111-24D02iUSC10201711-201902

main82111-24U81iUSC10202111-202210

main82111-24U82iUSC10202301

main82111-24U90iUSC10201903-202009

main82111-24U91iUSC10202009-202111

main82111-24V10iUSC10202210-202301

82112WIRE, ENGINE ROOM, NO.2

main82112-24160iUSC10201409-201711

main82112-24171iUSC10201711-201902

main82112-24360iUSC10201903-202009

main82112-24361iUSC10202009

82113WIRE, ENGINE ROOM, NO.3

main82113-24060iUSC10201409-201902

82114WIRE, ENGINE ROOM, NO.4

main82114-24030iUSC10201409-201902

main82114-24070iUSC10201903

82280AWIRE ASSY, BATTERY TO COWL TOP SIDE

main82280-24040iUSC10201409-201902

82345DIODE

main82345-32020iUSC10201409-201902

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iUSC10201409-201902

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24A40iUSC10201409-201902

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24A70iUSC10201409-201902

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30D30iUSC10201409-201902

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30B70iUSC10201409-201902

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-30M70iUSC10201409-201909

main82817-3AK40iUSC10201910

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-30M00iUSC10201409-201902

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30030iUSC10201409-201902

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906995

main90119-06995

9011906A07

main90119-06A07

19 parts on this diagram · 9 diagrams in section
