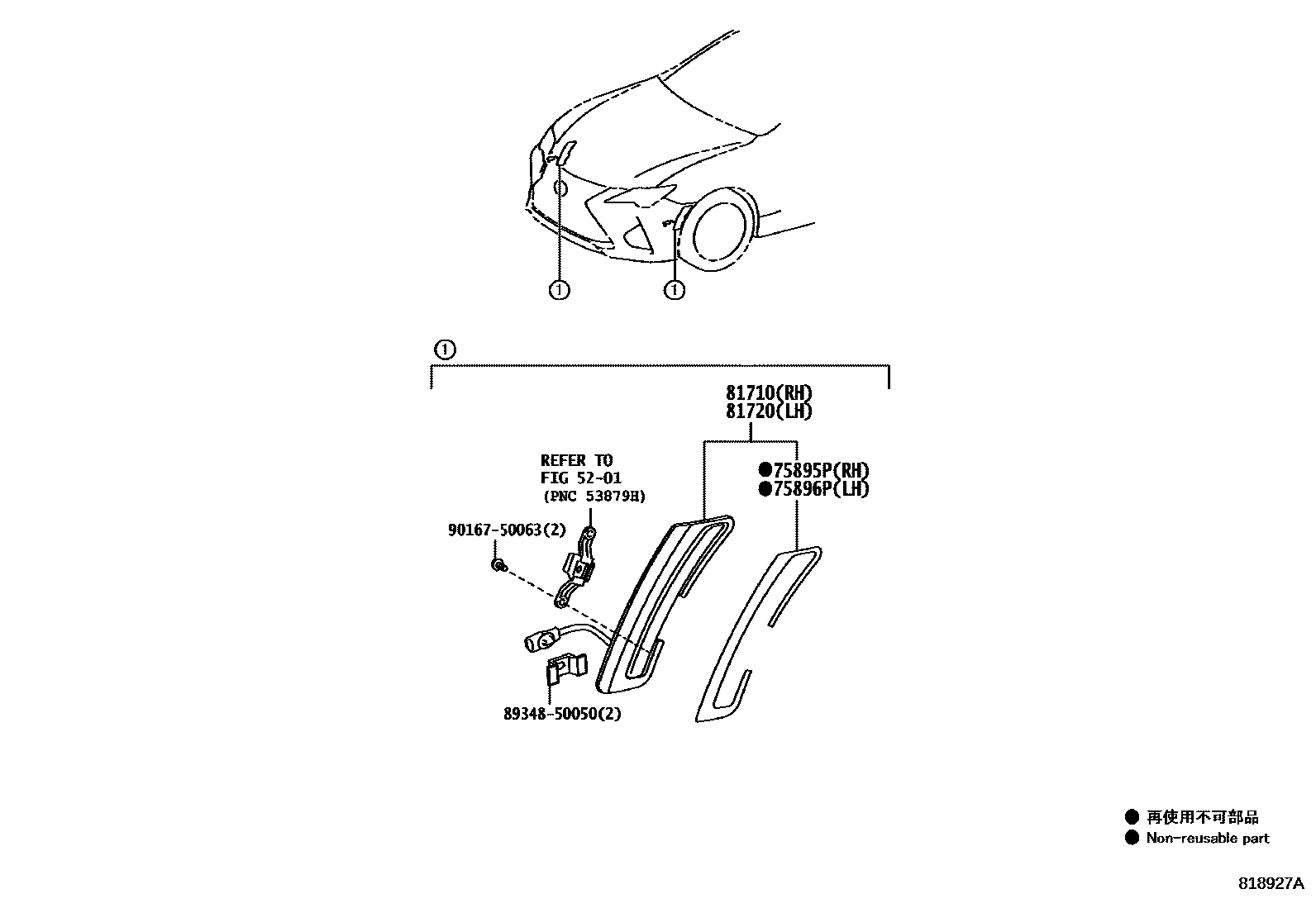

FRONT MARKER LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

75895PTAPE, MOULDING, NO.1

main75895-24060iUSC10201903-202111

KOREA SPEC

75896PTAPE, MOULDING, NO.2

main75896-24060iUSC10201903-202111

KOREA SPEC

81710LAMP ASSY, FRONT MARKER, RH

main81710-24040iUSC10201903-202111

KOREA SPEC

81720LAMP ASSY, FRONT MARKER, LH

main81720-24040iUSC10201903-202111

KOREA SPEC

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
