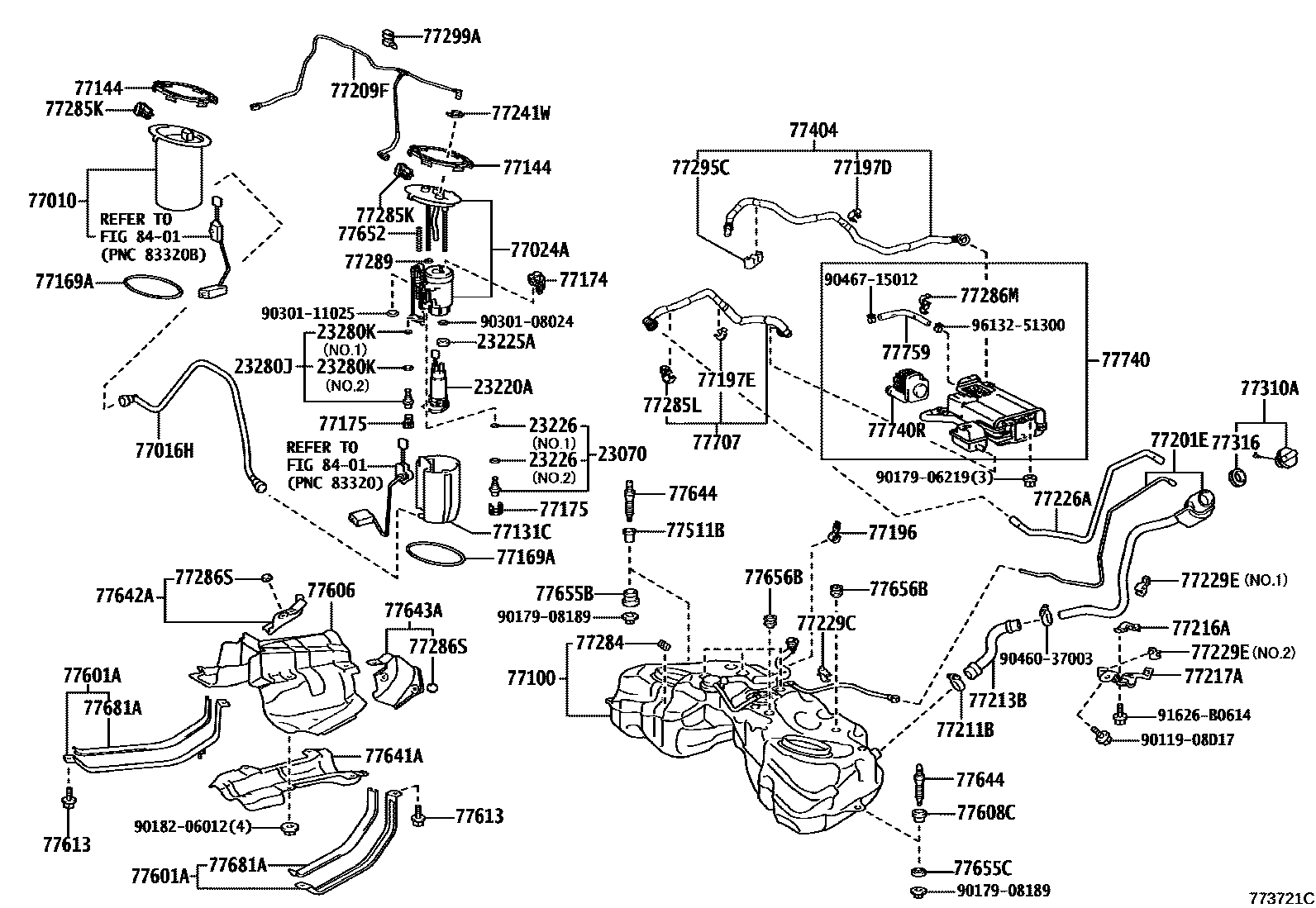

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31030i2URGSE..USC10202210

main23070-38020i2URGSE..USC10201903-202210

23220APUMP ASSY, FUEL W/FILTER

main23220-31330i2URGSE..USC10202210

main23220-38090i2URGSE..USC10201409-201902

23225ASPACER, FUEL PUMP

main23225-31010i2URGSE..USC10202210

main23225-38030i2URGSE..USC10201409-201902

23226RING, O(FOR FUEL PUMP)

main90301-04013i2URGSE..USC10201409-201902

NO.1:REFER ILLUST.

main90301-15024i2URGSE..USC10201409-201902

NO.2:REFER ILLUST.

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2URGSE..USC10201409-201902

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2URGSE..USC10201409-201902

NO.1:REFER ILLUST.

main90301-15024i2URGSE..USC10201409-201902

NO.2:REFER ILLUST.

77010TUBE ASSY, FUEL TANK VENT

main77010-24010iUSC10201409-201902

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-24010iUSC10201409-201902

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-24010iUSC10201409-201902

main77024-53060iUSC10202210

77100TANK ASSY, FUEL

main77001-24110iUSC10201709-201902

main77001-24150iUSC10202009

main77001-30620iUSC10201409-201708

77131CSUB-TANK, FUEL, NO.1

main77131-30063iUSC10201409-201902

77144RETAINER, FUEL PUMP GAUGE

main77144-30030×2iUSC10201409-201902

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040×2iUSC10201409-201902

77174SUPPORT, FUEL SUCTION, NO.1

main77174-24010iUSC10201409-201902

main77174-53020iUSC10202210

77175SUPPORT, FUEL SUCTION, NO.2

main77175-50010×2iUSC10201409-201902

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30060iUSC10201409-201902

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iUSC10201409-201902

77197ECLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iUSC10201409-201902

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-24110iUSC10201409-201902

main77201-24160iUSC10202009

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-24020iUSC10201409-201902

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-40005iUSC10201409-201902

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30210iUSC10201409-201902

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-53010iUSC10201409-201902

main77216-53020iUSC10202009

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-53020iUSC10201409-201902

main77217-53030iUSC10202009

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-24020iUSC10201903

77229CCLAMP, BREATHER TUBE

main77229-30100iUSC10201409-201902

77229ECLAMP, BREATHER TUBE

main77229-30090iUSC10201903-202009

NO.1:REFER ILLUST.

main77229-33060iUSC10201903-202009

NO.2:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-33011iUSC10201409-201902

main77241-60550iUSC10202104

77284CLAMP, FUEL TUBE

main77289-30120iUSC10201409-201902

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350×2iUSC10201409-201902

77285LCLAMP, FUEL TUBE, NO.1

main77285-30310×2iUSC10202009

77286MCLAMP, FUEL TUBE, NO.6

main77286-30250iUSC10201409-201902

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×4iUSC10201409-201902

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iUSC10201409-201902

77295CGROMMET, FUEL TUBE

main77295-60320iUSC10201409-201902

77299ACLAMP, FUEL TUBE, NO.5

main77299-30090iUSC10201409-201902

77310ACAP ASSY, FUEL TANK

main77300-53020iUSC10201409-201902

main77300-53030iUSC10202009

77316GASKET, FUEL TANK CAP

main77316-52040iUSC10201409-201902

main77316-75020iUSC10202009

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-24060iUSC10201409-201902

main77404-24080iUSC10202009-202301

main77404-24090iUSC10202301

77511BBRACKET, FUEL TANK

main77511-48030iUSC10201409-201902

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-53040×2iUSC10201409-201503

main77601-53041×2iUSC10201504-201902

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-53050iUSC10201409-201902

77608CCUSHION SET, FUEL TANK

main77608-48010iUSC10201409-201902

77613BOLT, FUEL TANK BAND SET

main90119-10971×4iUSC10201409-201902

main90119-10A05×4iUSC10201903

77641APROTECTOR, FUEL TANK, NO.1

main77641-30160iUSC10201409-201902

77642APROTECTOR, FUEL TANK, NO.2

main77642-30040iUSC10201409-201902

77643APROTECTOR, FUEL TANK, NO.3

main77643-30030iUSC10201409-201902

77644BOLT, FUEL TANK

main77644-48010×2iUSC10201409-201902

77652CUSHION, FUEL TANK, NO.1

main77652-30090iUSC10201409-201902

77655BCUSHION, FUEL TANK

main77655-30080iUSC10201409-201902

77655CCUSHION, FUEL TANK

main77655-48010iUSC10201409-201902

77656BCUSHION, FUEL TANK, NO.6

main77656-30030×5iUSC10201409-201902

77681ASEAT, FUEL TANK BAND

main77681-30030×2iUSC10201409-201902

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-24020iUSC10201409-201902

main77707-24040iUSC10202009-202301

main77707-24050iUSC10202301

77740CANISTER ASSY, CHARCOAL

main77740-24100iUSC10201409-201902

main77740-24130iUSC10202009

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-14005iUSC10201409-201504

main90910-14008iUSC10201505-201902

77759HOSE, CHARCOAL CANISTER

main77759-30030iUSC10201409-201902

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9017906219

main90179-06219

9017908189

main90179-08189

9018206012

main90182-06012

9030108024

main90301-08024

9030111025

main90301-11025

9046037003

main90460-37003

9046715012

main90467-15012

91626B0614

main91626-B0614

9613251300

main96132-51300

68 parts on this diagram · 6 diagrams in section
