FRONT SEAT & SEAT TRACK

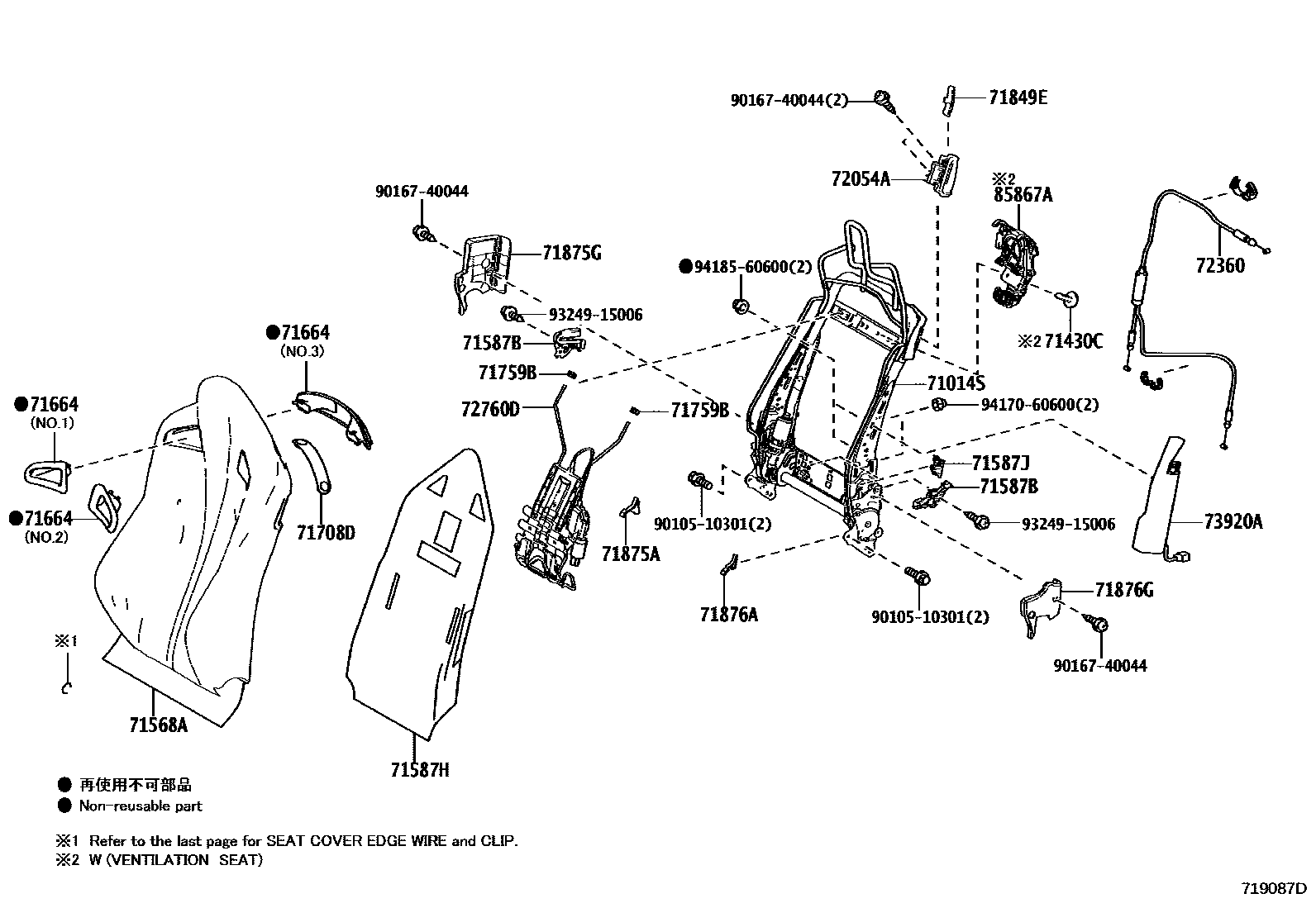

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-24090i201409-201704
main71014-24091i201705-201902
main71014-24110i201903
71430CCLIP
71568APAD, FRONT SEATBACK W/COVER, LH
main71402-24130-C4supersedes 71402-24140-C4i201409-201805
D PACKAGE&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71402-24130-C5supersedes 71402-24140-C5i201805-201902
D PACKAGE&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71402-24150-21supersedes 71402-24140-C4i201409-201805
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLUE,TRIM2#
main71402-24150-22supersedes 71402-24140-C5i201805-201902
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLUE,TRIM2#
main71402-24150-B2i201409-201805
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71402-24150-B3i201805-201902
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71402-24150-D2i201409-201805
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),RED,TRIM3#
main71402-24150-D3i201805-201902
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),RED,TRIM3#
main71402-24151-29i201903-202501
REAR SEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ECRU,TRIM0#
main71402-24151-40supersedes 71402-24240-C0i201903-202501
REAR SEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/RED,TRIM3#
main71402-24151-41supersedes 71402-24131-C6i201903-202501
REAR SEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLUE,TRIM2#
main71402-24160-23supersedes 71402-24140-C4i201409-201805
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ECRU,TRIM2#
main71402-24160-25supersedes 71402-24140-C5i201805-201902
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ECRU,TRIM2#
main71402-24160-B2i201409-201805
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),MOON STONE,TRIM1#
main71402-24160-B3i201805-201902
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),MOON STONE,TRIM1#
main71402-24160-D2i201409-201805
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),RED/BLACK,TRIM3#
main71402-24160-D3i201805-201902
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),RED/BLACK,TRIM3#
main71402-24161-42i201903-202301
KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & MEMORY & ANTI-GLARE &*BSM&REARSEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMI-ANILINE),BLACK/
main71402-24161-43supersedes 71402-24240-C0i201903-202301
KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & MEMORY & ANTI-GLARE &*BSM&REARSEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMI-ANILINE),BLACK/
main71402-24161-44supersedes 71402-24131-C6i201903-202301
KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & MEMORY & ANTI-GLARE &*BSM&REARSEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMI-ANILINE),BLACK/
main71402-24180-C4supersedes 71402-24140-C4i201409-201805
KOREA SPEC&SEAT COVER MATERIAL-ALCANTARA&SEAT HEATER-WITH,BLACK,TRIM2#
main71402-24180-C5supersedes 71402-24140-C5i201805-201902
KOREA SPEC&SEAT COVER MATERIAL-ALCANTARA&SEAT HEATER-WITH,BLACK,TRIM2#
main71402-24200-C0i202111-202301
KOREA SPEC&STEERING WHEEL-BACK SKIN&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & MEMORY& ANTI-GLARE &*BSM&SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#
main71402-24200-D2i201903-202111
SEAT COVER MATERIAL-ALCANTARA,RED,TRIM3#
main71402-24250-J0i201805-201902
F 10TH ANNIVERSARY&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLUE,TRIM8#
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-24050i201409-201902
OUTER
main71587-24060i201903
INNER
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-24070i201903
OUTER
main71587-24080i201903
INNER
71587HPROTECTOR, FRONT SEATBACK EDGE
main71587-30060×2i201409-201902
71587JPROTECTOR, FRONT SEATBACK EDGE
main71587-52030×4i201409-201902
71664GUIDE, SEAT BELT
main73187-24060-B0×2i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.1:REFER ILLUST.
main73187-24070-B0×2i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.2:REFER ILLUST.
main73187-24080-B0×2i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.3:REFER ILLUST.
71708DSTRAP SUB-ASSY, SEAT COVER, LH
main71788-24020-C0i201409-201902
BLACK,TRIM2#
main71788-24020-C2i201903-202501
REAR SEAT-WITH(CENTER CONSOLE)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,2#,3#
main71788-24020-B0i201409-201902
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
main71788-24020-D0supersedes 71788-24020-D2i201409-201902
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),RED,TRIM3#
71759BHOOK, FRONT SEATBACK
main71759-47011×4i201409-201902
71849CAP, SEAT ADJUSTER COVER, LH
main71848-76010×2i201409-201902
71849ECAP, RECLINING REMOTE CONTROL, LH
main71849-24010-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#,8#
main71849-24010-D0i202501
RED,TRIM3#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-24090-C0×2i201903
BLACK,TRIM0#,2#,3#,8#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-24110i201409-201902
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-24040-C0×2i201903
BLACK,TRIM0#,2#,3#,8#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-24060i201903
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-24020-C0i201903-202501
BLACK,TRIM0#,2#,3#,8#
main72054-24020-D0i202501
RED,TRIM3#
72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING
main72360-24010×2i201409-201902
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-76010i201409-201902
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-24030i201409-201410
main73920-53030i201411-201902
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-53020
main85867-53030
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
9010510301
main90105-10301
9016740044
main90167-40044
9324915006
main93249-15006
9417060600
main94170-60600
9418560600
main94185-60600

27 parts on this diagram · 5 diagrams in section
