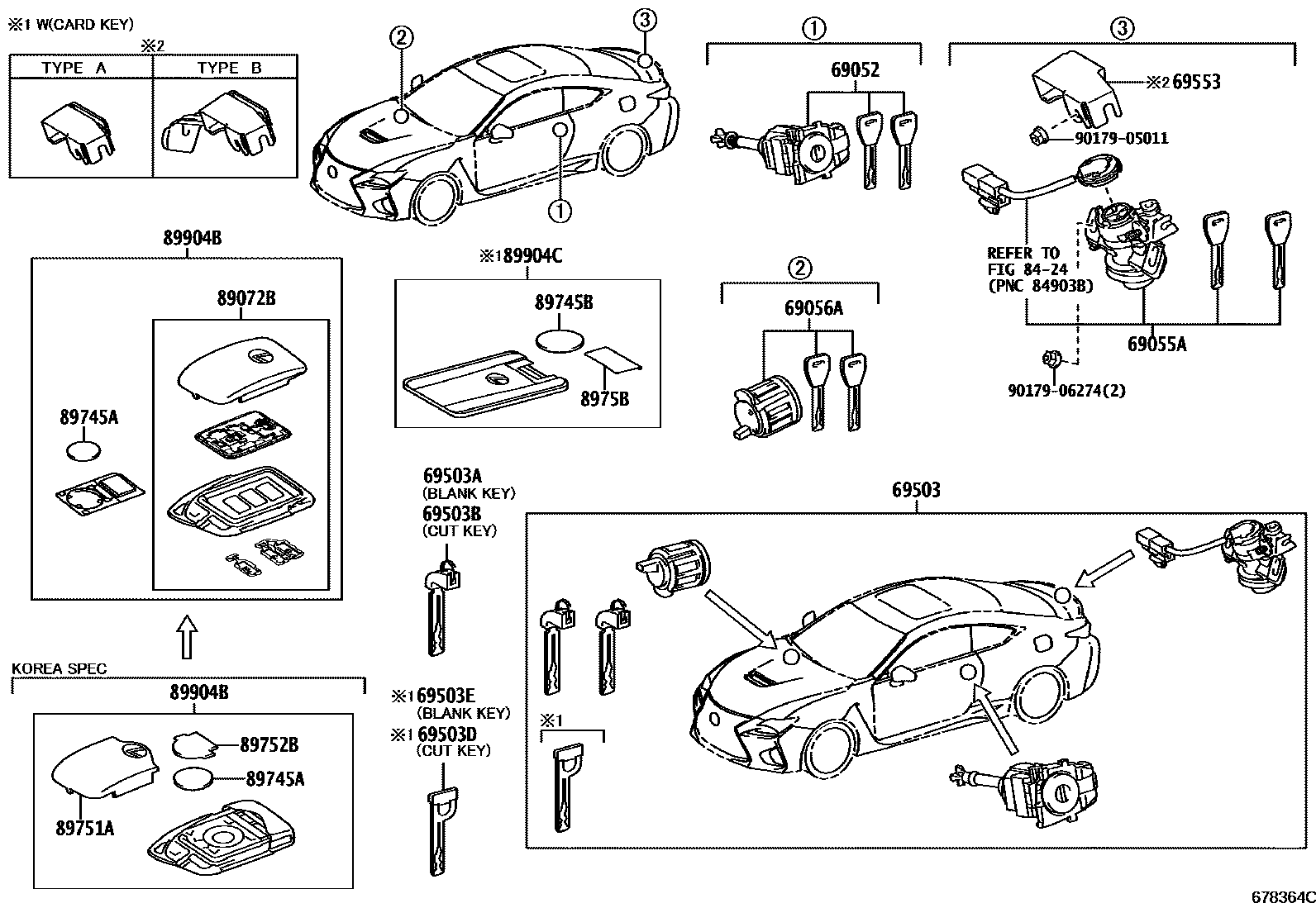

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-24080iUSC10201409-201412

main69052-24081iUSC10201501-201902

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30480iUSC10201409-201711

main69055-33540iUSC10201711-201902

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iUSC10201903

69503CYLINDER SET, LOCK

main69005-24480supersedes 69005-24540iUSC10201409-201412

CARD KEY-WITH

main69005-24481supersedes 69005-24441iUSC10201501-201711

CARD KEY-WITH

main69005-24580supersedes 69005-24540iUSC10201711-201902

CARD KEY-WITH

69503AKEY, BLANK

main69515-30380iUSC10201903

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370×2iUSC10201409-201902

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

main69515-30330iUSC10201903

MASTER KEY,CARD KEY-WITH

69503EKEY, BLANK(CARD KEY)

main69515-30350iUSC10201409-201902

MASTER KEY

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30021supersedes 69553-30010iUSC10201903-202301

KOREA SPEC,TYPE B:REFER ILLUST.

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-24190×2iUSC10201409-201609

main89072-24270×2iUSC10202009

main89072-30760×2iUSC10201903-202009

89745ABATTERY, TRANSMITTER

main89745-50020iUSC10201409-201902

CR2032,KOREA SPEC

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iUSC10201409-201902

CR2412,CARD KEY-WITH; CR2412,KOREA SPEC&CARD KEY-WITH

89751ACOVER, TRANSMITTER HOUSING

main89751-48290×2iUSC10201903-202301

KOREA SPEC; KOREA SPEC&CARD KEY-WITH

main89751-53140×2iUSC10201409-201609

KOREA SPEC

89752BCASE, TRANSMITTER HOUSING

main8975B-33010×2iUSC10201903-202301

KOREA SPEC; KOREA SPEC&CARD KEY-WITH

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-24010iUSC10202009-202301

KOREA SPEC&CARD KEY-WITH

main8975B-53010iUSC10201409-201902

CARD KEY-WITH; KOREA SPEC&CARD KEY-WITH

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-24190×2supersedes 89904-24100iUSC10201409-201609

KOREA SPEC

main89904-24320×2supersedes 89904-24240iUSC10201903-202009

KOREA SPEC; KOREA SPEC&CARD KEY-WITH

main89904-24410×2supersedes 89904-24340iUSC10202009-202301

KOREA SPEC; KOREA SPEC&CARD KEY-WITH

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-24020iUSC10201409-201806

CARD KEY-WITH

main89904-24021iUSC10201807-201902

CARD KEY-WITH

main89904-24070iUSC10201409-201902

KOREA SPEC&CARD KEY-WITH

main89904-24440iUSC10202009

CARD KEY-WITH

main89904-24490iUSC10202009-202301

KOREA SPEC&CARD KEY-WITH

9017905011

main90179-05011

9017906274

main90179-06274

20 parts on this diagram · 1 diagram in section
