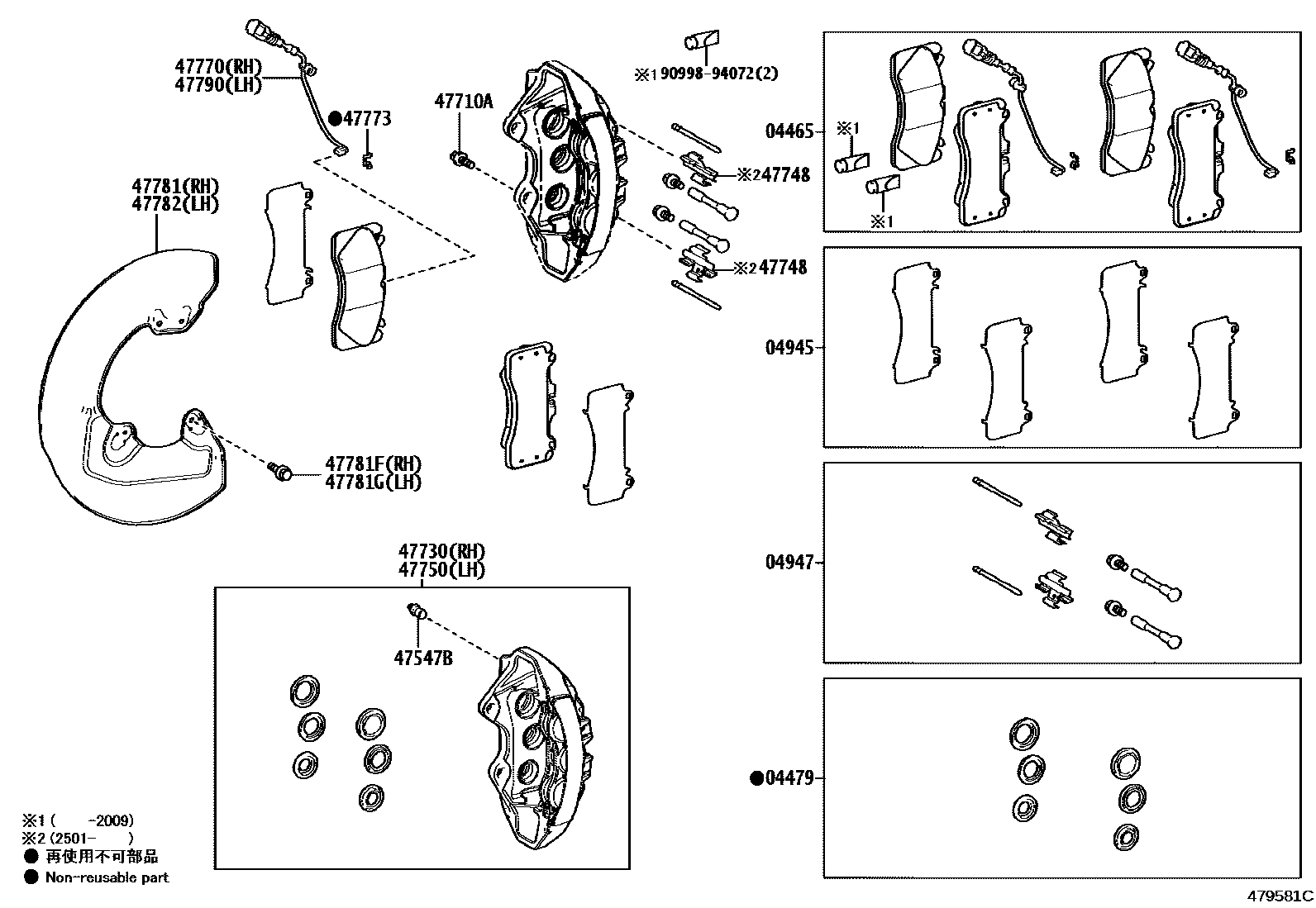

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(RED PAINTED)

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W190iUSC10201409-201801

MARK GA 5032

main04465-0W191iUSC10201801-202009

MARK GA 5032

main04465-0W240iUSC10202009

MARK PAGID PA4971

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0W010iUSC10201409-201902

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0W020iUSC10201409-202009

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0W020iUSC10201409-201902

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39012iUSC10201409-201902

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iUSC10201409-201902

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0W130iUSC10201409-201510

main47730-0W140iUSC10201510-202501

main47730-0W240iUSC10202501

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0W040iUSC10202501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0W130iUSC10201409-201510

main47750-0W140iUSC10201510-202501

main47750-0W240iUSC10202501

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-24010iUSC10201409-201606

main47770-24012iUSC10201606-201902

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iUSC10201409-201902

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-24040iUSC10201409-201902

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508iUSC10201409-201902

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508iUSC10201409-201902

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-24040iUSC10201409-201902

47790WIRE ASSY, PAD WEAR INDICATOR, FRONT LH

main47770-24010iUSC10201409-201606

main47770-24012iUSC10201606-201902

9099894072

main90998-94072

17 parts on this diagram · 2 diagrams in section
