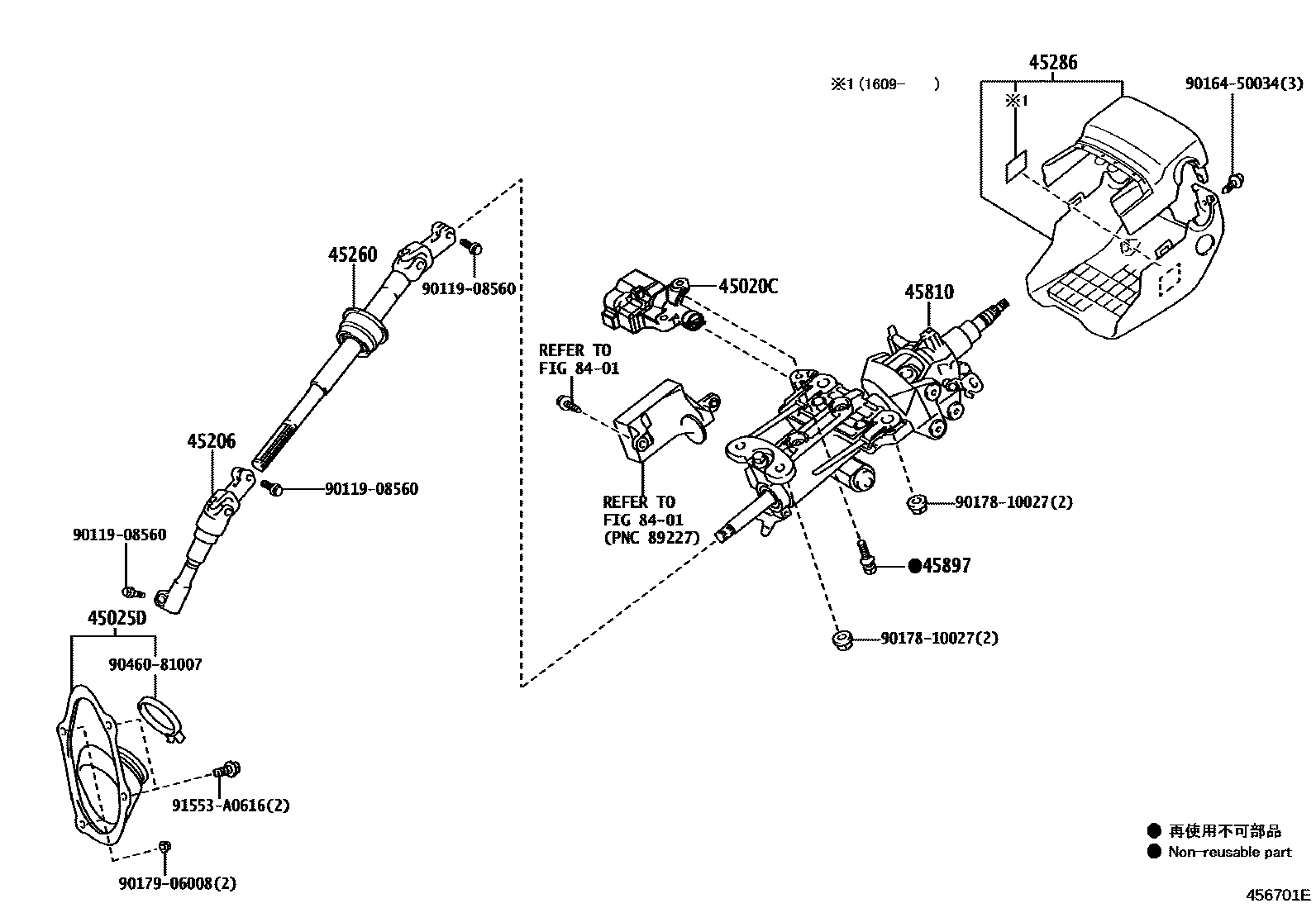

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
STEERING COLUMN-POWER(TILT & TELESCOPIC)
KOREA SPEC
STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286COVER, STEERING COLUMN
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
45810GEAR ASSY, TILT STEERING, W/MOTOR
STEERING COLUMN-POWER(TILT & TELESCOPIC); STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(PROTECTOR)
45897BOLT, STEERING LOCK SET
STEERING COLUMN-POWER(TILT & TELESCOPIC); STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(PROTECTOR)
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9016450034
main90164-50034
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
14 parts on this diagram · 2 diagrams in section
