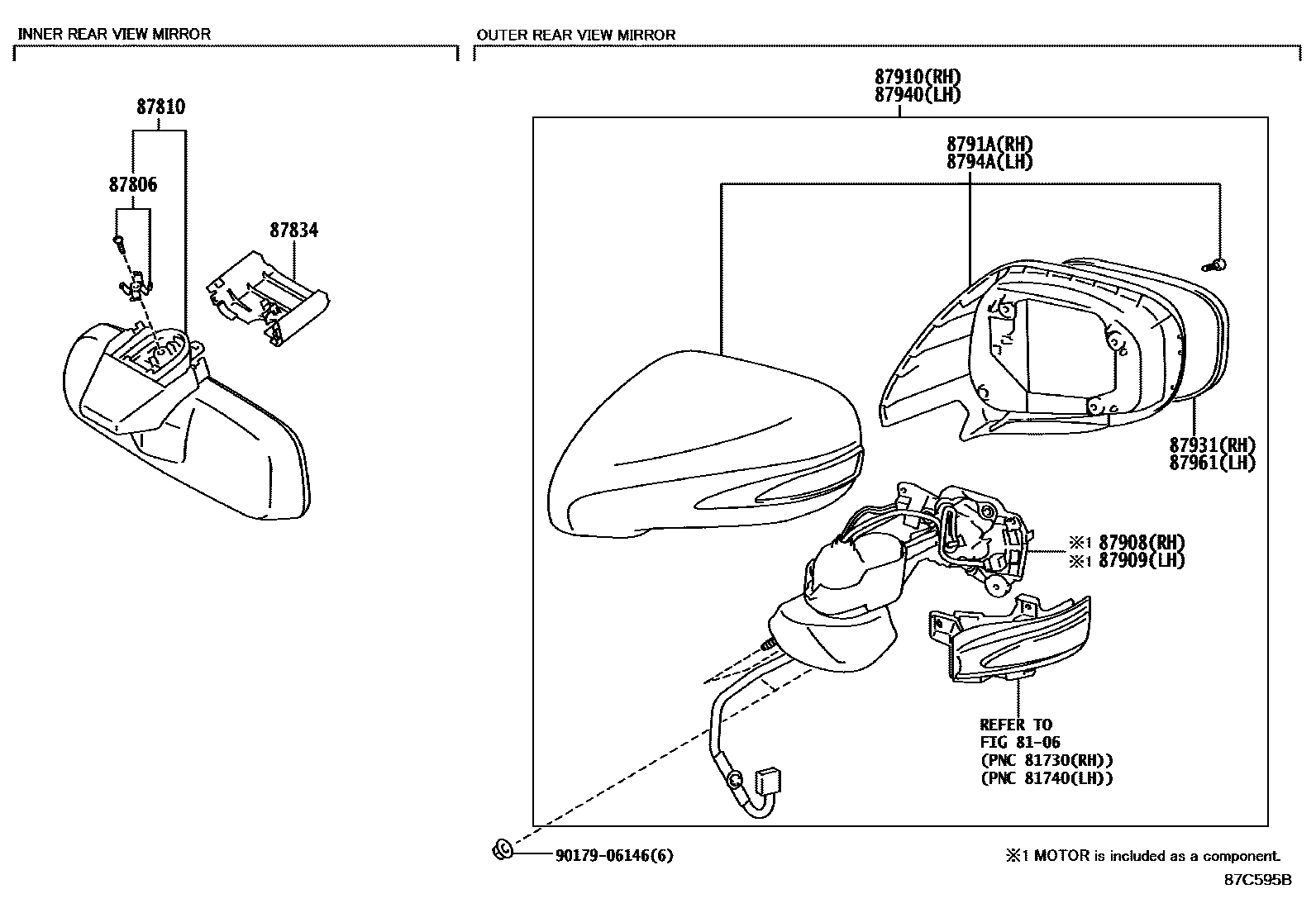

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87806SPRING SUB-ASSY, INNER MIRROR

main87806-24020i200904-201507

87810MIRROR ASSY, INNER REAR VIEW

main87810-53180i200904-201107

main87810-53170i200904-201107

KOREA SPEC

main87810-53171i201108-201408

KOREA SPEC

main87810-53190i201008-201107

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

main87810-53191supersedes 87810-53181i201108

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-53030i200904

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-53470-B0i200904-201108

DK.GRAY MC.,1G0

main87908-53470-J3i201108-201111

LAPIS LAZULI MC.,8V3

main87908-53471-A1i201208

WHITE NOVA GF.,083

main87908-53450-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87908-53450-A1i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87908-53450-B2i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87908-53450-B3i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME,1J4

main87908-53450-C1i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87908-53450-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87908-53450-J1i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87908-53450-J3i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87908-53450-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87908-53480-A0supersedes 87908-53471-A0i200904-201111

LUXURY PACKAGE,WHITE PEARL CS.,077

main87908-53480-B0i200904-201008

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87908-53480-B1supersedes 87908-53470-B1i200904-201111

LUXURY PACKAGE,SILVER M.M.,1G1

main87908-53480-B2supersedes 87908-53470-B2i201108-201111

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87908-53480-C0supersedes 87908-53471-C0i200904-201111

LUXURY PACKAGE,BLACK,212

main87908-53480-D0supersedes 87908-53471-D0i200904-201111

LUXURY PACKAGE,RED MC.CS.,3R1

main87908-53480-J0supersedes 87908-53470-J0i200904-201008

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87908-53480-J1supersedes 87908-53471-J1i200904-201111

LUXURY PACKAGE,BLUE ME.,8U1

main87908-53480-J2supersedes 87908-53470-J2i200904-201111

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87908-53480-J3i201008-201111

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87908-53480-K0supersedes 87908-53470-K0i200904-201008

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87908-53481-A0supersedes 87908-53471-A0i201111

LUXURY PACKAGE,WHITE PEARL CS.,077

main87908-53481-B1supersedes 87908-53471-B1i201111-201208

LUXURY PACKAGE,SILVER M.M.,1G1

main87908-53481-B2supersedes 87908-53471-B2i201111

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87908-53481-B3supersedes 87908-53471-B3i201208

LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87908-53481-C0supersedes 87908-53471-C0i201111

LUXURY PACKAGE,BLACK,212

main87908-53481-D0supersedes 87908-53471-D0i201111

LUXURY PACKAGE,RED MC.CS.,3R1

main87908-53481-J1supersedes 87908-53471-J1i201111

LUXURY PACKAGE,BLUE ME.,8U1

main87908-53481-J2supersedes 87908-53471-J2i201111-201208

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87908-53481-J3supersedes 87908-53471-J3i201111

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87908-53490-A0i201208-201308

KOREA SPEC&F SPORT,WHITE PEARL CS.,077

main87908-53490-B0i200904-201108

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87908-53490-B1i200904-201208

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87908-53490-C0i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLACK,212

main87908-53490-C1i201208-201308

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217

main87908-53490-D0i200904-201308

KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87908-53490-J0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87908-53490-J1i201208-201308

KOREA SPEC&F SPORT,BLUE ME.,8U1

main87908-53490-J2i200904-201208

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87908-53490-J3i201008-201308

KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87908-53490-K0i201208-201308

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-53470-B0i200904-201108

DK.GRAY MC.,1G0

main87909-53470-J3i201108-201111

LAPIS LAZULI MC.,8V3

main87909-53470-K0i200904-201108

CATTLEYA M.M.,9AL

main87909-53471-A1i201208

WHITE NOVA GF.,083

main87909-53450-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87909-53450-A1i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87909-53450-B2i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87909-53450-B3i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87909-53450-C1i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87909-53450-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87909-53450-J1i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87909-53450-J3i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87909-53450-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87909-53480-A0supersedes 87909-53471-A0i200904-201111

LUXURY PACKAGE,WHITE PEARL CS.,077

main87909-53480-B0i200904-201008

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87909-53480-B1supersedes 87909-53470-B1i200904-201111

LUXURY PACKAGE,SILVER M.M.,1G1

main87909-53480-B2supersedes 87909-53470-B2i201108-201111

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87909-53480-C0supersedes 87909-53471-C0i200904-201111

LUXURY PACKAGE,BLACK,212

main87909-53480-D0supersedes 87909-53471-D0i200904-201111

LUXURY PACKAGE,RED MC.CS.,3R1

main87909-53480-J0supersedes 87909-53470-J0i200904-201008

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87909-53480-J1supersedes 87909-53471-J1i200904-201111

LUXURY PACKAGE,BLUE ME.,8U1

main87909-53480-J2supersedes 87909-53470-J2i200904-201111

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87909-53480-J3i201008-201111

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87909-53480-K0i200904-201008

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87909-53481-A0supersedes 87909-53471-A0i201111

LUXURY PACKAGE,WHITE PEARL CS.,077

main87909-53481-B1supersedes 87909-53471-B1i201111-201208

LUXURY PACKAGE,SILVER M.M.,1G1

main87909-53481-B2supersedes 87909-53471-B2i201111

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87909-53481-B3supersedes 87909-53471-B3i201208

LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87909-53481-C0supersedes 87909-53471-C0i201111

LUXURY PACKAGE,BLACK,212

main87909-53481-D0supersedes 87909-53471-D0i201111

LUXURY PACKAGE,RED MC.CS.,3R1

main87909-53481-J1supersedes 87909-53471-J1i201111

LUXURY PACKAGE,BLUE ME.,8U1

main87909-53481-J2supersedes 87909-53471-J2i201111-201208

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87909-53481-J3supersedes 87909-53471-J3i201111

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87909-53490-A0i201208-201308

KOREA SPEC&F SPORT,WHITE PEARL CS.,077

main87909-53490-B0i200904-201108

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87909-53490-B1i200904-201208

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87909-53490-C0i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLACK,212

main87909-53490-C1i201208-201308

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217

main87909-53490-D0i201208-201308

KOREA SPEC&F SPORT,RED MC.CS.,3R1

main87909-53490-J0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87909-53490-J1i200904-201308

KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87909-53490-J2i200904-201208

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87909-53490-J3i201008-201308

KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87909-53490-K0i201208-201308

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-53470-B0i200904-201108

DK.GRAY MC.,1G0

main87910-53470-B1i200904-201110

SILVER M.M.,1G1

main87910-53470-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87910-53470-J2i200904-201110

SILVERY BLUE ME.,8U9

main87910-53470-K0i200904-201008

CATTLEYA M.M.,9AL

main87910-53471-A1i201208-201507

WHITE NOVA GF.,083

main87910-53480-A0i200904-200911

LUXURY PACKAGE,WHITE PEARL CS.,077

main87910-53480-B0i200904-200911

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87910-53480-B1i200904-200911

LUXURY PACKAGE,SILVER M.M.,1G1

main87910-53480-C0i200904-200911

LUXURY PACKAGE,BLACK,212

main87910-53480-D0i200904-200911

LUXURY PACKAGE,RED MC.CS.,3R1

main87910-53480-J0i200904-200911

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87910-53480-J1i200904-200911

LUXURY PACKAGE,BLUE ME.,8U1

main87910-53480-J2i200904-200911

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87910-53480-K0i200904-200911

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87910-53490-A0i200904-201008

KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87910-53490-B0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87910-53490-B1i200904-201008

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87910-53490-C0i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLACK,212

main87910-53490-D0i200904-201008

KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87910-53490-J0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87910-53490-J1i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87910-53490-J2i200904-201008

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87910-53490-K0i200904-201008

KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87910-53570-A0i200911-201110

LUXURY PACKAGE,WHITE PEARL CS.,077

main87910-53570-B0i200911-201108

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87910-53570-B1i200911-201110

LUXURY PACKAGE,SILVER M.M.,1G1

main87910-53570-B2supersedes 87910-53470-B2i201108-201110

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87910-53570-C0i200911-201110

LUXURY PACKAGE,BLACK,212

main87910-53570-D0i200911-201110

LUXURY PACKAGE,RED MC.CS.,3R1

main87910-53570-J0i200911-201008

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87910-53570-J1i200911-201110

LUXURY PACKAGE,BLUE ME.,8U1

main87910-53570-J2i200911-201110

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87910-53570-J3supersedes 87910-53470-J3i201008-201110

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87910-53570-K0i200911-201008

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87910-53571-A0supersedes 87910-53471-A0i201111-201507

LUXURY PACKAGE,WHITE PEARL CS.,077

main87910-53571-B1supersedes 87910-53471-B1i201111-201208

LUXURY PACKAGE,SILVER M.M.,1G1

main87910-53571-B2supersedes 87910-53471-B2i201111-201507

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87910-53571-B3supersedes 87910-53471-B3i201208-201507

LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87910-53571-C0supersedes 87910-53471-C0i201111-201507

LUXURY PACKAGE,BLACK,212

main87910-53571-D0supersedes 87910-53471-D0i201111-201507

LUXURY PACKAGE,RED MC.CS.,3R1

main87910-53571-J1supersedes 87910-53471-J1i201111-201507

LUXURY PACKAGE,BLUE ME.,8U1

main87910-53571-J2supersedes 87910-53471-J2i201111-201208

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87910-53571-J3supersedes 87910-53471-J3i201111-201507

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87910-53660-A0i201208-201308

KOREA SPEC&F SPORT,WHITE PEARL CS.,077

main87910-53660-A1i201208-201308

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87910-53660-B0i201008-201208

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87910-53660-B1i201108-201308

KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87910-53660-B2i201008-201108

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87910-53660-B3i201208-201308

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87910-53660-C0i201008-201308

KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87910-53660-D0i201208-201308

KOREA SPEC&F SPORT,RED MC.CS.,3R1

main87910-53660-J0i201208-201308

KOREA SPEC&F SPORT,BLUE ME.,8U1

main87910-53660-J1i201008-201208

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87910-53660-J2i201008-201308

KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87910-53660-K0i201008-201308

KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87910-53860-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87910-53860-A1i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87910-53860-B0i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87910-53860-B1i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87910-53860-C0i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87910-53860-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87910-53860-J0i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87910-53860-J1i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87910-53860-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-53410-A0i200904-201209

WHITE PEARL CS.,077

main8791A-53410-A3i201208-201209

WHITE NOVA GF.,083

main8791A-53410-B1i200904-201208

SILVER M.M.,1G1

main8791A-53410-B2i201108-201209

MERCURY GRAY MC.,1H9

main8791A-53410-B4i201208-201209

PLATINUM SILVER ME.,1J4

main8791A-53410-C0i200904-201209

BLACK,212

main8791A-53410-D0i200904-201209

RED MC.CS.,3R1

main8791A-53410-J2i201008-201209

LAPIS LAZULI MC.,8V3

main8791A-53410-J3i200904-201209

BLUE ME.,8U1

main8791A-53410-J4i200904-201208

SILVERY BLUE ME.,8U9

main8791A-53411-A0i201209

WHITE PEARL CS.,077

main8791A-53411-A3i201209

WHITE NOVA GF.,083

main8791A-53411-B2i201209

MERCURY GRAY MC.,1H9

main8791A-53411-B4i201209

PLATINUM SILVER ME.,1J4

main8791A-53411-C0i201209

BLACK,212

main8791A-53411-D0i201209

RED MC.CS.,3R1

main8791A-53411-J2i201209

LAPIS LAZULI MC.,8V3

main8791A-53411-J3i201209

BLUE ME.,8U1

main8791A-53391-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main8791A-53391-A2i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main8791A-53391-B2i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main8791A-53391-B3i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main8791A-53391-C1i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8791A-53391-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main8791A-53391-J2i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main8791A-53391-J3i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main8791A-53391-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main8791A-53410-B0i200904-201111

LUXURY PACKAGE,DK.GRAY MC.,1G0

main8791A-53410-C1i201008-201209

KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8791A-53410-J1i200904-201111

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main8791A-53410-K0i200904-201111

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main8791A-53411-C1i201209-201308

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8791A-53411-K0i201209-201308

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

87931OUTER MIRROR, RH

main87931-53400i200904

main87931-33760i201008-201308

KOREA SPEC&LUXURY PACKAGE

main87931-53250i201308-201408

KOREA SPEC&F SPORT; KOREA SPEC&LUXURY PACKAGE

main87931-53410i200904-200911

LUXURY PACKAGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-53470-B0i200904-201108

DK.GRAY MC.,1G0

main87940-53470-B1i200904-201110

SILVER M.M.,1G1

main87940-53470-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87940-53470-J2i200904-201110

SILVERY BLUE ME.,8U9

main87940-53470-K0i200904-201008

CATTLEYA M.M.,9AL

main87940-53471-A1i201208-201507

WHITE NOVA GF.,083

main87940-53480-A0i200904-200911

LUXURY PACKAGE,WHITE PEARL CS.,077

main87940-53480-B0i200904-200911

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87940-53480-B1i200904-200911

LUXURY PACKAGE,SILVER M.M.,1G1

main87940-53480-C0i200904-200911

LUXURY PACKAGE,BLACK,212

main87940-53480-D0i200904-200911

LUXURY PACKAGE,RED MC.CS.,3R1

main87940-53480-J0i200904-200911

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87940-53480-J1i200904-200911

LUXURY PACKAGE,BLUE ME.,8U1

main87940-53480-J2i200904-200911

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87940-53480-K0i200904-200911

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87940-53490-A0i200904-201008

KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87940-53490-B0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87940-53490-B1i200904-201008

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87940-53490-C0i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLACK,212

main87940-53490-D0i200904-201008

KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87940-53490-J0i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87940-53490-J1i200904-201008

KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87940-53490-J2i200904-201008

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87940-53490-K0i200904-201008

KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87940-53570-A0i200911-201110

LUXURY PACKAGE,WHITE PEARL CS.,077

main87940-53570-B0i200911-201108

LUXURY PACKAGE,DK.GRAY MC.,1G0

main87940-53570-B1i200911-201110

LUXURY PACKAGE,SILVER M.M.,1G1

main87940-53570-B2supersedes 87940-53470-B2i201108-201110

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87940-53570-C0i200911-201110

LUXURY PACKAGE,BLACK,212

main87940-53570-D0i200911-201110

LUXURY PACKAGE,RED MC.CS.,3R1

main87940-53570-J0i200911-201008

LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main87940-53570-J1i200911-201110

LUXURY PACKAGE,BLUE ME.,8U1

main87940-53570-J2i200911-201110

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87940-53570-J3supersedes 87940-53470-J3i201008-201110

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87940-53570-K0i200911-201008

LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87940-53571-A0supersedes 87940-53471-A0i201111-201507

LUXURY PACKAGE,WHITE PEARL CS.,077

main87940-53571-B1supersedes 87940-53471-B1i201111-201208

LUXURY PACKAGE,SILVER M.M.,1G1

main87940-53571-B2supersedes 87940-53471-B2i201111-201507

LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87940-53571-B3supersedes 87940-53471-B3i201208-201507

LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87940-53571-C0supersedes 87940-53471-C0i201111-201507

LUXURY PACKAGE,BLACK,212

main87940-53571-D0supersedes 87940-53471-D0i201111-201507

LUXURY PACKAGE,RED MC.CS.,3R1

main87940-53571-J1supersedes 87940-53471-J1i201111-201507

LUXURY PACKAGE,BLUE ME.,8U1

main87940-53571-J2supersedes 87940-53471-J2i201111-201208

LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87940-53571-J3supersedes 87940-53471-J3i201111-201507

LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87940-53660-A0i201208-201308

KOREA SPEC&F SPORT,WHITE PEARL CS.,077

main87940-53660-A1i201208-201308

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87940-53660-B0i201008-201208

KOREA SPEC&LUXURY PACKAGE,SILVER M.M.,1G1

main87940-53660-B1i201208-201308

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9

main87940-53660-B2i201008-201108

KOREA SPEC&LUXURY PACKAGE,DK.GRAY MC.,1G0

main87940-53660-B3i201208-201308

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87940-53660-C0i201008-201308

KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87940-53660-D0i201208-201308

KOREA SPEC&F SPORT,RED MC.CS.,3R1

main87940-53660-J0i201208-201308

KOREA SPEC&F SPORT,BLUE ME.,8U1

main87940-53660-J1i201008-201208

KOREA SPEC&LUXURY PACKAGE,SILVERY BLUE ME.,8U9

main87940-53660-J2i201008-201308

KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87940-53660-K0i201008-201308

KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main87940-53860-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main87940-53860-A1i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main87940-53860-B0i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main87940-53860-B1i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main87940-53860-C0i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main87940-53860-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main87940-53860-J0i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main87940-53860-J1i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main87940-53860-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-53410-A0i200904-201209

WHITE PEARL CS.,077

main8794A-53410-A3i201208-201209

WHITE NOVA GF.,083

main8794A-53410-B1i200904-201208

SILVER M.M.,1G1

main8794A-53410-B2i201108-201209

MERCURY GRAY MC.,1H9

main8794A-53410-B4i201208-201209

PLATINUM SILVER ME.,1J4

main8794A-53410-C0i200904-201209

BLACK,212

main8794A-53410-D0i200904-201209

RED MC.CS.,3R1

main8794A-53410-J2i201008-201209

LAPIS LAZULI MC.,8V3

main8794A-53410-J3i200904-201209

BLUE ME.,8U1

main8794A-53410-J4i200904-201208

SILVERY BLUE ME.,8U9

main8794A-53411-A0i201209

WHITE PEARL CS.,077

main8794A-53411-A3i201209

WHITE NOVA GF.,083

main8794A-53411-B2i201209

MERCURY GRAY MC.,1H9

main8794A-53411-B4i201209

PLATINUM SILVER ME.,1J4

main8794A-53411-C0i201209

BLACK,212

main8794A-53411-D0i201209

RED MC.CS.,3R1

main8794A-53411-J2i201209

LAPIS LAZULI MC.,8V3

main8794A-53411-J3i201209

BLUE ME.,8U1

main8794A-53391-A0i201308-201408

KOREA SPEC&F SPORT,WHITE PEARL CS.,077; KOREA SPEC&LUXURY PACKAGE,WHITE PEARL CS.,077

main8794A-53391-A2i201308-201408

KOREA SPEC&F SPORT,WHITE NOVA GF.,083; KOREA SPEC&LUXURY PACKAGE,WHITE NOVA GF.,083

main8794A-53391-B2i201308-201408

KOREA SPEC&F SPORT,MERCURY GRAY MC.,1H9; KOREA SPEC&LUXURY PACKAGE,MERCURY GRAY MC.,1H9

main8794A-53391-B3i201308-201408

KOREA SPEC&F SPORT,PLATINUM SILVER ME.,1J4; KOREA SPEC&LUXURY PACKAGE,PLATINUM SILVER ME.,1J4

main8794A-53391-C1i201308-201408

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8794A-53391-D0i201308-201408

KOREA SPEC&F SPORT,RED MC.CS.,3R1; KOREA SPEC&LUXURY PACKAGE,RED MC.CS.,3R1

main8794A-53391-J2i201308-201408

KOREA SPEC&F SPORT,LAPIS LAZULI MC.,8V3; KOREA SPEC&LUXURY PACKAGE,LAPIS LAZULI MC.,8V3

main8794A-53391-J3i201308-201408

KOREA SPEC&F SPORT,BLUE ME.,8U1; KOREA SPEC&LUXURY PACKAGE,BLUE ME.,8U1

main8794A-53391-K0i201308-201408

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

main8794A-53410-B0i200904-201111

LUXURY PACKAGE,DK.GRAY MC.,1G0

main8794A-53410-C1i201008-201209

KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8794A-53410-J1i200904-201008

KOREA SPEC&LUXURY PACKAGE,DK.BLUE MC. CC.,8U0

main8794A-53410-K0i201208-201209

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL

main8794A-53411-C1i201209-201308

KOREA SPEC&F SPORT,STARLIGHT BLACK GF.,217; KOREA SPEC&LUXURY PACKAGE,STARLIGHT BLACK GF.,217

main8794A-53411-K0i201209-201308

KOREA SPEC&F SPORT,CATTLEYA M.M.,9AL; KOREA SPEC&LUXURY PACKAGE,CATTLEYA M.M.,9AL

87961MIRROR OUTER, LH

main87961-53400i200904

main87961-33740i201208-201308

KOREA SPEC&F SPORT

main87961-53410i200904-200911

LUXURY PACKAGE

main87961-53860i201308-201408

KOREA SPEC&F SPORT; KOREA SPEC&LUXURY PACKAGE

9017906146

main90179-06146

13 parts on this diagram · 1 diagram in section
