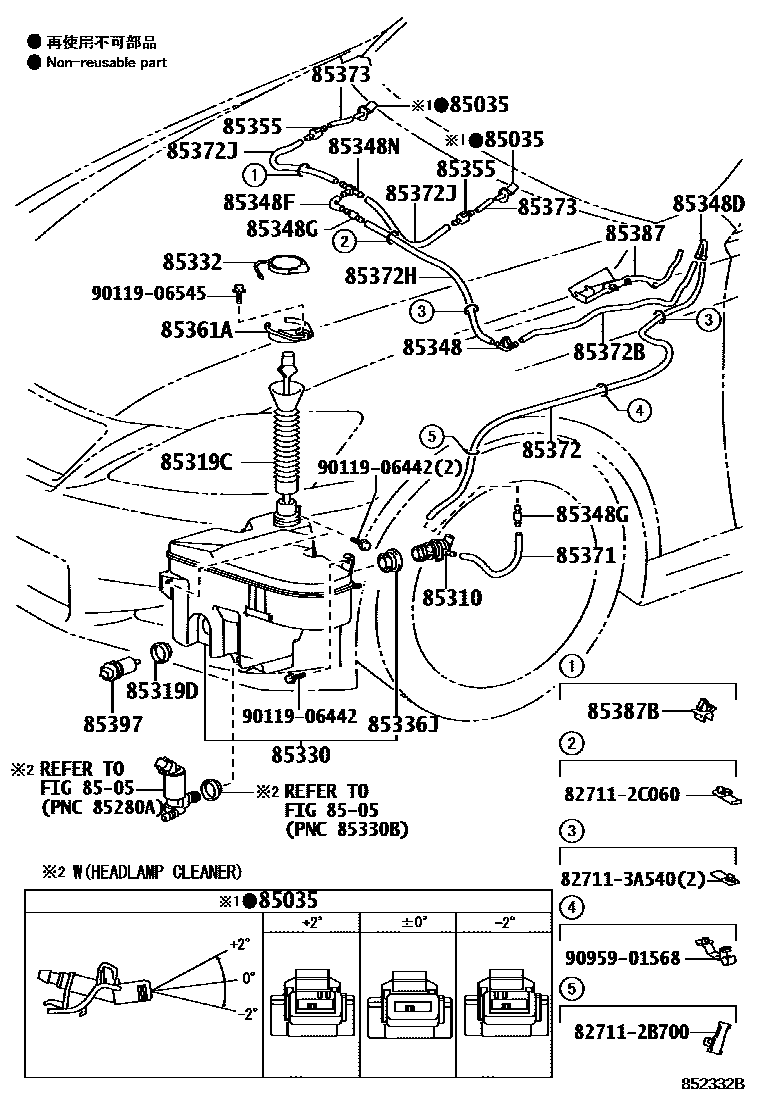

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8505HEADLAMP CLEANER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HEAD LAMP CLEANER-WITH
85332CAP, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150); L=1450(*H,L=150),HEAD LAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1330)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=450)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=600)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1000(*H,L=520)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=60)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
85397SWITCH ASSY,LEVEL WARNING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B700
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C060
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
9011906442
main90119-06442
9011906545
main90119-06545
9095901568
main90959-01568
30 parts on this diagram · 2 diagrams in section
